Repair Procedure: Procedure

  1. A.

    ■ Sub-Procedure

    NOTE:
    • Use a commercially available strut spring compressor.
    • Do not compress the spring excessively.
    • Do not compress the spring more than necessary to remove the nut.

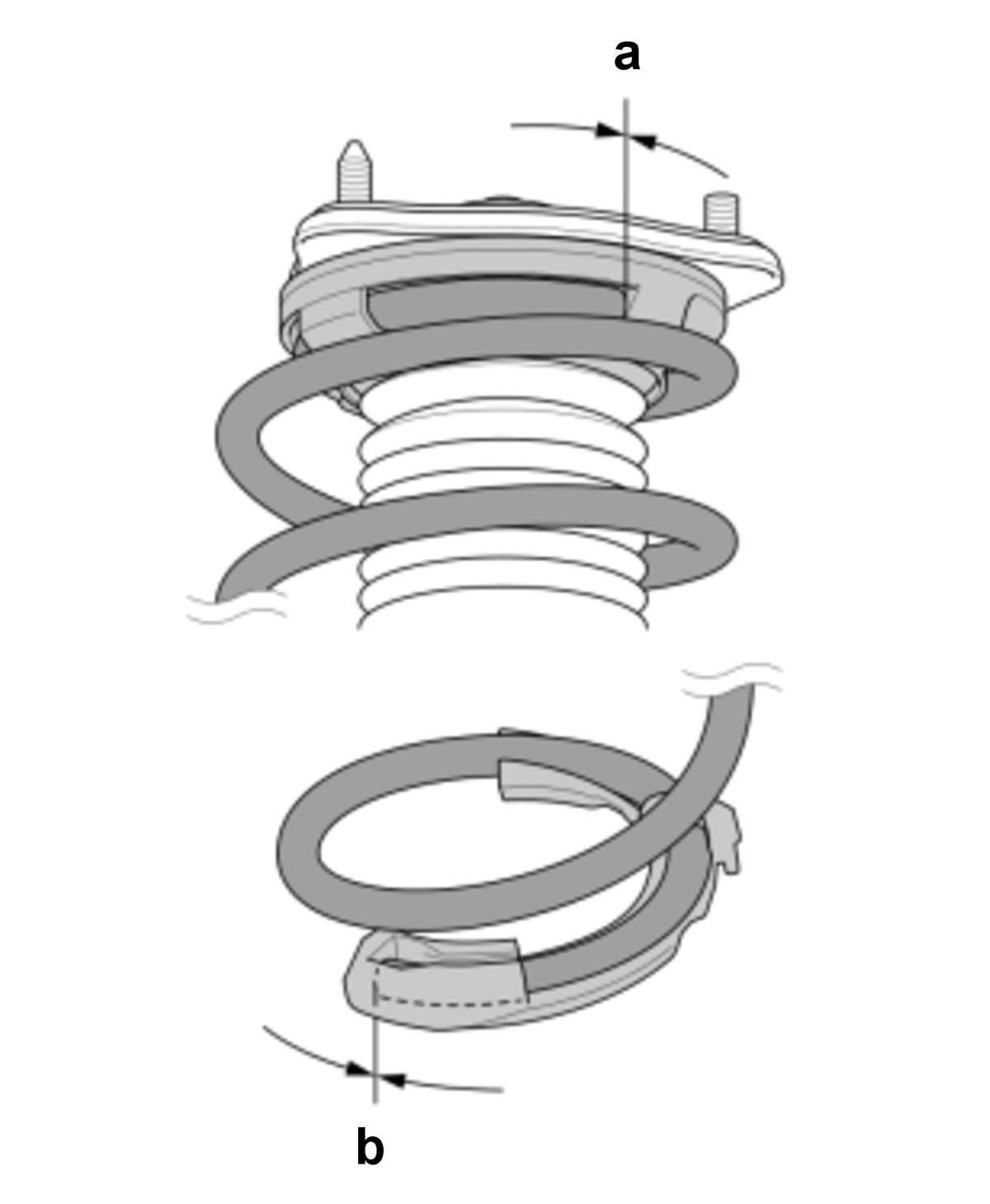

    GHH339534Courtesy of HONDA, U.S.A., INC.

    • Installation

    ■ Clearance Details

    Specifications
    a: No Clearance
    b: No Clearance

    ■ After Installation

  2. B.

    ■ Sub-Procedure

    NOTE:
    • Use a commercially available strut spring compressor.
    • Do not compress the spring excessively.
    • Do not compress the spring more than necessary to remove the nut.

    • Removal

    • Refer to the figure 1.

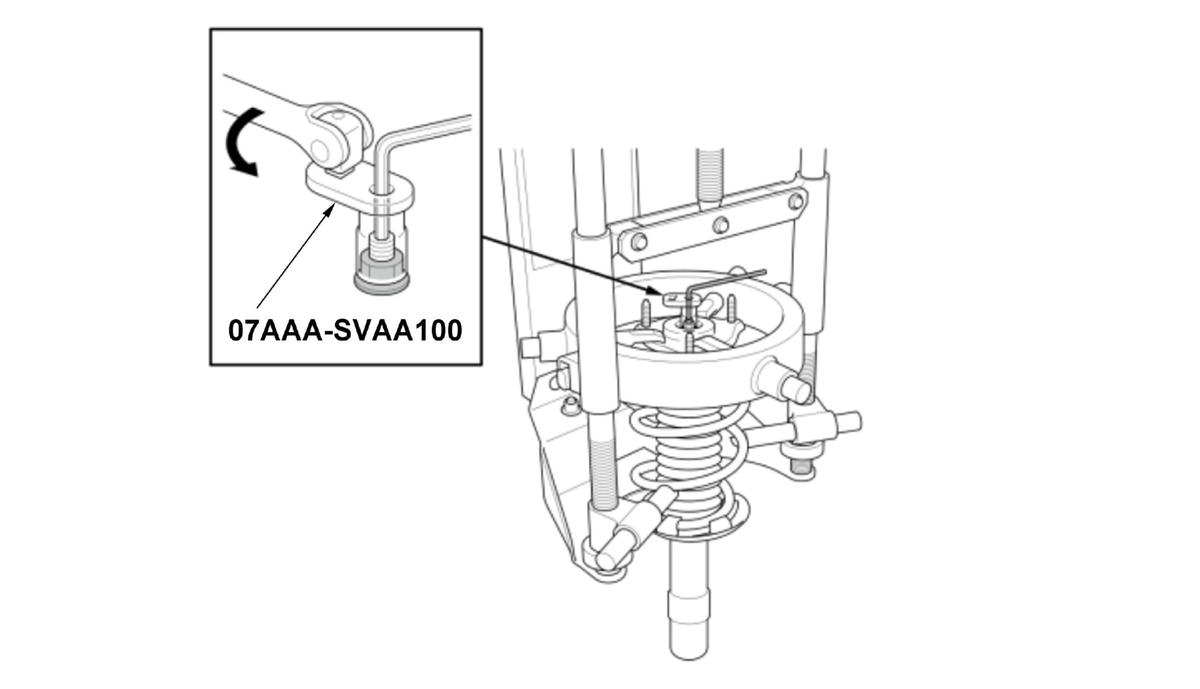

    Figure 1

    GHH339535Courtesy of HONDA, U.S.A., INC.

    • Installation

    • Make sure that the dust cover (a) is properly positioned into the raised portion (b) of the damper unit. (Figure 2)
    • Align the angle of the stud on the damper mounting base.

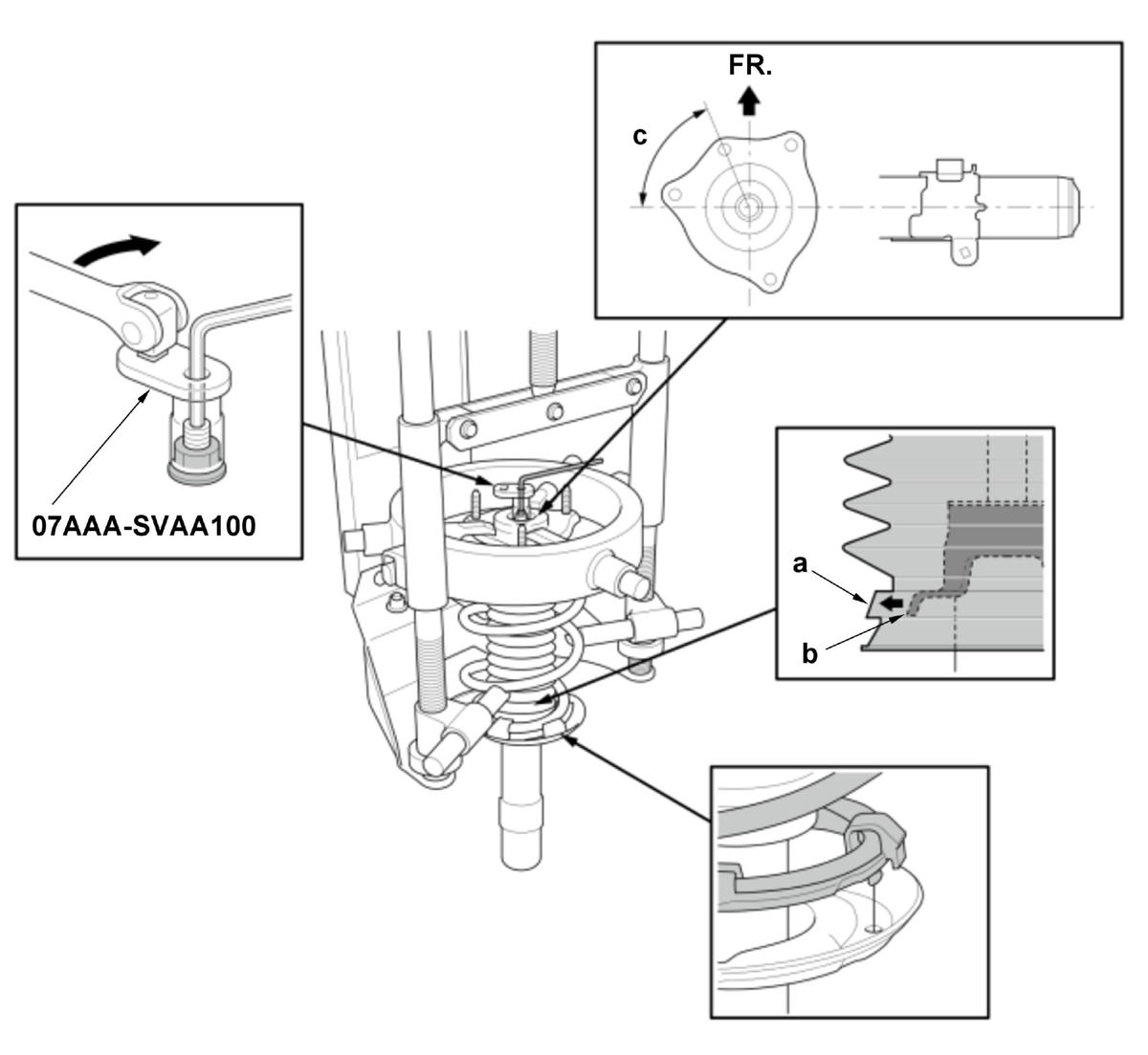

    Damper Unit Details (Figure 2)

    Position Specifications
    c 67 deg.+/-3 deg.

    Figure 2

    GHH339536Courtesy of HONDA, U.S.A., INC.

    ■ After Installation
