Repair Procedure: Procedure

  1. A.

    ■ Sub-Procedure

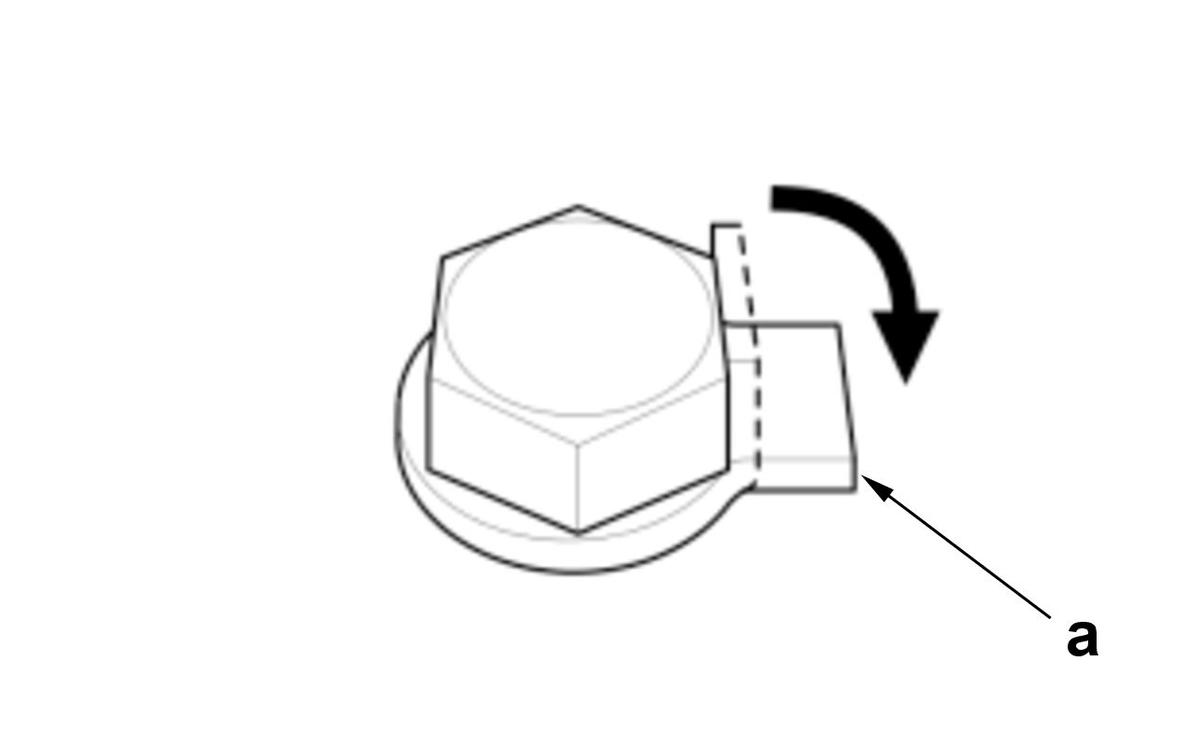

    GHH340341Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Pry down the lock tab (a) of the washer.
  2. B.

    ■ Sub-Procedure

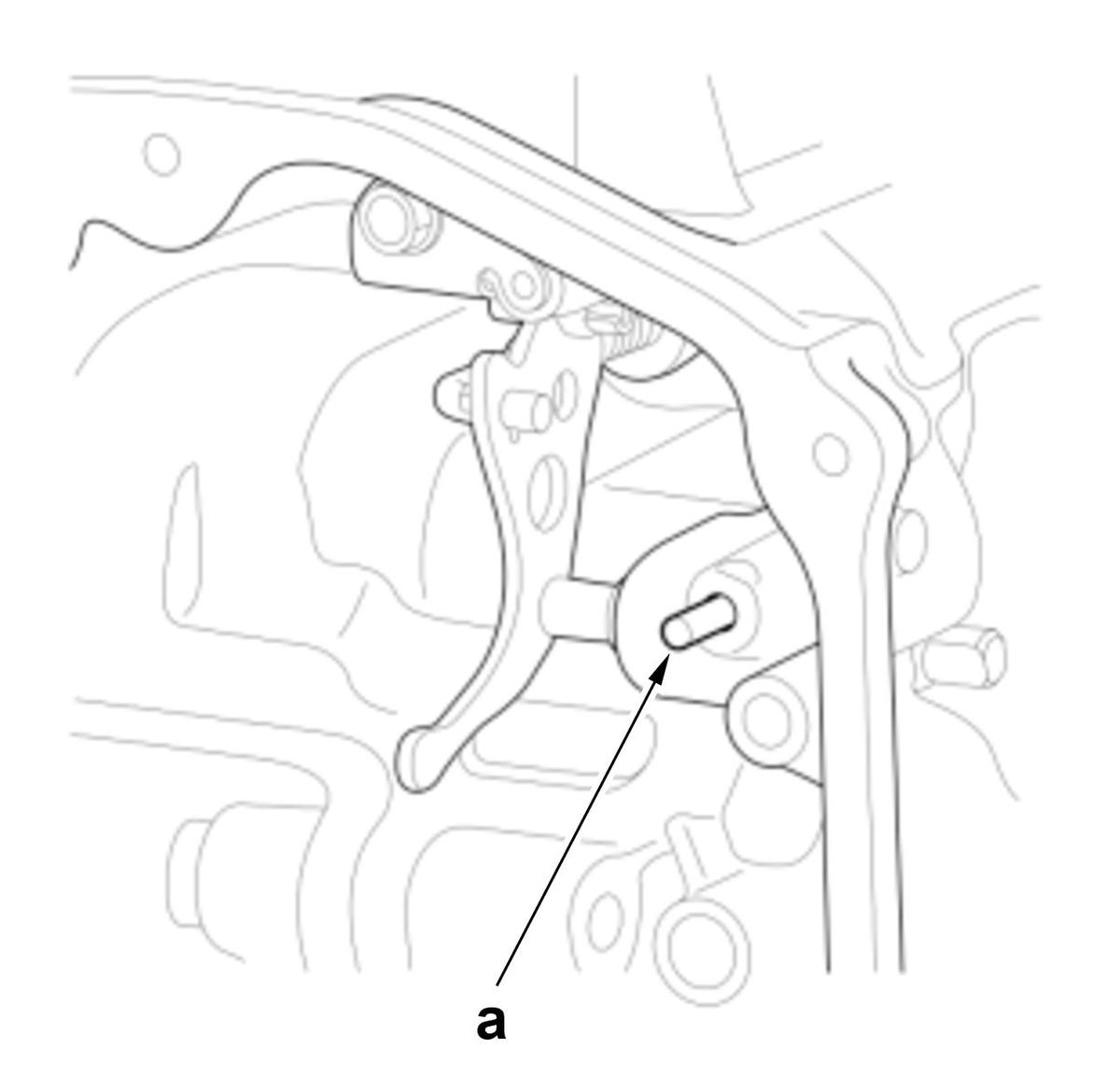

    GHH340342Courtesy of HONDA, U.S.A., INC.

    • Installation

    • Make sure the roller (a) is fully installed to the bottom as shown.
