1. ACC Combination Switch - Test

   ■ Preconditions

   • Steering Wheel Rear Cover Removed
   • Switch Connector Disconnected

   ■ Procedure/Specifications

   • Check the ACC combination switch according to the table. (Figure 1 and 2)
   NOTE:

   • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
   • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

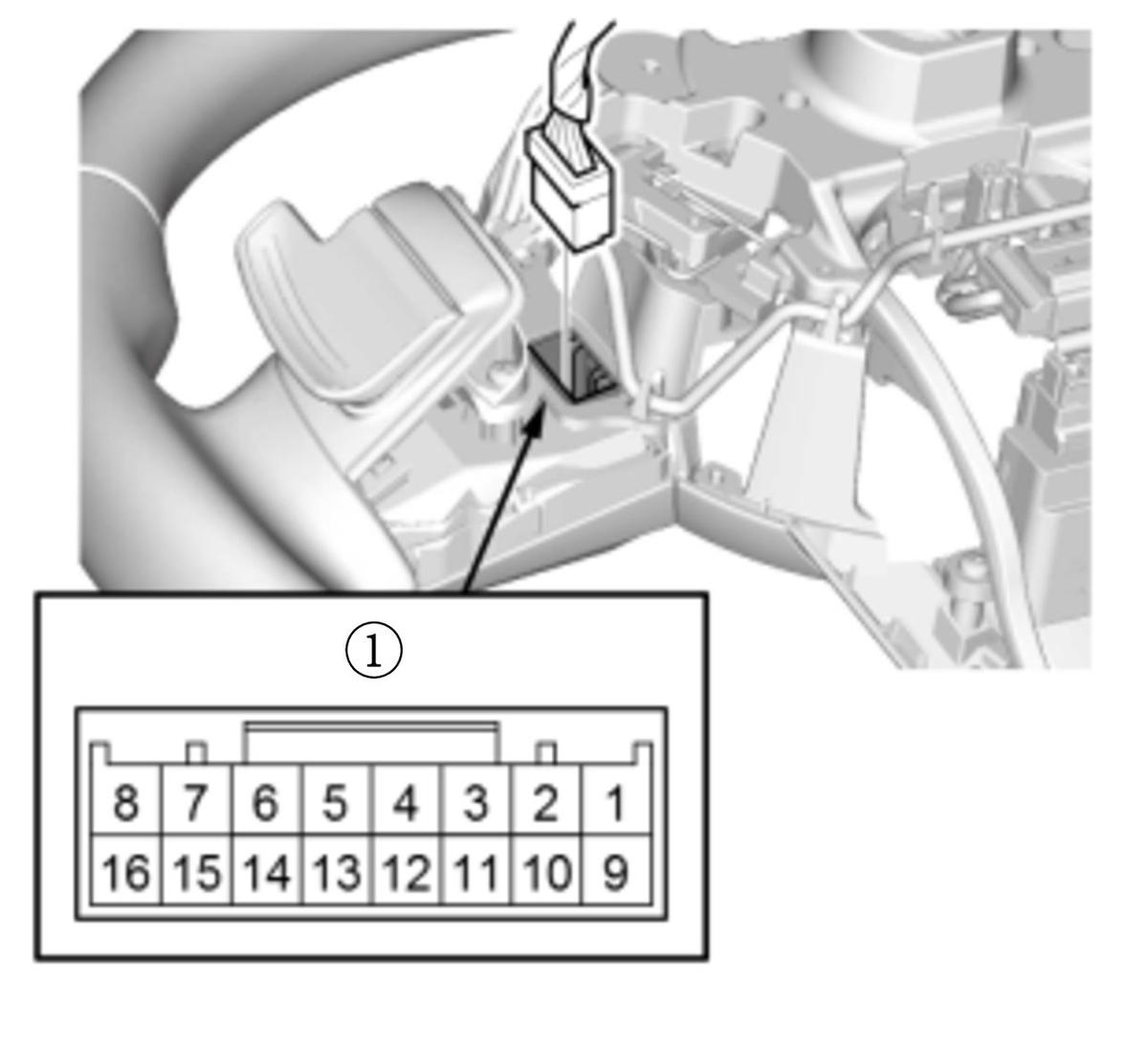

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

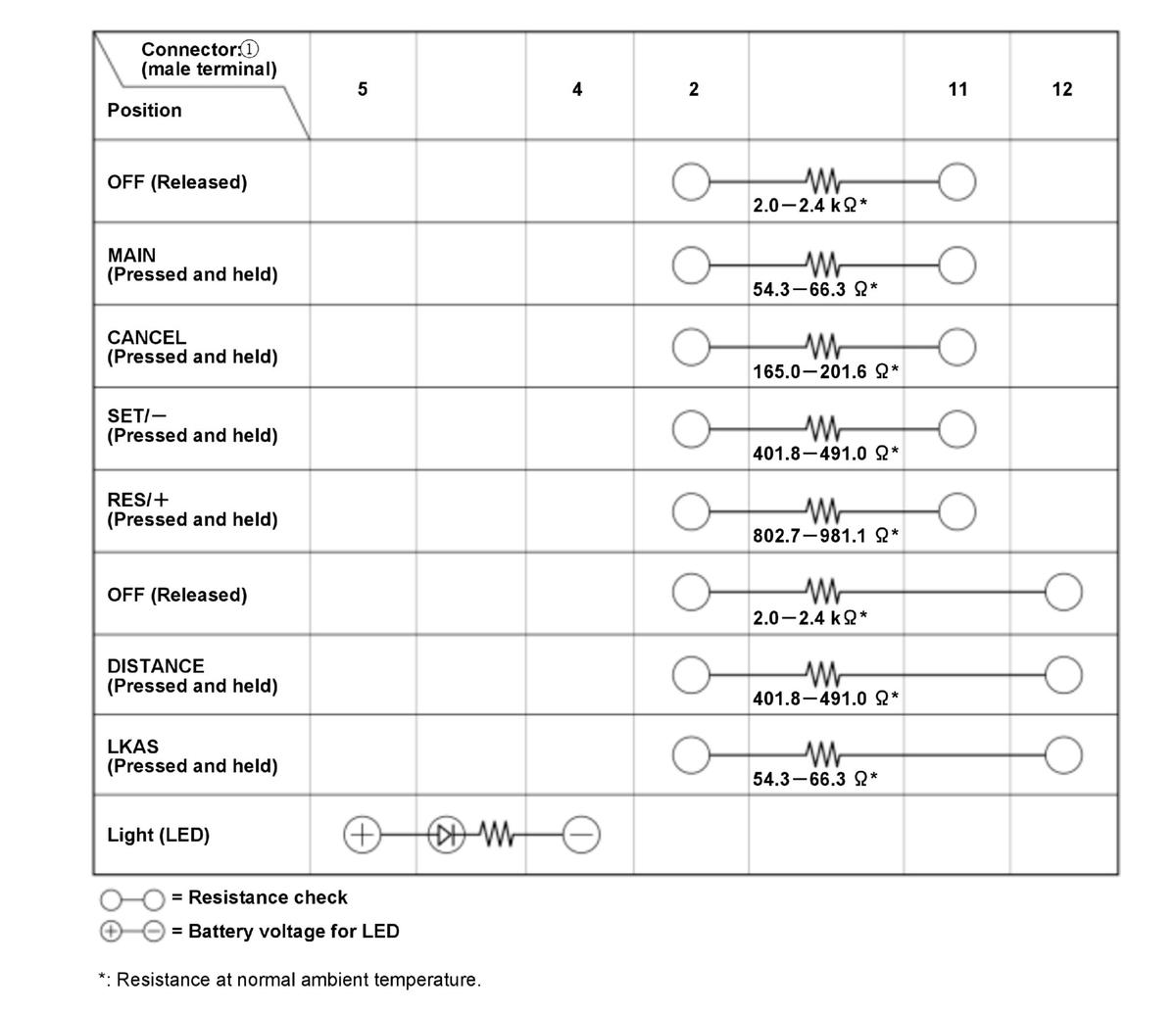

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   ■ Result

   • If the result is not as specified, replace the ACC combination switch .
