Communication (B-CAN_H), Communication (B-CAN_L) Open Wire Inspection

Test Procedure

• Preparation
  • Multi view camera unit 36P connector: disconnected
  • Parking and back-up sensor control unit 16P connector: disconnected

• Procedure
  • Perform the inspection according to the following table.

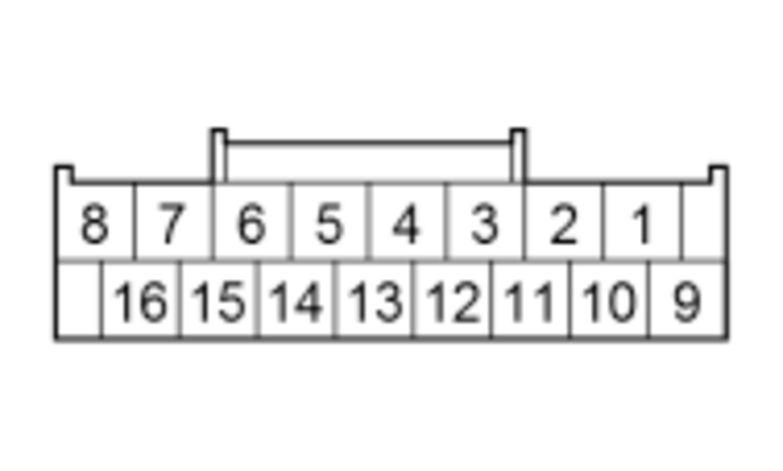

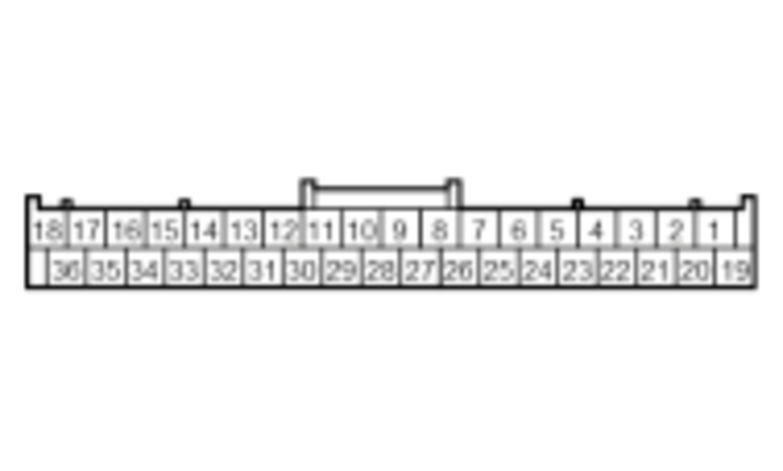

			(Disconnected) Multi view camera unit 36P connector Refer to: Multi View Camera Unit Connector for Inputs and Outputs (2019 2020 2021) or Multi View Camera Unit Connector for Inputs and Outputs (2022 2023) female terminals.	(Disconnected) Parking and back-up sensor control unit 16P connector Refer to: Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs (2019 2020 2021) or Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs (2022 2023) female terminals.
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	B-CAN_H open wire inspection	OFF			There is less than 1 Ω
	B-CAN_L open wire inspection	OFF			There is less than 1 Ω

Results

• If abnormal, there is a problem in the circuit.
• If normal, there is a problem with the parking and back-up sensor control unit.
