Heated Steering Wheel Temperature Sensor Test: Test

How to use this Service Information .

NOTE:

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
The heated steering wheel temperature sensor is built into the steering wheel.

Steering Heater - Test
■ Preconditions
- Driver's Airbag Removed
Figure 1

Courtesy of HONDA, U.S.A., INC.

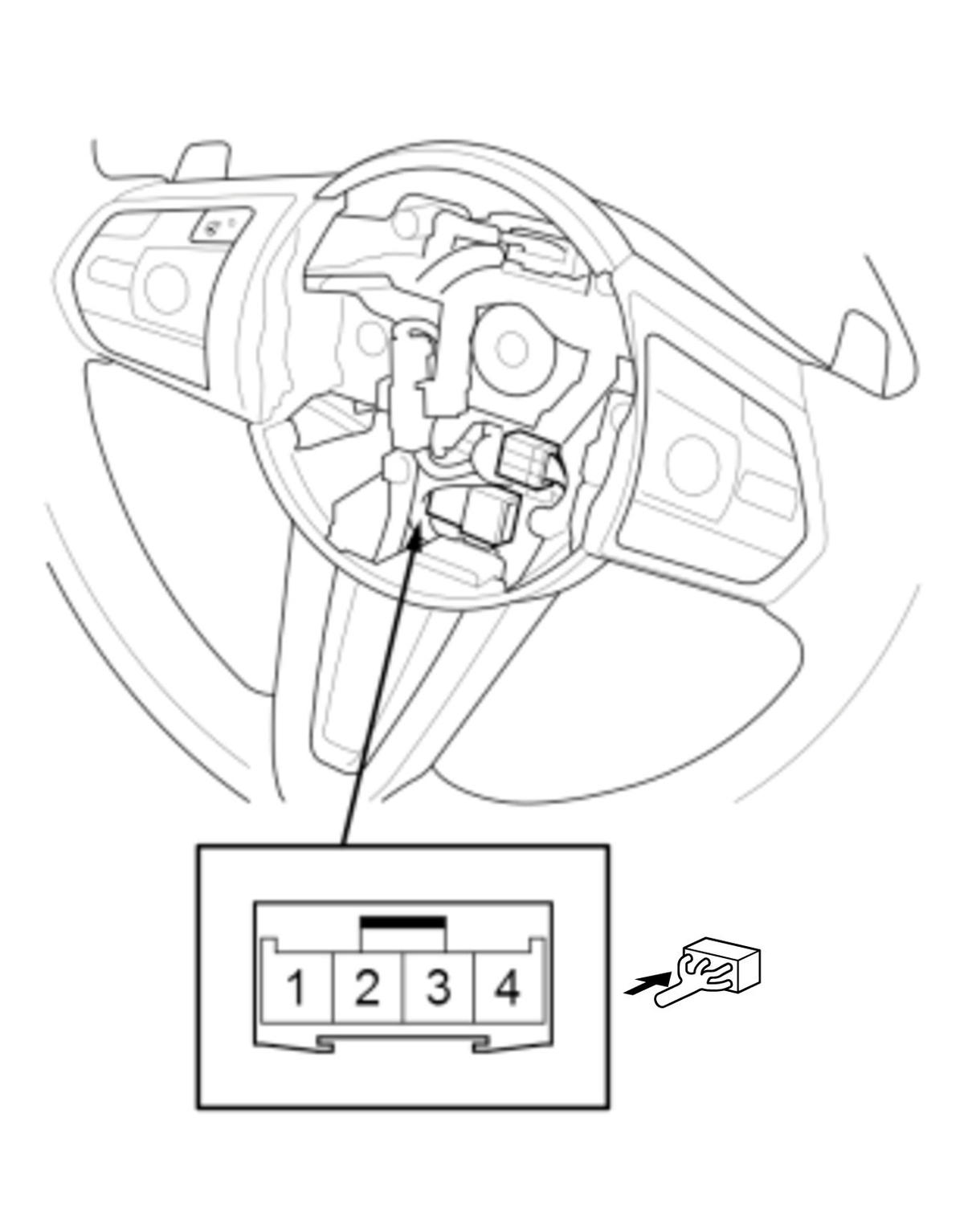

Figure 2

Courtesy of HONDA, U.S.A., INC.

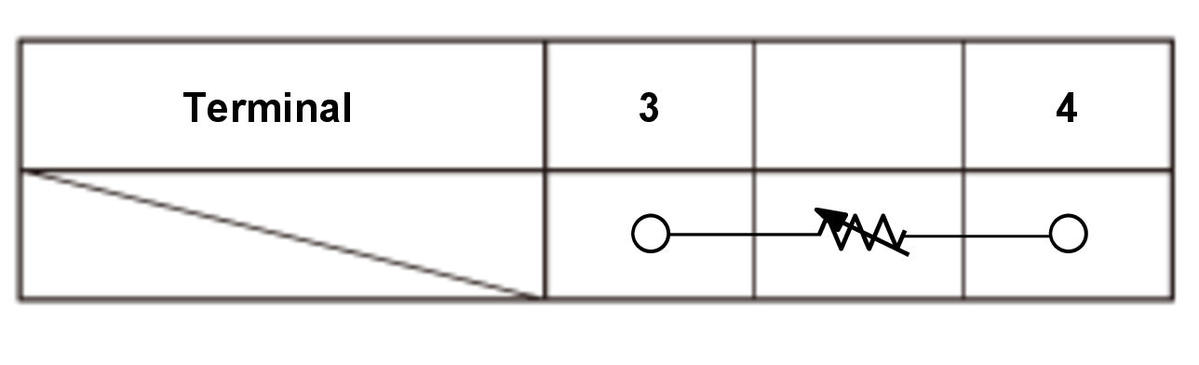

Figure 3

Courtesy of HONDA, U.S.A., INC.

■ Procedure/Specifications

1. Measure the resistance between the terminals according to the table. (Figure 1, 2, and 3)

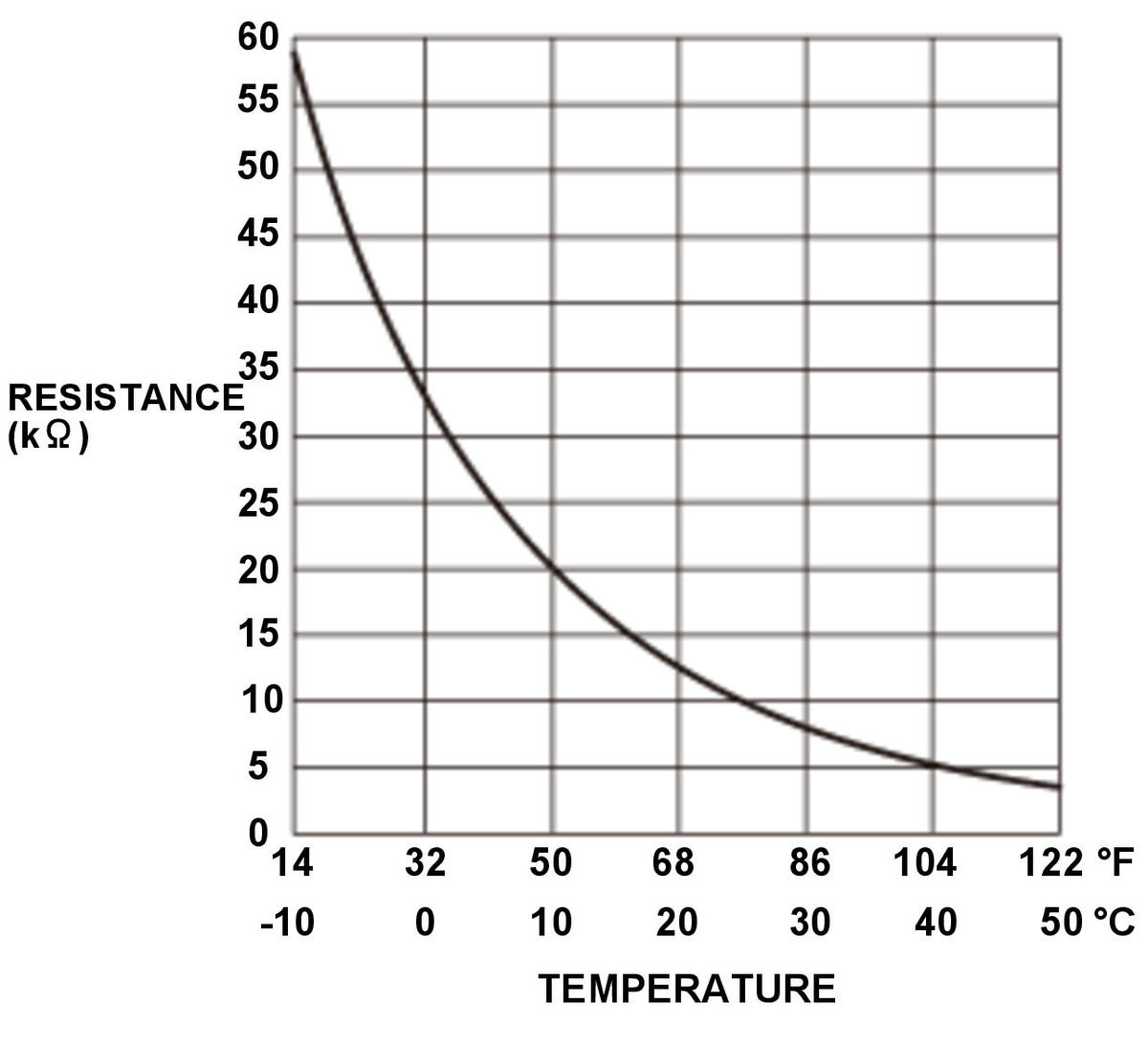

2. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.

■ Result
- If the result is not as specified, replace the steering wheel .
