Transfer Assembly Fluid Replacement and Level Check: Check

■ Preconditions

• Engine Warmed Up (the radiator fan comes on twice)
• Undercover Area Parts Removed
  • Engine Undercover
  • Rear Engine Undercover (With Rear Engine Undercover)

■ Procedure/Specifications

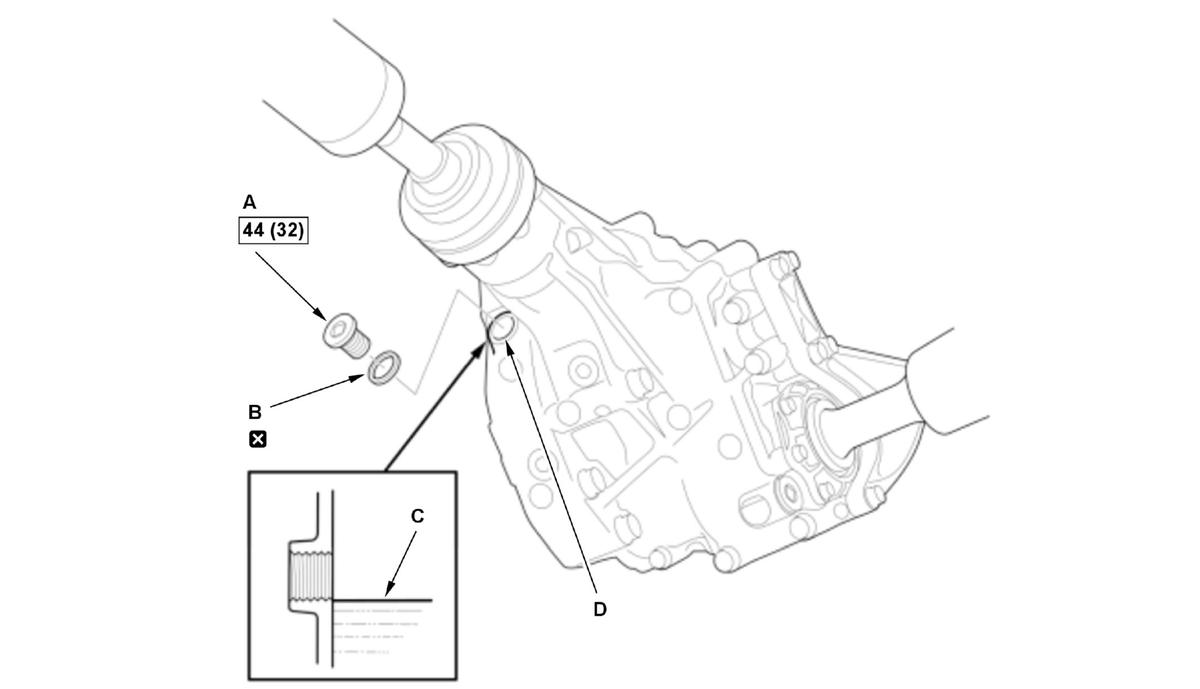

1. Remove the filler plug (A) with the sealing washer (B).

Courtesy of HONDA, U.S.A., INC.

2. Make sure the transfer assembly fluid level is at the proper level (C).

Normal Conditions

3. If necessary, add the recommended fluid through the filler plug hole (D) until the fluid overflows.

Transfer Assembly Fluid Type

4. Install the filler plug with a new sealing washer.

■ Result

• If the transfer assembly fluid level is below the proper level, check for fluid leaks at the transfer assembly. If a problem is found, fix it before filling the transmission with the transfer assembly fluid.
