Exploded View
For replacement of components listed below, see Repair Procedure .

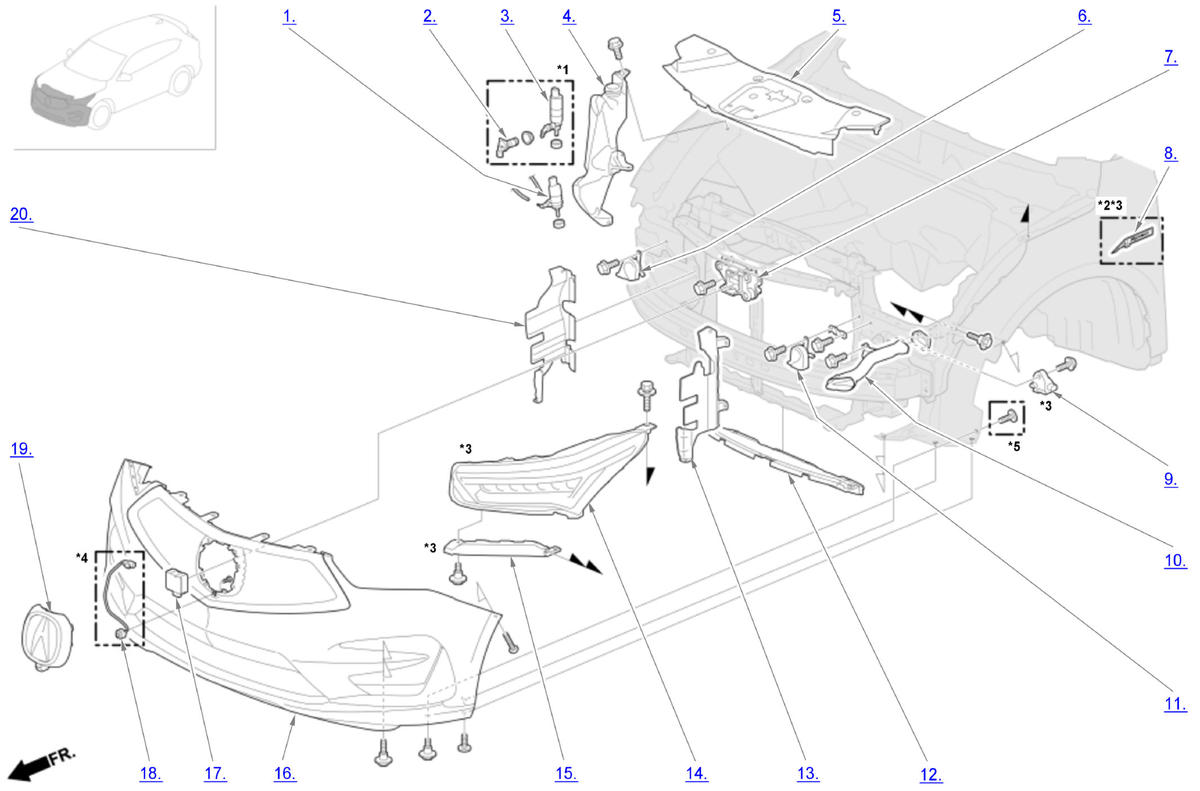

| *1: With headlight washer *2: A-SPEC type *3: Part(s) are shown for one side only as the procedure is the same for both sides. *4: With multi view camera system *5:'22-23 |

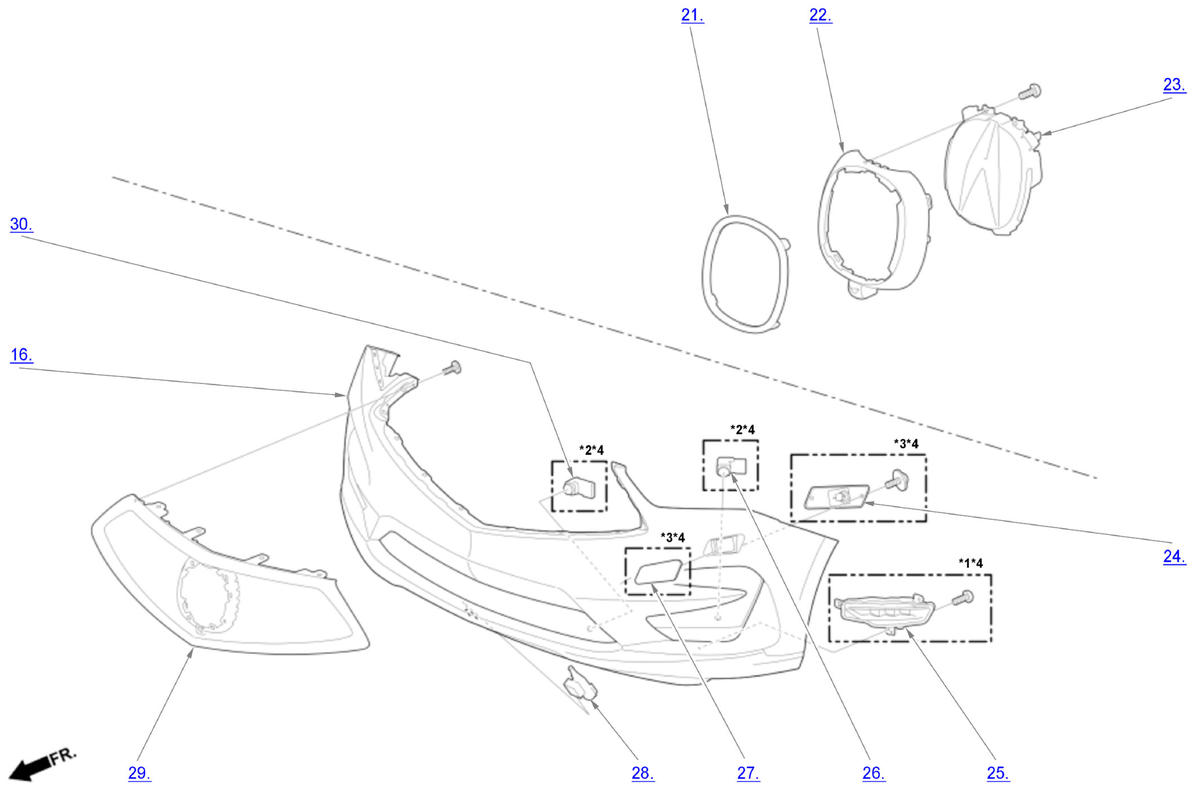

| *1: With fog light *2: With parking and back-up sensor system *3: With headlight washer *4: Part(s) are shown for one side only as the procedure is the same for both sides. |
Front Bumper Area Components
| Component Name | Callout |
|---|---|
| Windshield/Rear Window Washer Motor | 1 |
| Washer Level Sensor | 2 |
| Headlight Washer Motor | 3 |
| Washer Reservoir | 4 |
| Front Grille Cover | 5 |
| Horn (HI) | 6 |
| Millimeter Wave Radar Bracket | 7 |
| Front A Spec Emblem | 8 |
| Front Impact Sensor | 9 |
| 12 Volt Battery Duct B | 10 |
| Horn (LO) | 11 |
| Lower Front Bumper Air Screen | 12 |
| Front Bumper Air Screen | 13 |
| Headlight | 14 |
| Corner Upper Beam | 15 |
| Front Bumper | 16 |
| Millimeter Wave Radar | 17 |
| Multi View Front Camera | 18 |
| Front "A" Emblem Assembly | 19 |
| Front Bumper Air Screen | 20 |
| Front Emblem Ring | 21 |
| Front Grille Emblem Base | 22 |
| Front "A" Emblem | 23 |
| Headlight Washer Nozzle | 24 |
| Fog Light | 25 |
| Front Corner Sensor | 26 |
| Headlight Washer Nozzle Cover | 27 |
| Outside Air Temperature Sensor | 28 |
| Front Grille | 29 |
| Front Center Sensor | 30 |
