Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With 16 speakers/With 12 speakers *2: Part(s) are shown for one side only as the procedure is the same for both sides. |
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |

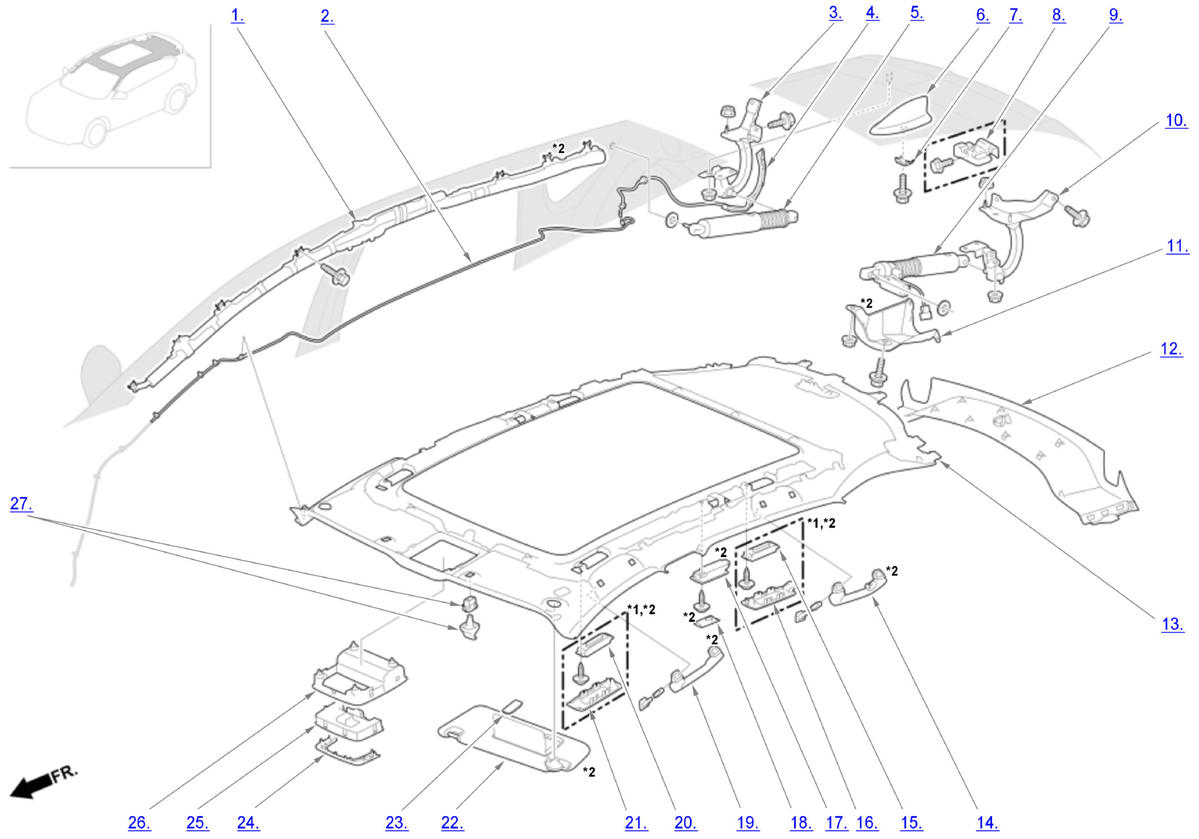

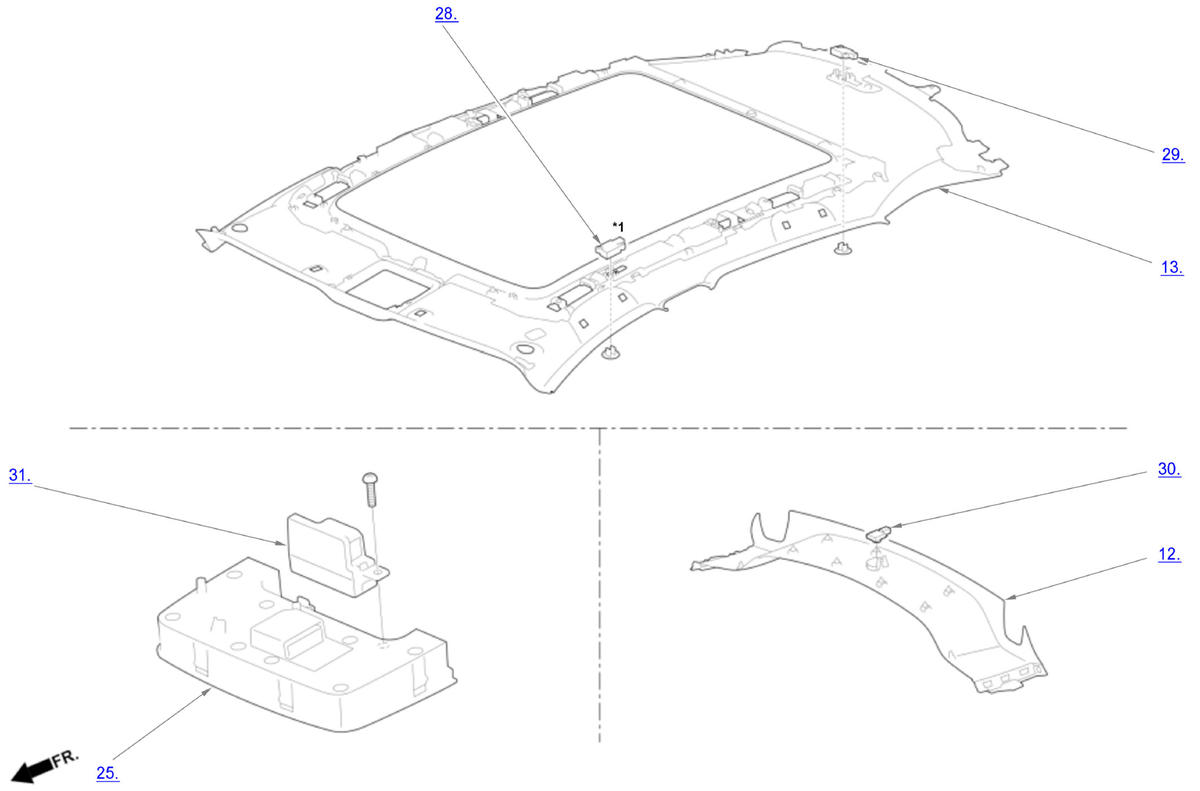

Headliner Area Components
| Component Name | Callout |
|---|---|
| Side Curtain Airbag | 1 |
| Washer Tube | 2 |
| Tailgate Hinge | 3 |
| Washer Tube Hinge Guide | 4 |
| Support Strut (without motor) | 5 |
| Roof Antenna | 6 |
| Capture Washer | 7 |
| 2-Way Transceiver | 8 |
| Support Strut (with motor) | 9 |
| Tailgate Hinge | 10 |
| Support Strut Cover | 11 |
| Rear Roof Trim | 12 |
| Headliner | 13 |
| Rear Grab Handle | 14 |
| Rear Roof Speaker | 15 |
| Rear Roof Speaker Cover | 16 |
| Rear Individual Map /Ambient Light | 17 |
| Rear Individual Map Light Lens | 18 |
| Front Grab Handle | 19 |
| Front Roof Speaker | 20 |
| Front Roof Speaker Trim | 21 |
| Sunvisor/Vanity Mirror Light | 22 |
| Vanity Mirror Lens | 23 |
| Front Individual Map Light Lens | 24 |
| Front Individual Map Light/Roof Module | 25 |
| Roof Console | 26 |
| Sunvisor Holder | 27 |
| Middle ANC/Active Sound Control Microphone | 28 |
| Rear ANC/Active Sound Control Microphone | 29 |
| Cargo Area Light | 30 |
| Front HFL-ANC/Active Sound Control Microphone | 31 |
