FTP Sensor Functional Inspection

Test Procedure

• Procedure
  • Remove the FTP sensor.
  • Reconnect the 3P connector to the FTP sensor.
  • Turn the vehicle to the ON mode.

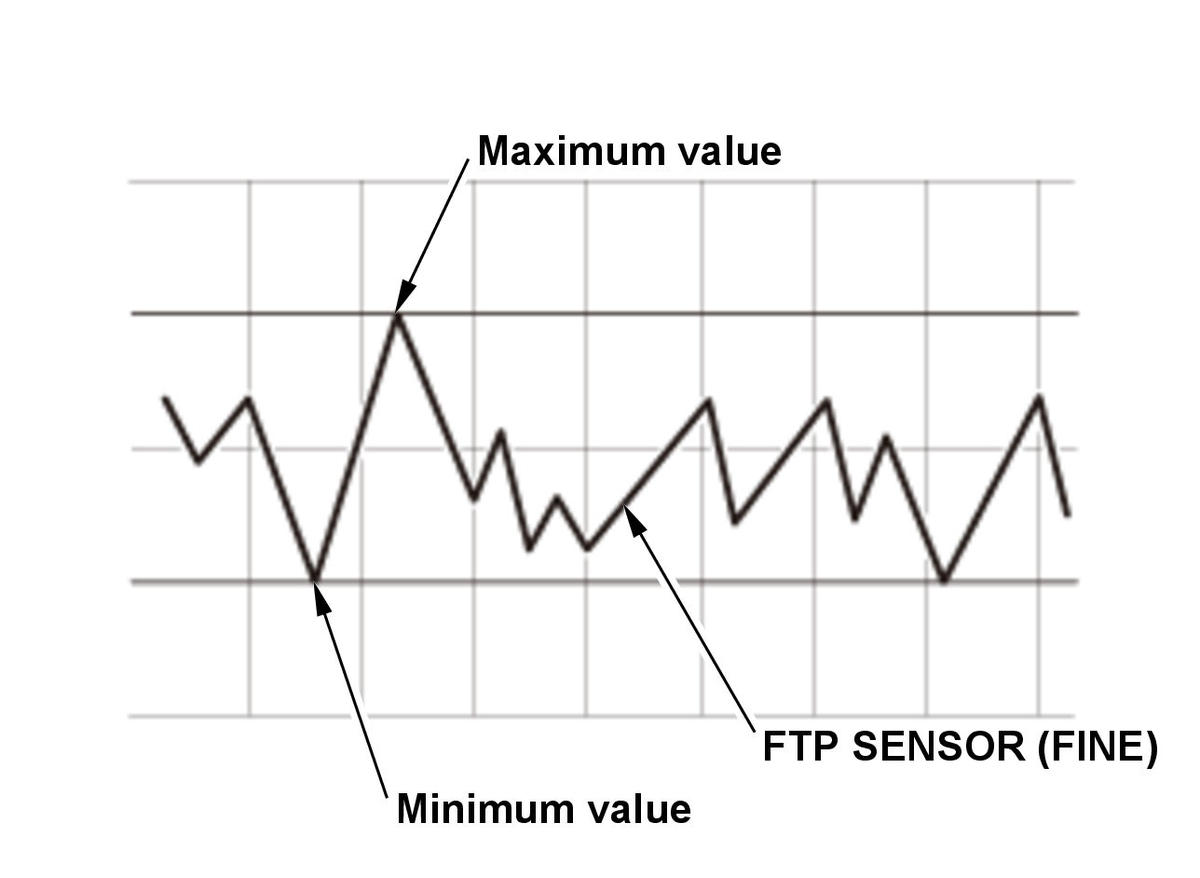

  • Confirm the HDS [ FTP Sensor (Fine) ].

  Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
  • HDS [ FTP Sensor (Fine) ] does not vary 0.067 kPa (0.02 inHg, 0.5 mmHg) or more  within 3 seconds.

Results

• If it is abnormal, there is a problem with the FTP sensor.
