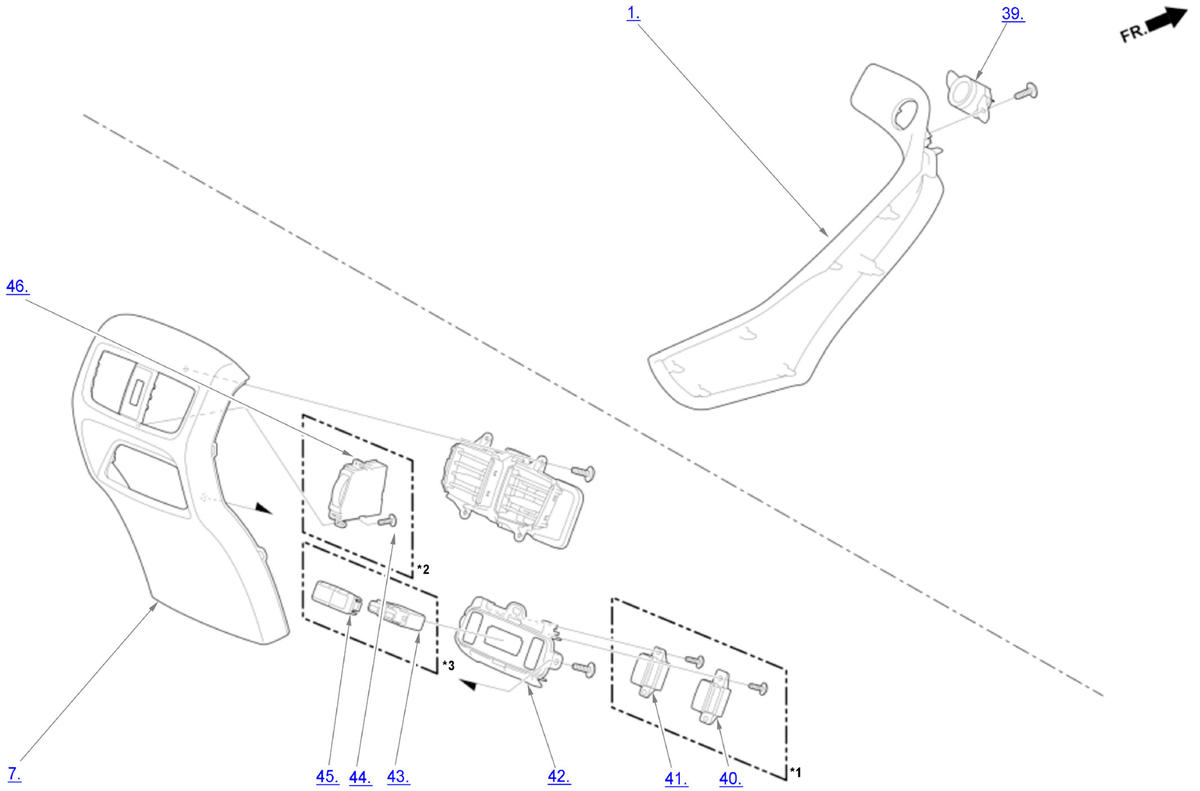

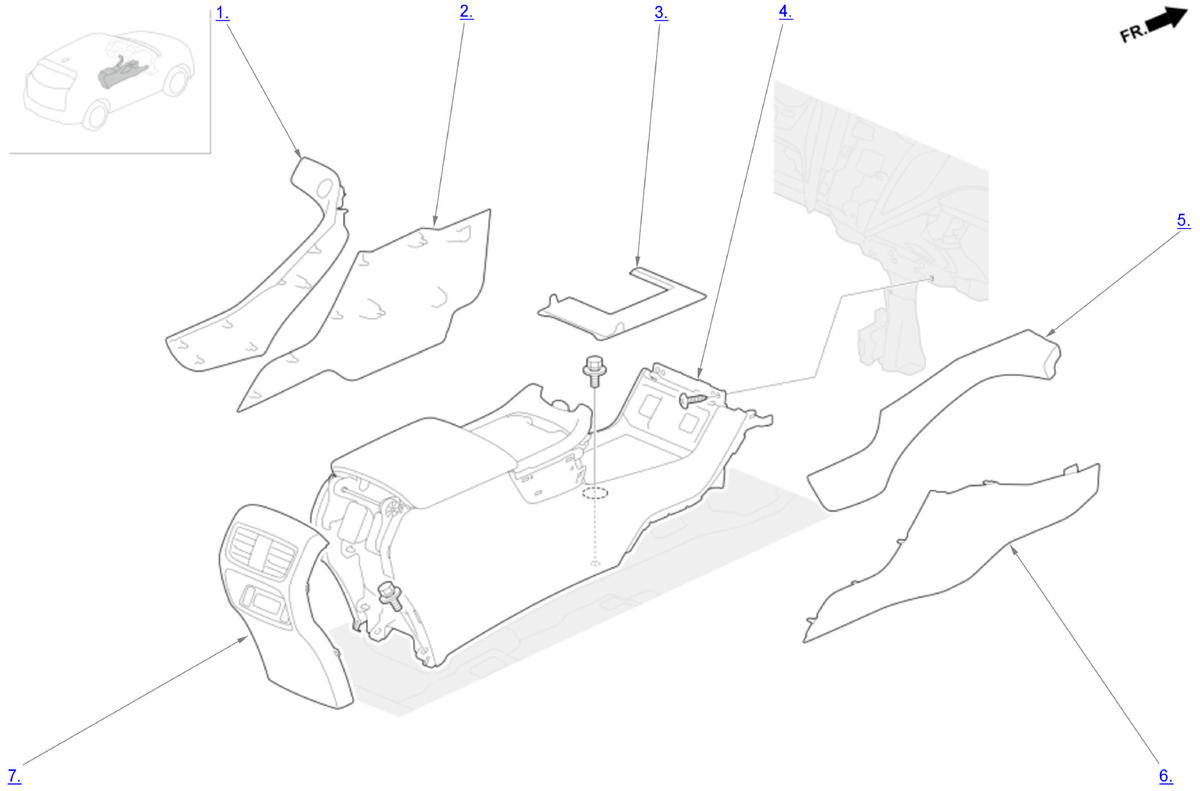

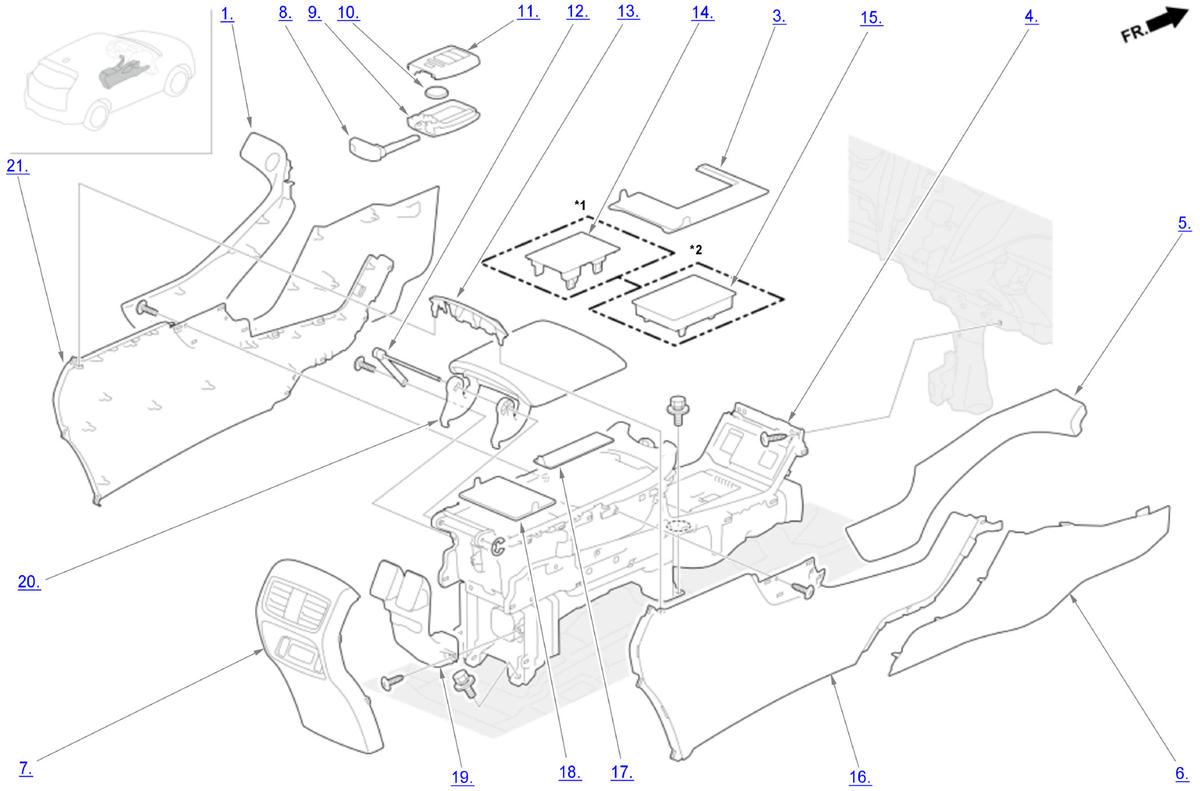

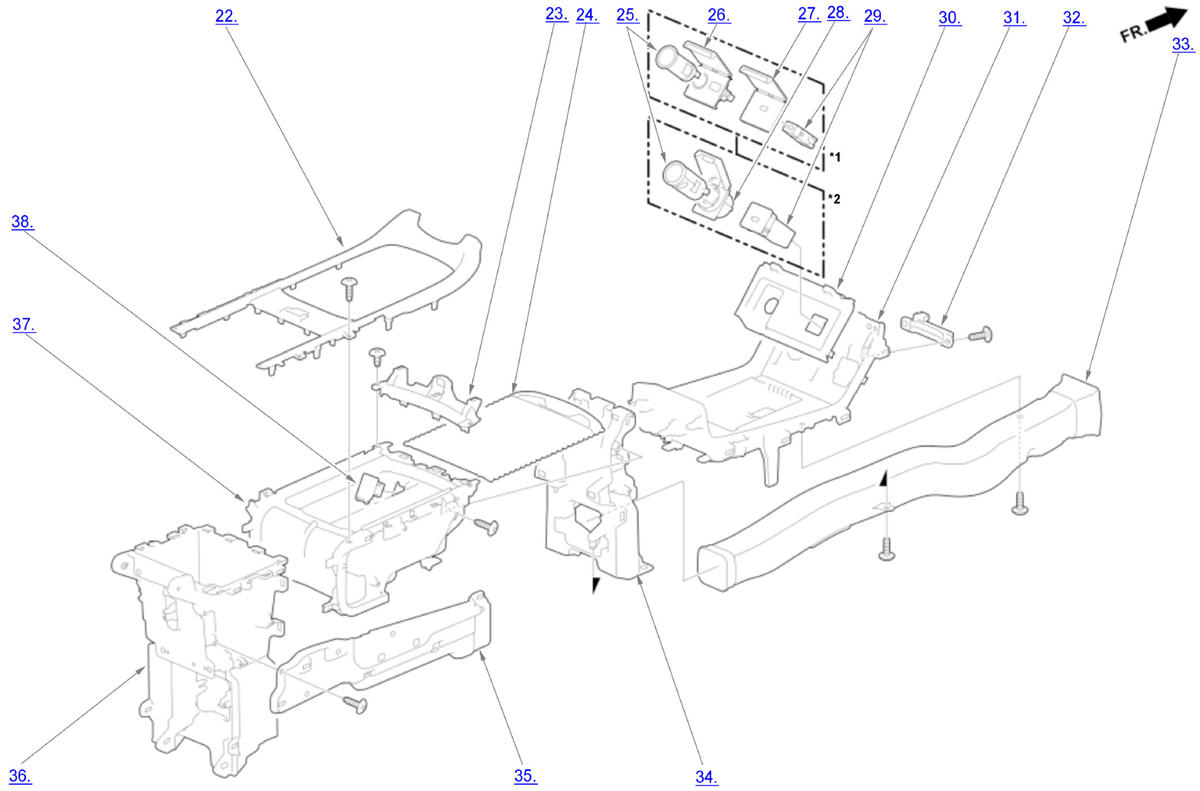

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: Without wireless charger *2: With wireless charger |
| *1:'19-21 *2:'22-23 |
| *1: With rear seat heater *2: With rear temperature control *3: With rear USB charging port |
Center Console Area Components
| Component Name | Callout |
|---|---|
| Driver's Wrapped Trim | 1 |
| Driver's Center Console Cover | 2 |
| Pass-through Floor Mat | 3 |
| Center Console Assembly | 4 |
| Passenger's Wrapped Trim | 5 |
| Passenger's Center Console Cover | 6 |
| Center Console Rear Panel | 7 |
| Emergency Key | 8 |
| Bottom Shell | 9 |
| Remote Battery | 10 |
| Top Shell | 11 |
| Torque Hinge | 12 |
| Bin Cover | 13 |
| Pass-through Floor Panel | 14 |
| Wireless Charger | 15 |
| Passenger's Center Console Panel | 16 |
| Phone Pocket Mat | 17 |
| Bin Mat | 18 |
| Center Console Rear Panel Duct | 19 |
| Center Console Armrest | 20 |
| Driver's Center Console Panel | 21 |
| Center Console Bezel | 22 |
| End Cap | 23 |
| Tambour Lid | 24 |
| Front Accessory Power Socket | 25 |
| Front Accessory Power Socket Holder/Auxiliary Jack Assembly | 26 |
| Front USB Charger Holder (USB Port B) | 27 |
| Front Accessory Power Socket Holder | 28 |
| Front USB Charger Unit (USB Port B) | 29 |
| Pass-through Panel | 30 |
| Pass-through Floor | 31 |
| Front Interior LF Antenna | 32 |
| Center Console Duct | 33 |
| Center Console Middle Bracket | 34 |
| Center Console Bracket | 35 |
| Console Bin | 36 |
| Tambour Lid Assembly | 37 |
| USB Port A | 38 |
| Engine Start/Stop Switch | 39 |
| Right Rear Seat Heater Switch | 40 |
| Left Rear Seat Heater Switch | 41 |
| Center Console Rear Switch Trim | 42 |
| Rear USB Charger Unit (Left: USB Port C, Right: USB Port D) | 43 |
| Rear Vent Duct | 44 |
| Rear USB Charger Holder (Left: USB Port C, Right: USB Port D) | 45 |
| Rear Temperature Control Dial | 46 |
