Auto High-Beam (High-Beam Support System) Control Unit Connector for Inputs and Outputs (2018 2019 2020)

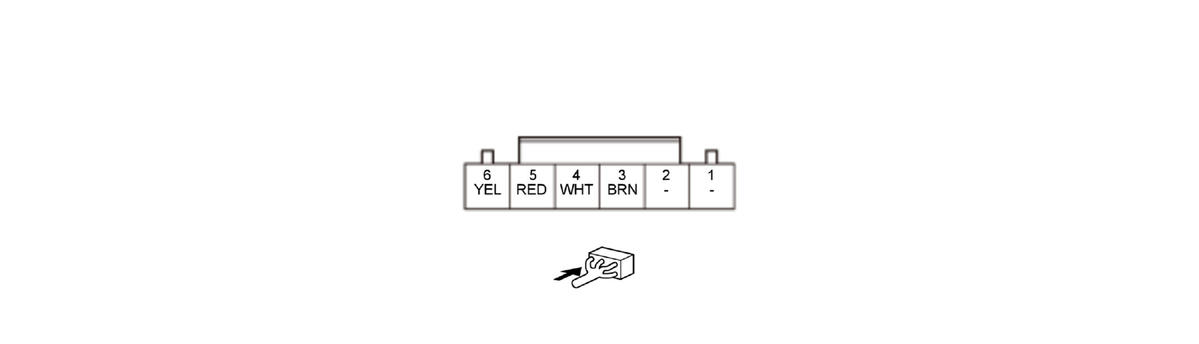

Auto High-Beam Control Unit 6P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | Not used | --- | --- |
| 3 | GND | Ground for auto high-beam control unit | Less than 0.2 V at all times |
| 4 | B-CAN_L | Communication line | --- |
| 5 | B-CAN_H | Communication line | --- |
| 6 | IG1 DR1 | IG1 power source | With the vehicle in the ON or START mode: about battery voltage |
