Accelerator Pedal Module Removal And Installation: Installation

  1. Accelerator Pedal Module - Install

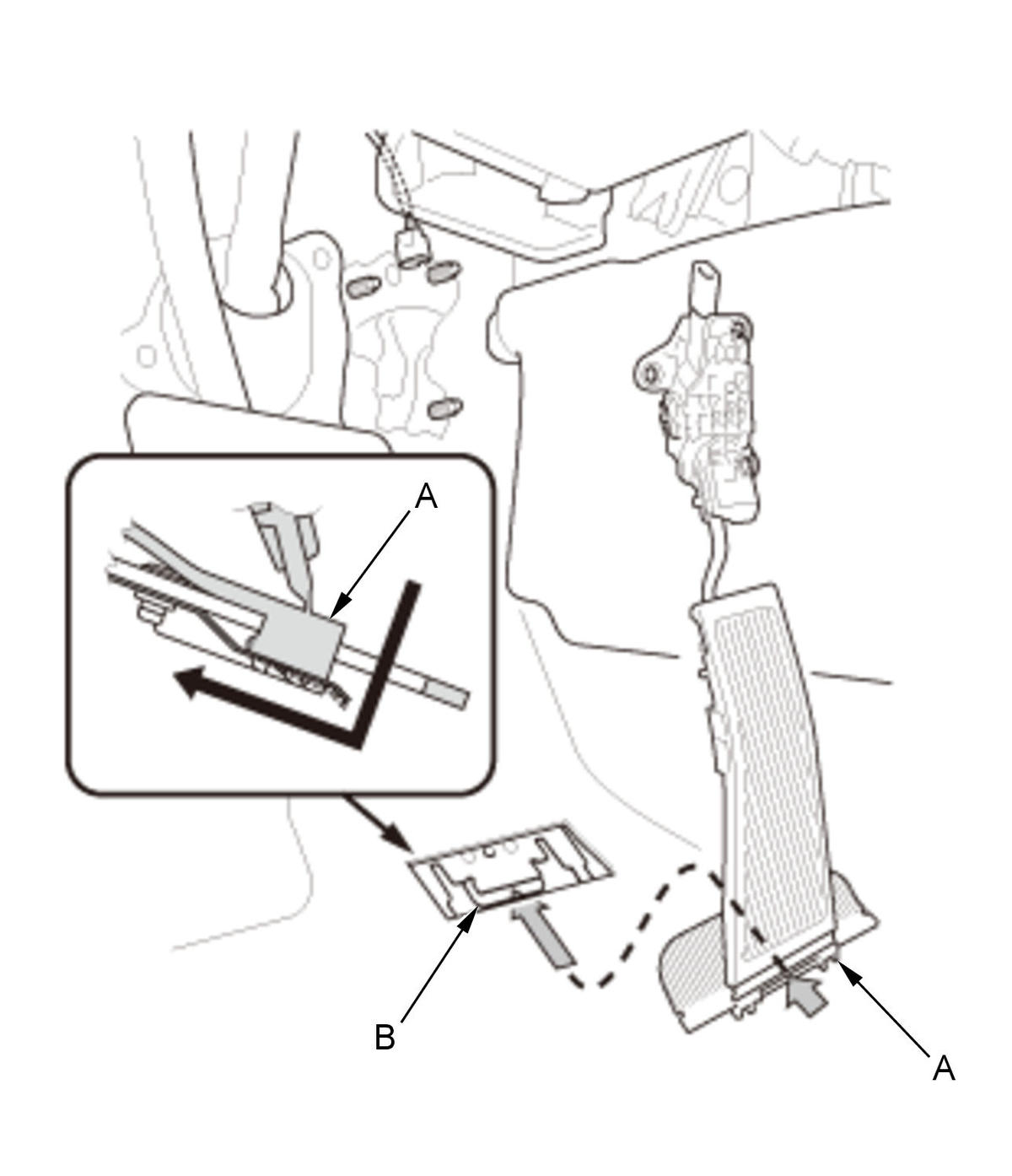

    GHH345813Courtesy of HONDA, U.S.A., INC.
    		 1. Install the accelerator pedal pad (A) to the pedal stop (B). Slide the pad until it locks with a clicking sound.

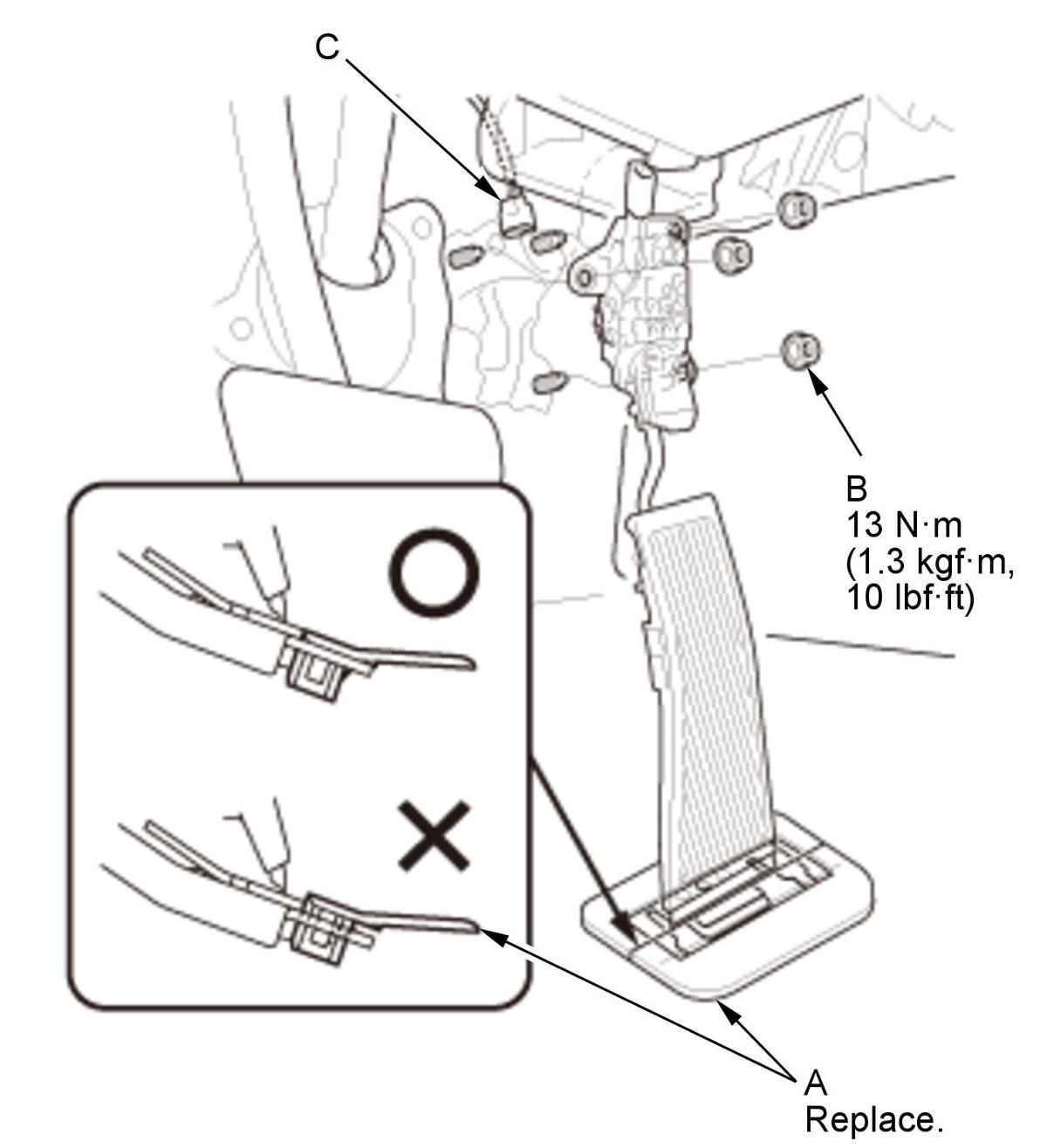

    Fig 1: Accelerator Pedal Module With Torque Specifications
    GHH345814Courtesy of HONDA, U.S.A., INC.
    2. Install a new clip (A).
    • The clip must be replaced whenever the accelerator pedal module is installed.
    • Make sure that the accelerator pedal module and the clip are secure.

    3. Install the nuts (B), and connect the accelerator pedal module connector (C).
