Repair Procedure: Procedure
- A.
■ Key Information
Do the following before starting your work.
Remove:
■ Sub-Procedure
• Installation
NOTE:- If you are reinstalling the original intercooler, make sure the EPDM foam (letter reference F) is not damaged or distorted. Replace it if it is.
- If you are installing a new intercooler, make sure the EPDM foam (letter reference F) is installed.
- B.
■ Sub-Procedure
• Removal
- Remove the left inner fender as needed.
- C.
■ Key Information
Do the following before starting your work.
Remove:
- D.
■ Key Information
Do the following before starting your work.
Remove:
- E.
■ Key Information
Do the following before starting your work.
Remove:
- F.NOTE: Review the Intake Air System and Exhaust System Service Precautions before doing repairs or service.
- G.
■ Sub Procedure
• Installation

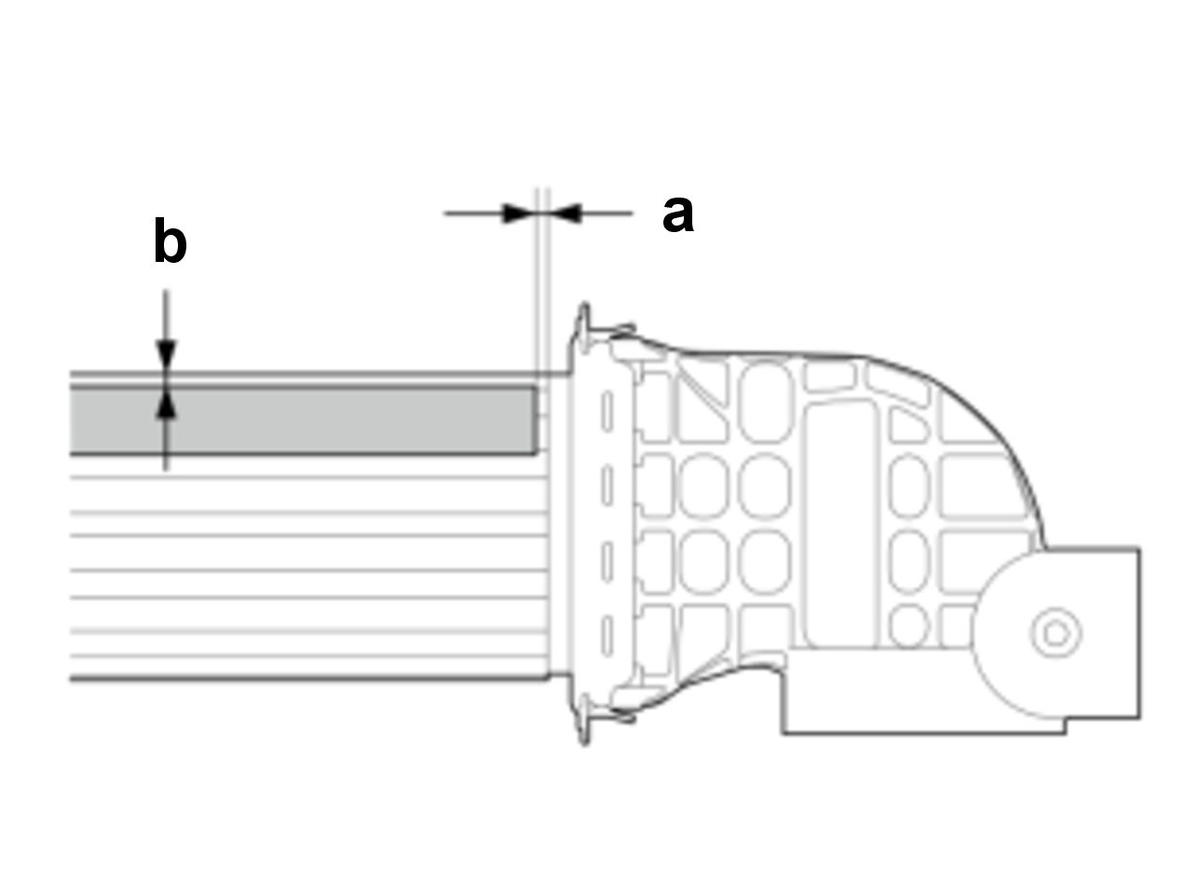

Specifications
Standard Value a 0-5.0 mm (0-0.197 in) b
