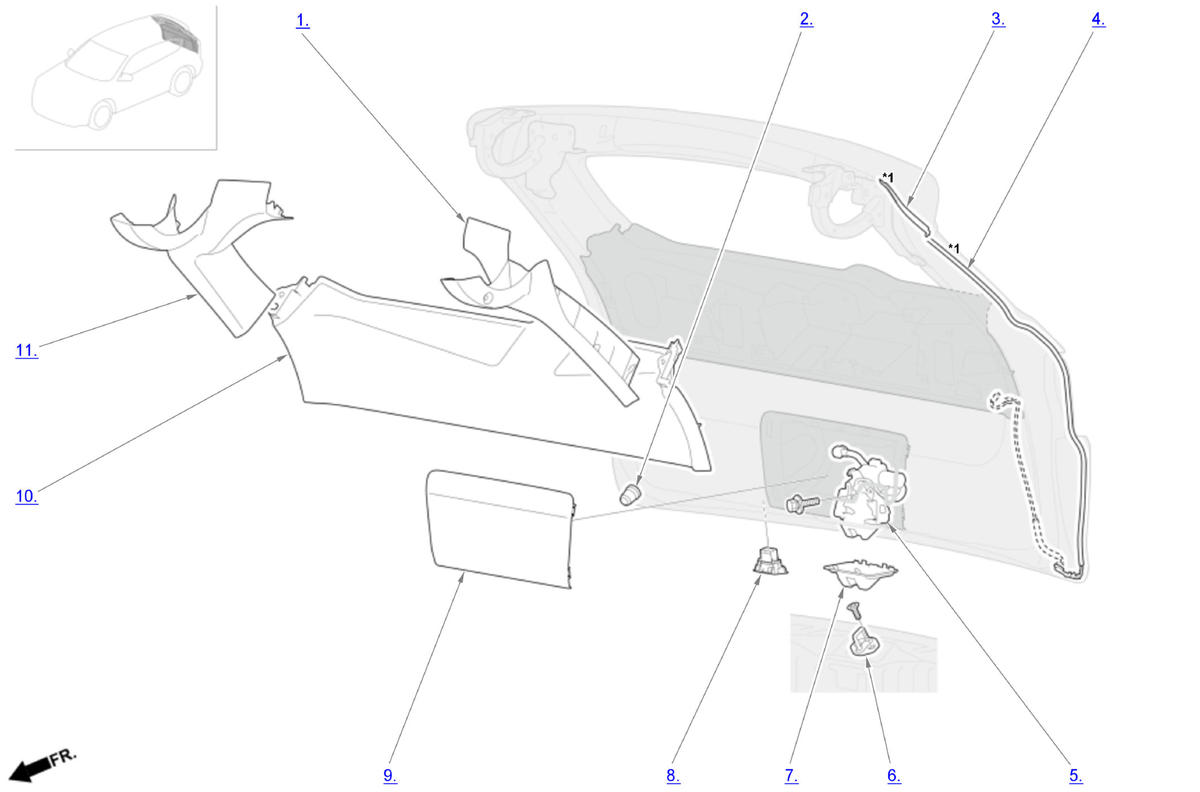

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |
Tailgate
| Component Name | Callout |
|---|---|
| Left Tailgate Hinge Trim | 1 |
| Tailgate Edge Cushion | 2 |
| Tailgate Upper Corner Seal | 3 |
| Power Tailgate Pinch Sensor | 4 |
| Tailgate Latch | 5 |
| Striker | 6 |
| Tailgate Latch Cover | 7 |
| Power Tailgate Inside Switch | 8 |
| Tailgate Maintenance Lid | 9 |
| Tailgate Trim Panel | 10 |
| Right Tailgate Hinge Trim | 11 |
