Automatic Brake Hold Switch Test: Test

How To Use This Service Information .

1. Automatic Brake Hold Switch - Test

   Preconditions

   • Automatic Brake Hold Switch Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)
   NOTE:

   • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
   • Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

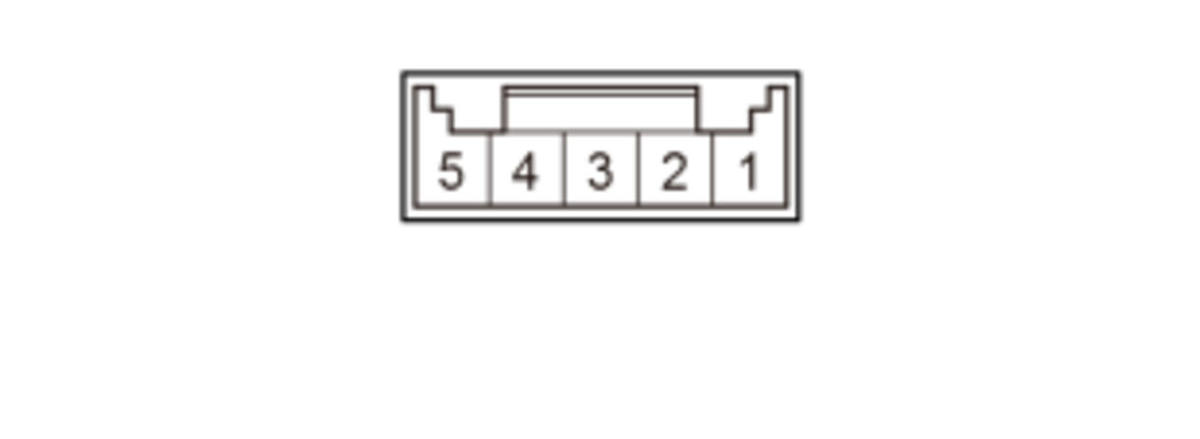

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

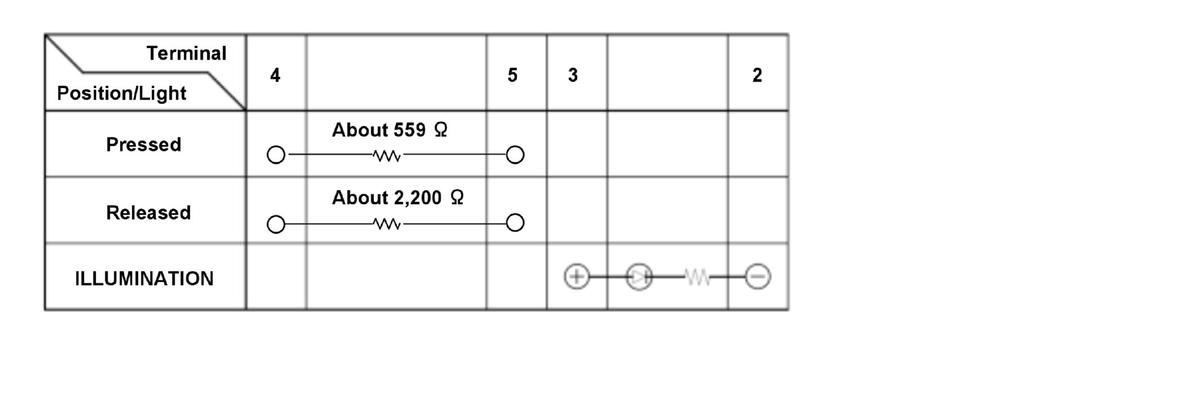

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the automatic brake hold switch.
