Power Tailgate Control Unit Inspection
Preconditions
NOTE:
This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.
- External circuit is normal
Test Procedure
- Preparation
- TCM connector A (23P) : disconnected
- Body control module connector C (28P) : disconnected
- Driver's power seat control unit connector A (40P) : disconnected
- Front passenger's power seat control unit connector A (40P) : disconnected*NOTE:
*: With 16-way power seat
- Procedure
- Perform the inspection according to the following table.
(Disconnected)

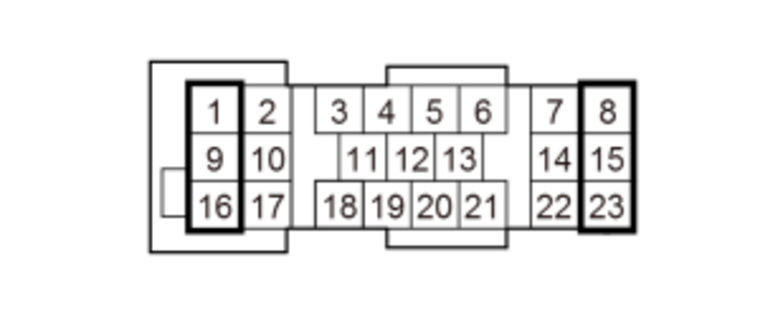

TCM connector A (23P) female terminalsIG Mode Normal Conditions Unit internal circuit inspection OFF Not shorted
- Perform the inspection according to the following table.
Results
- If it is abnormal, there is a problem with the power tailgate control unit.
