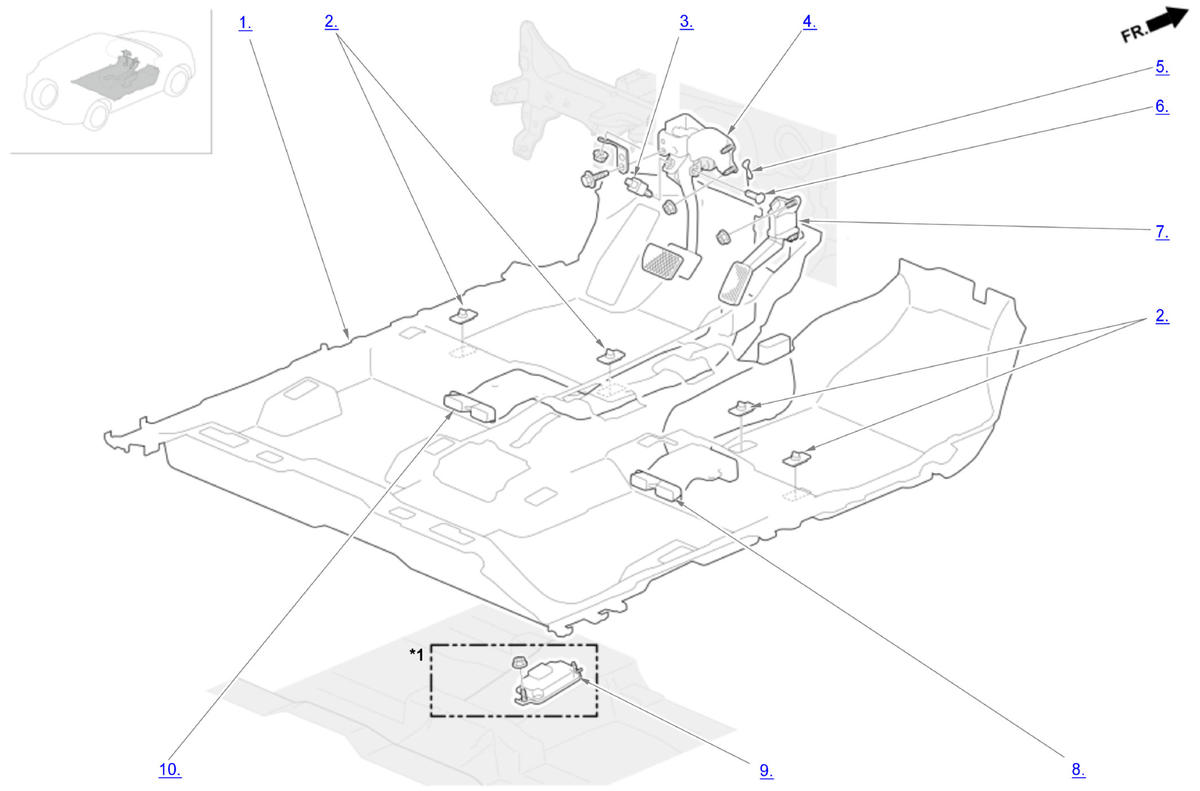

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With adaptive damper system |
Pedals Area Components
| Component Name | Callout |
|---|---|
| Carpet | 1 |
| Floor Mat Holder | 2 |
| Brake Pedal Position Switch | 3 |
| Brake Pedal | 4 |
| Lock Pin | 5 |
| Clevis Pin | 6 |
| Accelerator Pedal Module | 7 |
| Right Rear Floor Duct | 8 |
| Adaptive Damper Control Unit | 9 |
| Left Rear Floor Duct | 10 |
