MOST Connector Handling

When checking the MOST TX/RX circuit, you can judge the signal circuit receive or transmit by connector color.

Green connector: Transmit (TX)
Red connector: Receive (RX)

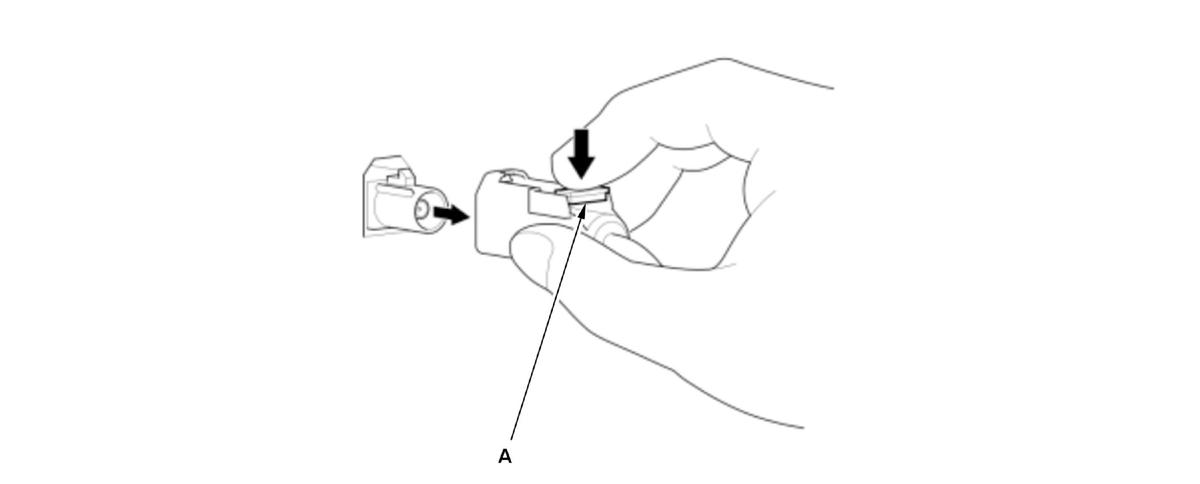

The MOST coaxial cable connector is easy to break. To disconnect the connector, carefully pushing the lock tab (A) down, then pull the connector with holding the housing. Do not pull the connector cable directly.

NOTE: The indicated connector shown may be different on the uses or specifications.

Courtesy of HONDA, U.S.A., INC.

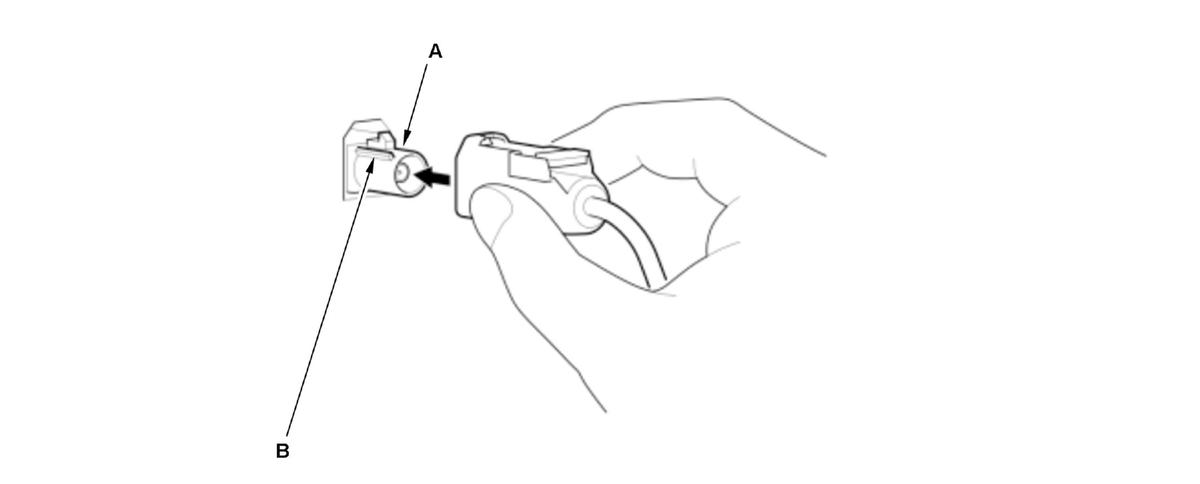

To connect the connector, insert the connector into the connector sleeve (A) along the key (B) until click sound is heard.

NOTE: The indicated connector shown may be different on the uses or specifications.

Courtesy of HONDA, U.S.A., INC.
