Audio Visual Systems - Service, Testing & Troubleshooting
>>
Troubleshooting
>>
Audio and Visual System Symptom Troubleshooting - Touchpad Unit Does Not Work Properly
>>
Inspection Outline
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inspection Outline

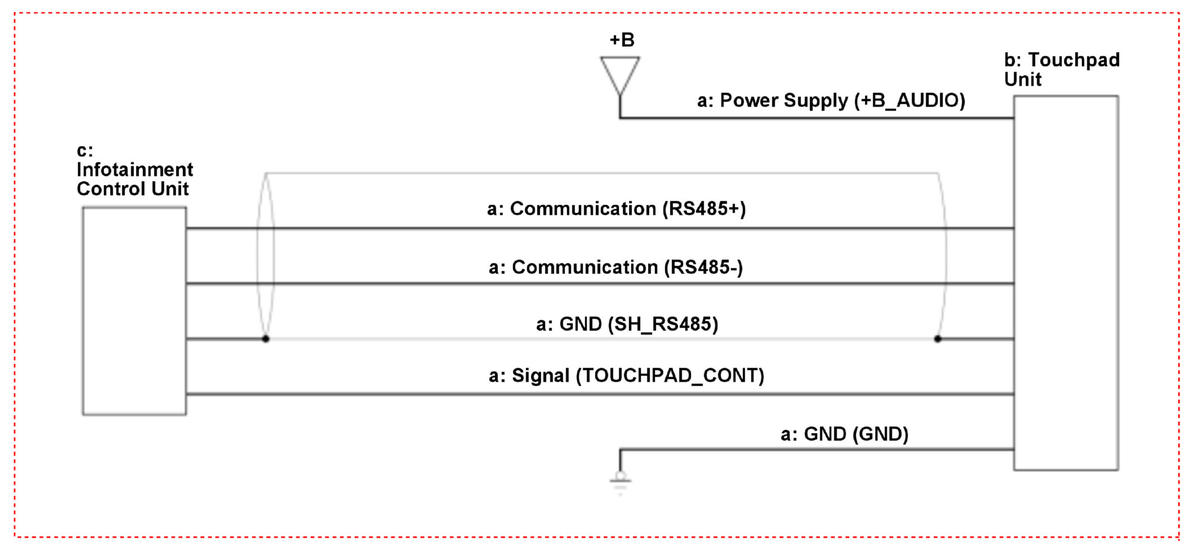

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
+B_AUDIO, TOUCHPAD_CONT, RS485+, RS485-, GND, SH_RS485 Circuit Inspection
b
Touchpad Unit
Touchpad Unit Inspection
c
Infotainment Control Unit
Infotainment Control Unit Inspection
