Audio and Visual System Symptom Troubleshooting - Error code: Check Antenna is displayed: Inspection
SH(XM ANT), XM ANT Circuit Inspection
Test Procedure
- Preparation
-

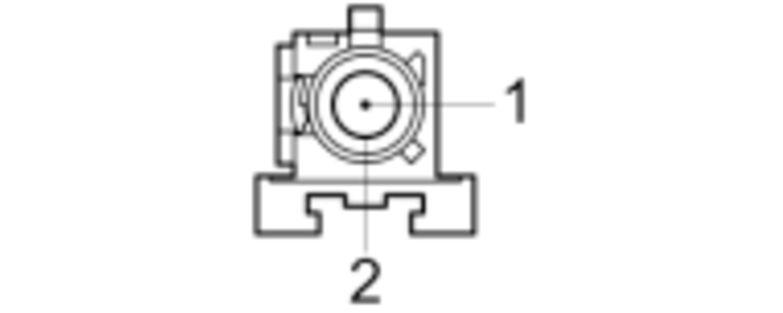

- Tuner unit connector E (2P): disconnected

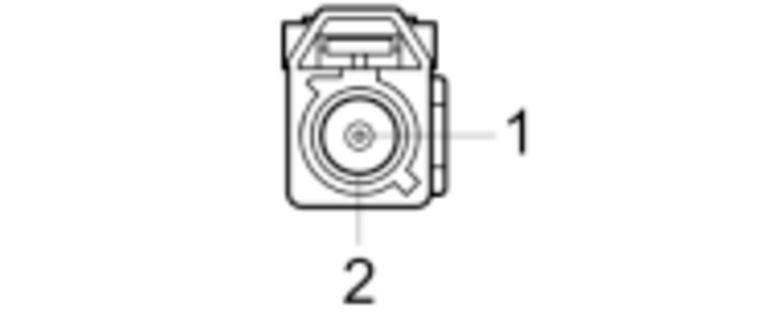

- Roof antenna connector C (2P): disconnected
- Procedure
-
- Perform the inspection according to the following table.
| (Disconnected)Tuner unit connector E (2P) female terminals | (Disconnected)Roof antenna connector C (2P)male terminals | ||||
| IG Mode |
|
|
Normal Conditions | ||
| XM ANT open wire inspection | OFF | There is less than 1 Ohm | |||
| SH(XM ANT) open wire inspection | OFF | There is less than 1 Ohm | |||
| XM ANT, SH(XM ANT) shorted wire to wire inspection | OFF | There is more than 1 MOhm | |||
Results
- If abnormal, there is a problem in the circuit.
Roof Antenna Inspection
NOTE:
Since there is no direct method to test the inspection item, troubleshooting is performed using a known-good component.
Test Procedure
- Install a known-good roof antenna and attempt to reproduce the failure.
Results
- If the failure is reproduced, there is a problem with other related components.
- If the symptom/DTC goes away, the roof antenna must be faulty.
Tuner Unit Inspection
Test Procedure
- If the other inspection item(s) indicated a normal condition, then it is determined that the remaining tuner unit is the cause.
Results
- There is a problem with the tuner unit.
