Entry Lights Control System Component Location Index

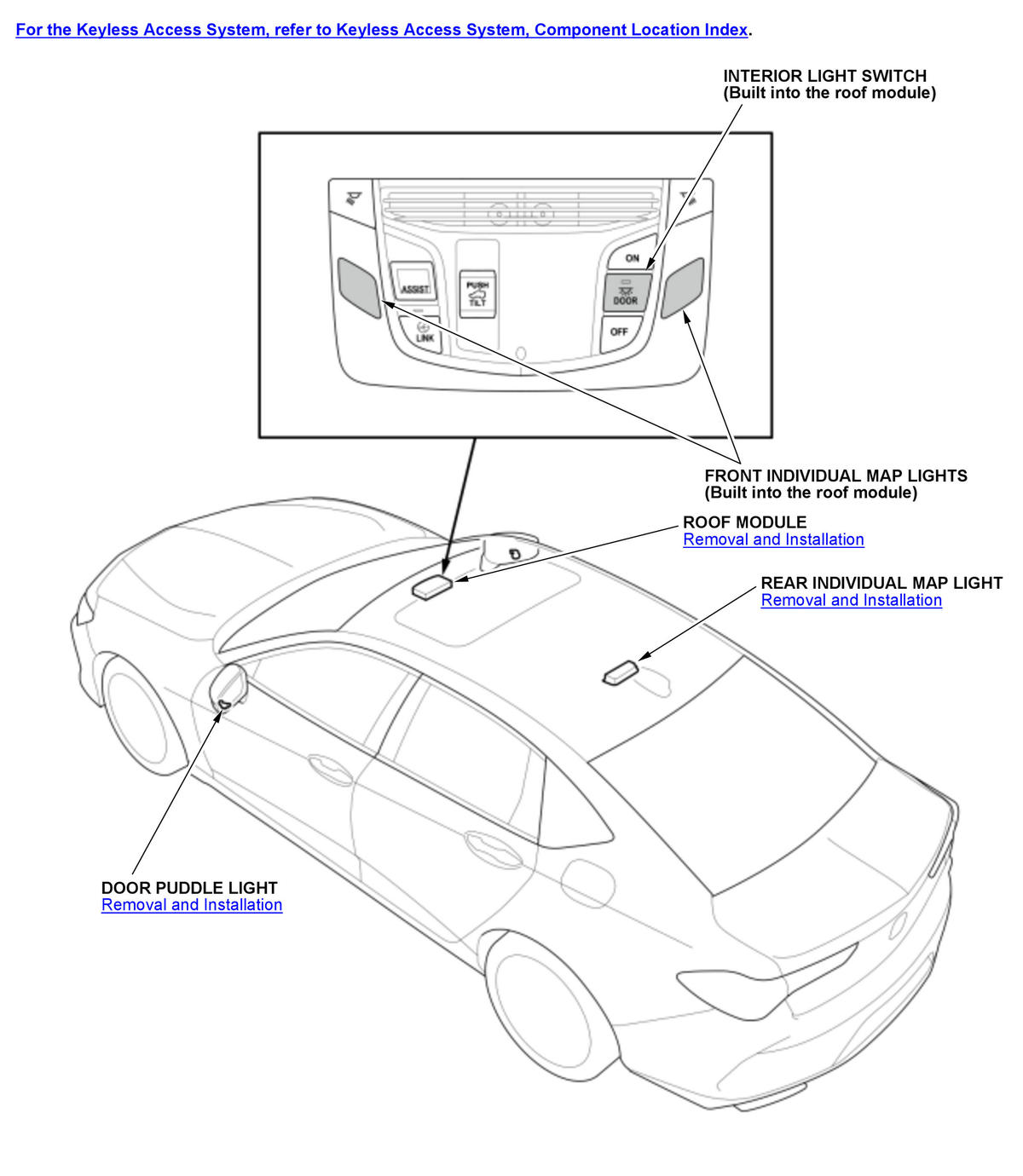

GHH562092Courtesy of HONDA, U.S.A., INC.

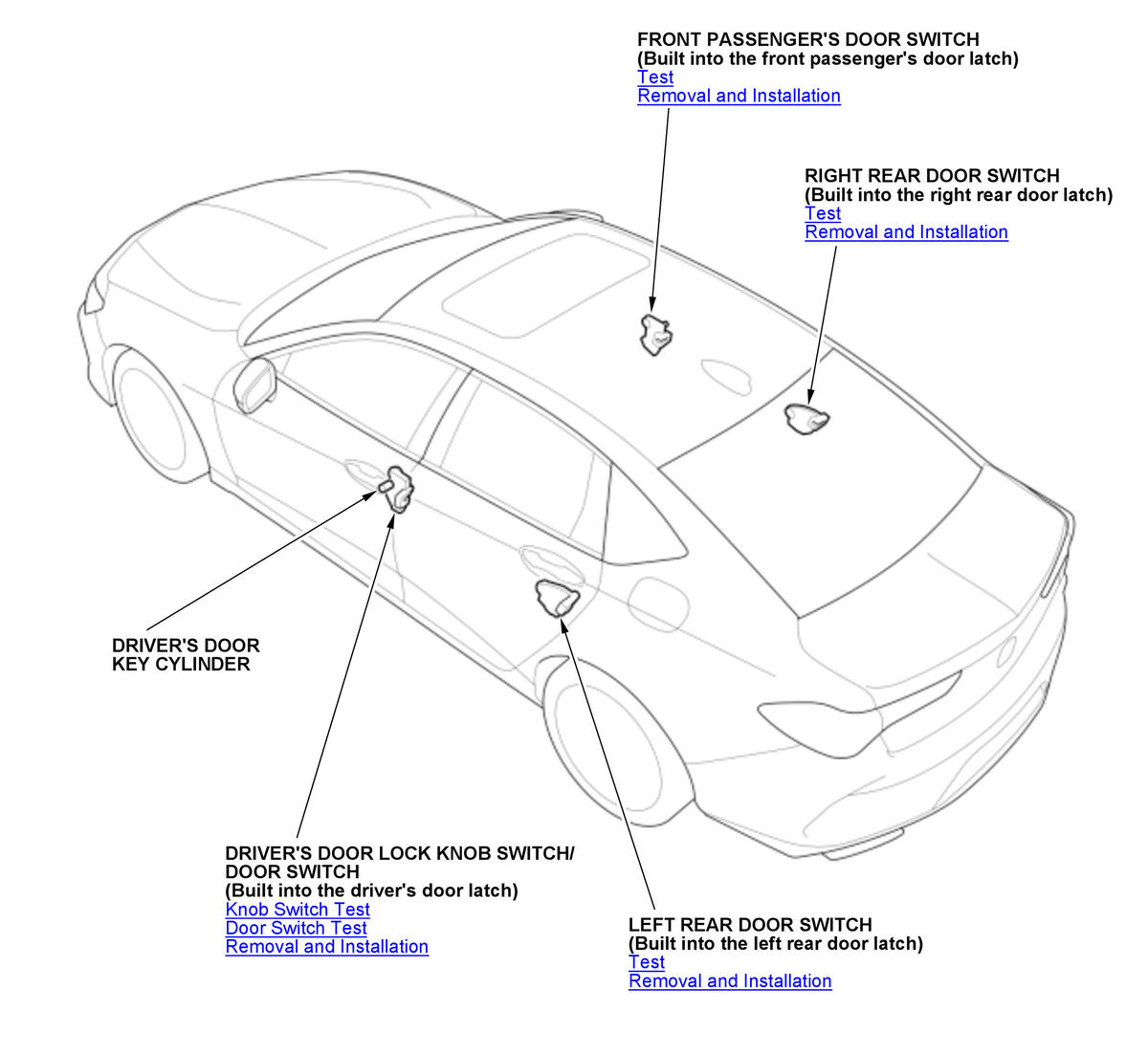

GHH562093Courtesy of HONDA, U.S.A., INC.

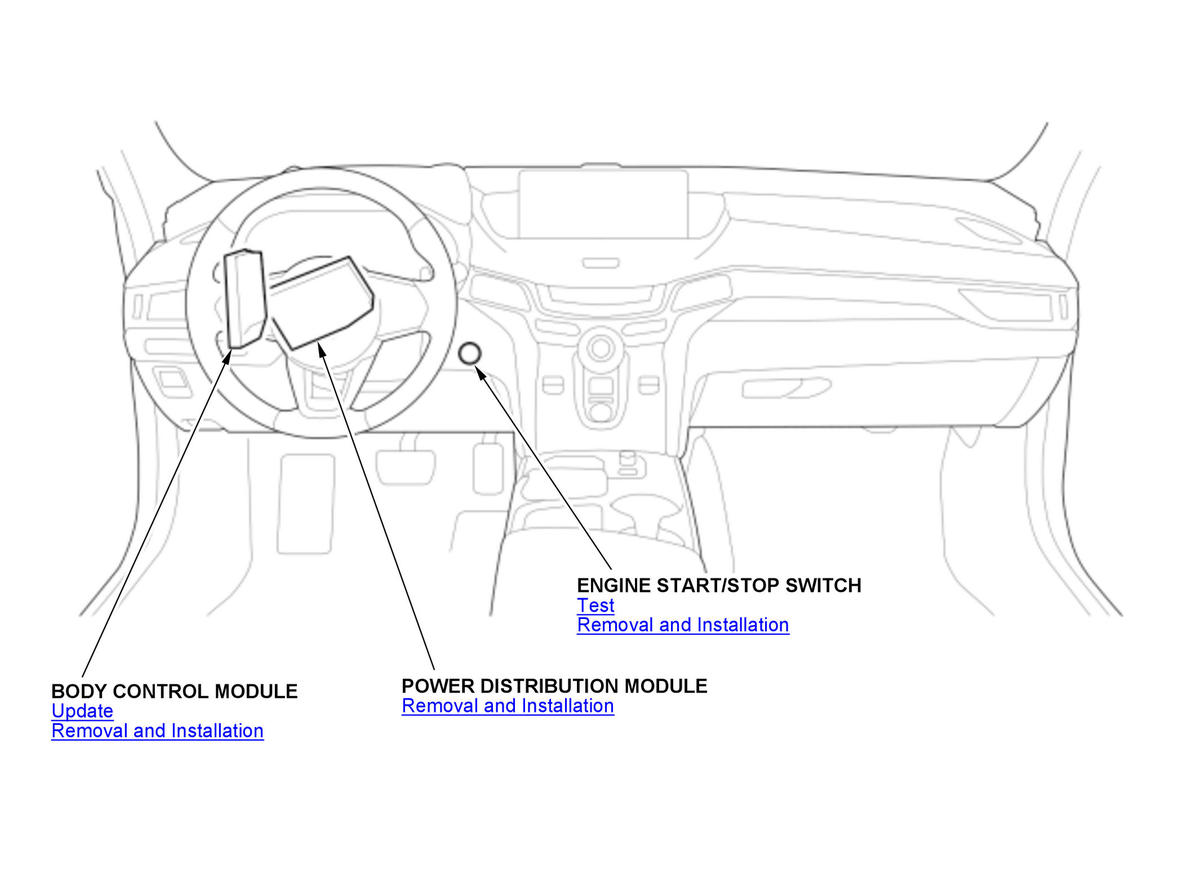

GHH562094Courtesy of HONDA, U.S.A., INC.
