Door Key Cylinder Switch Test: Test

How to use this manual .

1. Door Key Cylinder Switch - Test

   Preconditions

   • Driver's Door Panel Removed

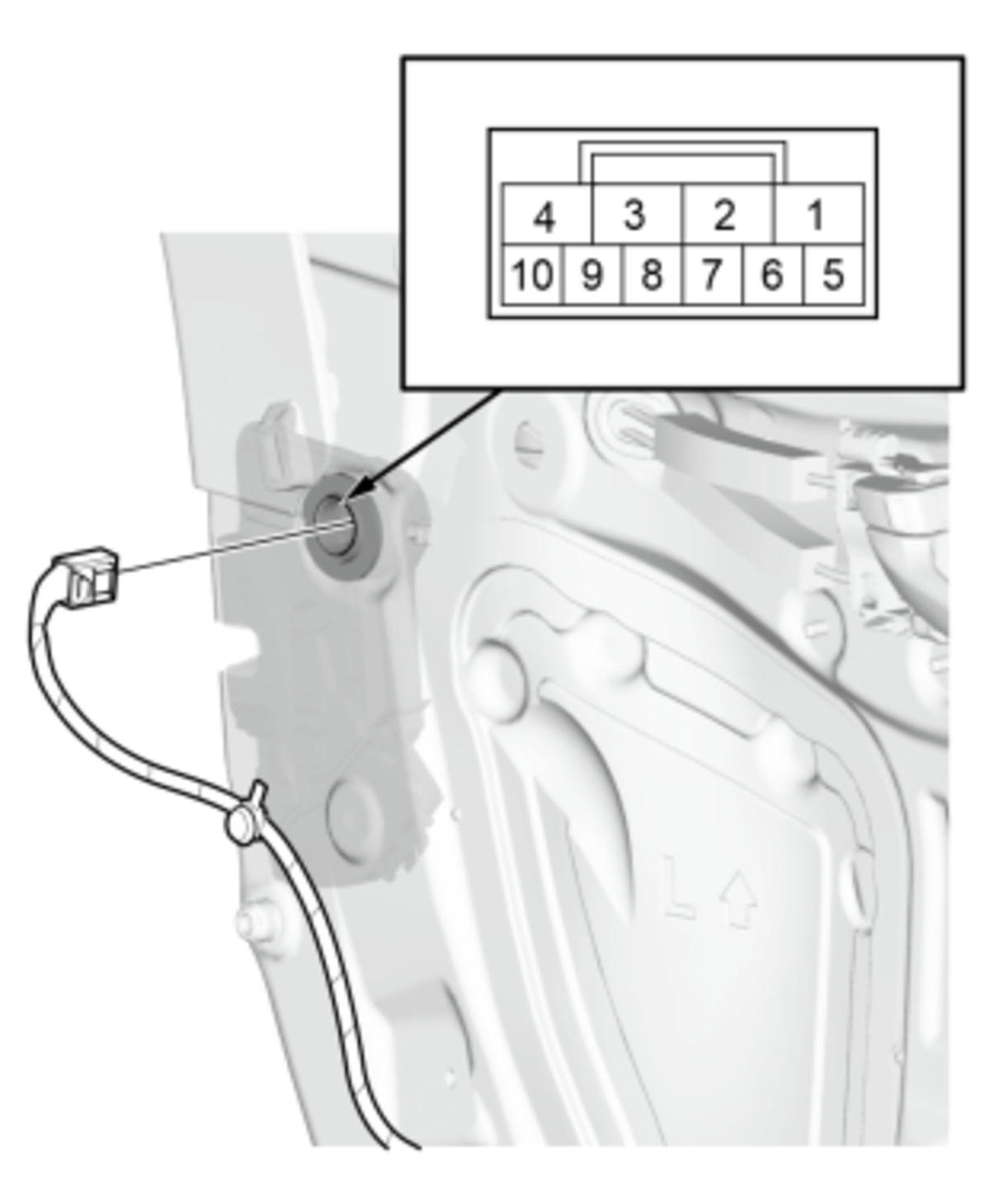

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

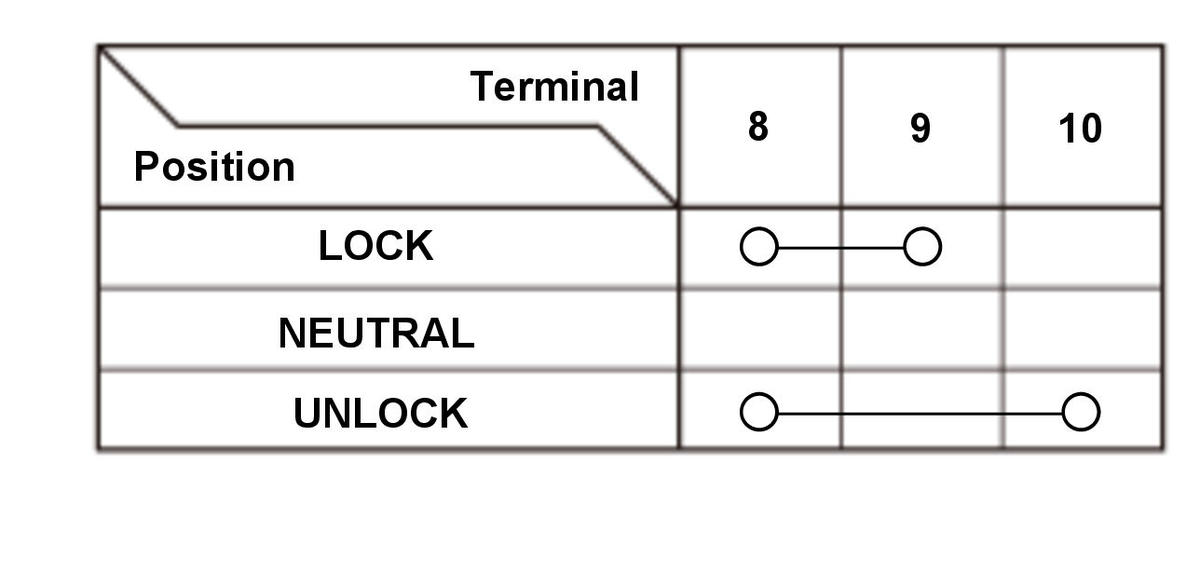

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)

   Result

   • If the result is not as specified, replace the driver's door latch .
