Exploded View

For replacement of components listed below, see Repair Procedure .

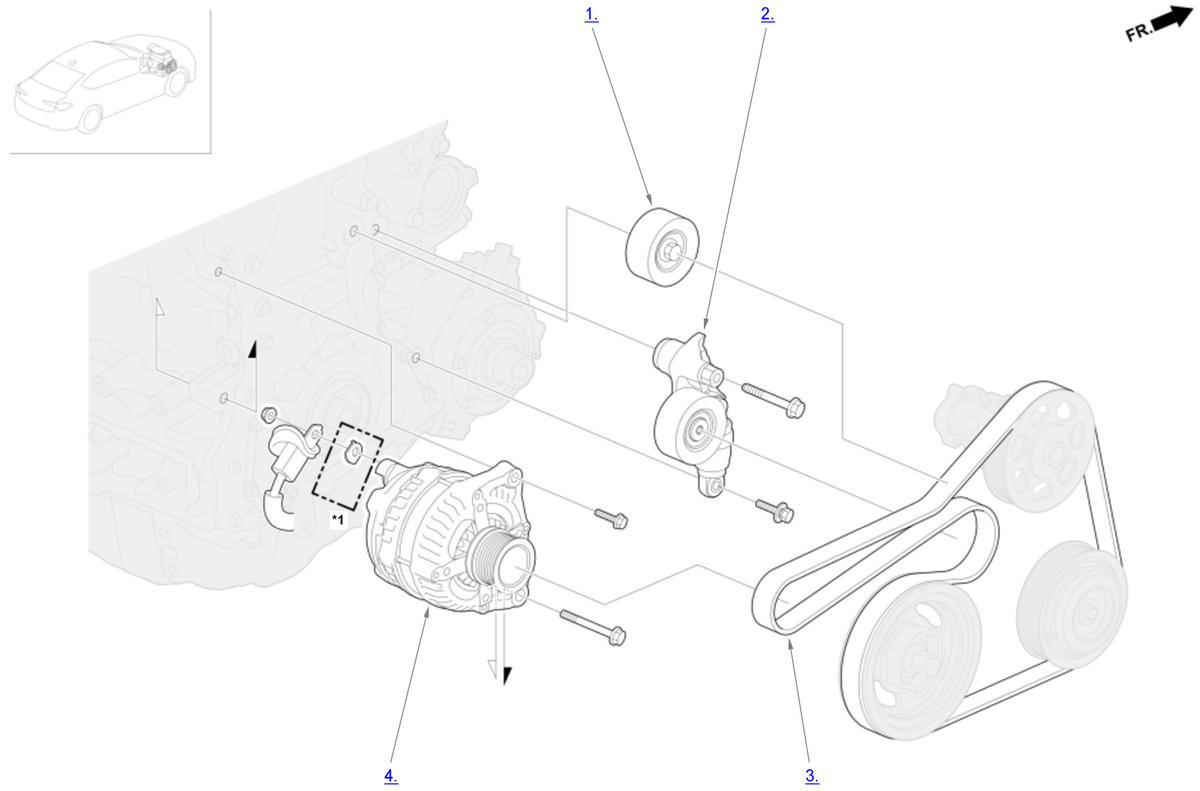

Fig 1: Drive Belt Routing & Pulley Bolt
GHH558935Courtesy of HONDA, U.S.A., INC.
*1: There are two types of alternator: the type without washer and the type with washer.

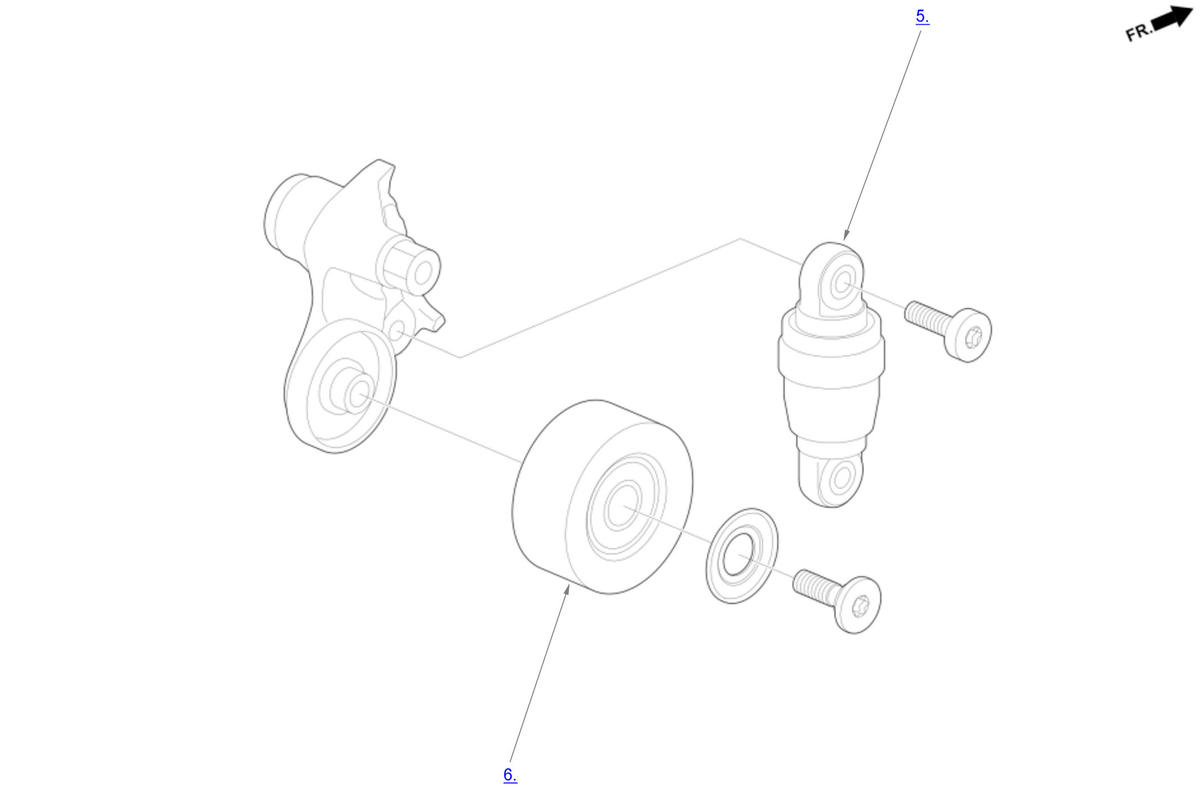

GHH558936Courtesy of HONDA, U.S.A., INC.
Alternator Area Components

Component Name Callout
Drive Belt Idler Pulley 1
Drive Belt Auto-Tensioner 2
Drive Belt 3
Alternator 4
Drive Belt Auto-Tensioner Damper 5
Drive Belt Auto-Tensioner Pulley 6
