Exploded View

For replacement of components listed below, see Repair Procedure .

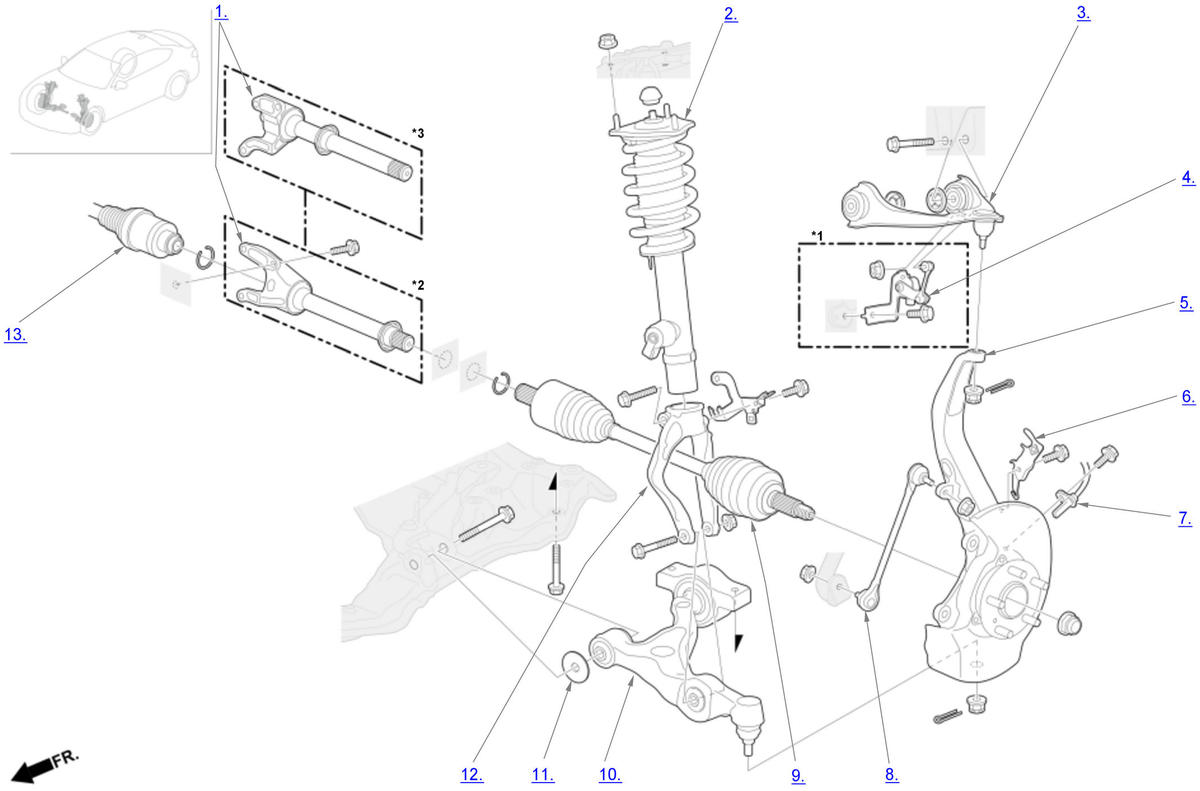

GHH561547Courtesy of HONDA, U.S.A., INC.
*1: With adaptive damper system

*2: 2.0 L engine

*3: 3.0 L engine

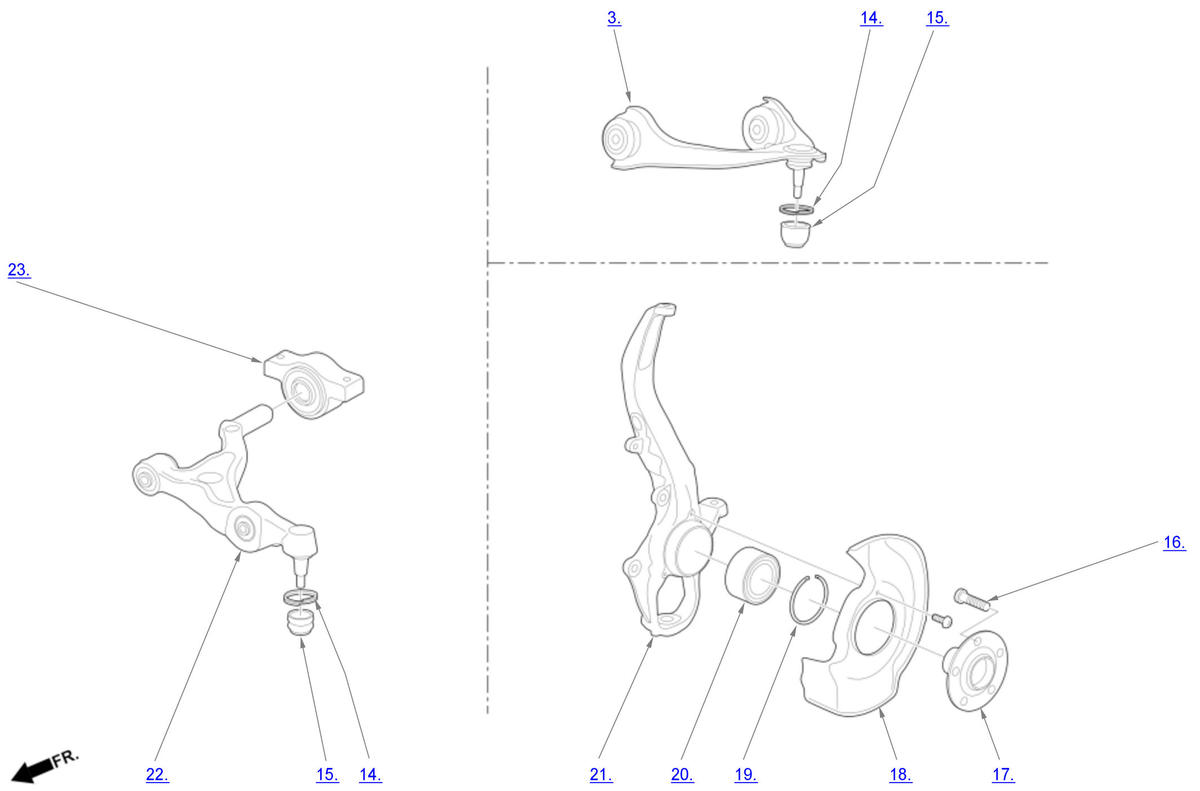

GHH561548Courtesy of HONDA, U.S.A., INC.
Front Suspension Area Components

Component Name Callout
Intermediate Shaft 1
Front Damper/Spring 2
Front Upper Arm 3
Suspension Stroke Sensor 4
Front Knuckle/Hub/Wheel Bearing 5
Front Brake Hose Bracket 6
Wheel Speed Sensor 7
Front Stabilizer Link 8
Left Front Driveshaft 9
Front Lower Arm Assembly 10
Stopper 11
Damper Fork 12
Right Front Driveshaft 13
Boot Clip 14
Ball Joint Boot 15
Wheel Bolt 16
Front Hub 17
Splash Guard 18
Snap Ring 19
Wheel Bearing 20
Front Knuckle 21
Front Lower Arm 22
Front Lower Arm Compliance Bush 23
