Exploded View
For replacement of components listed below, see Repair Procedure .

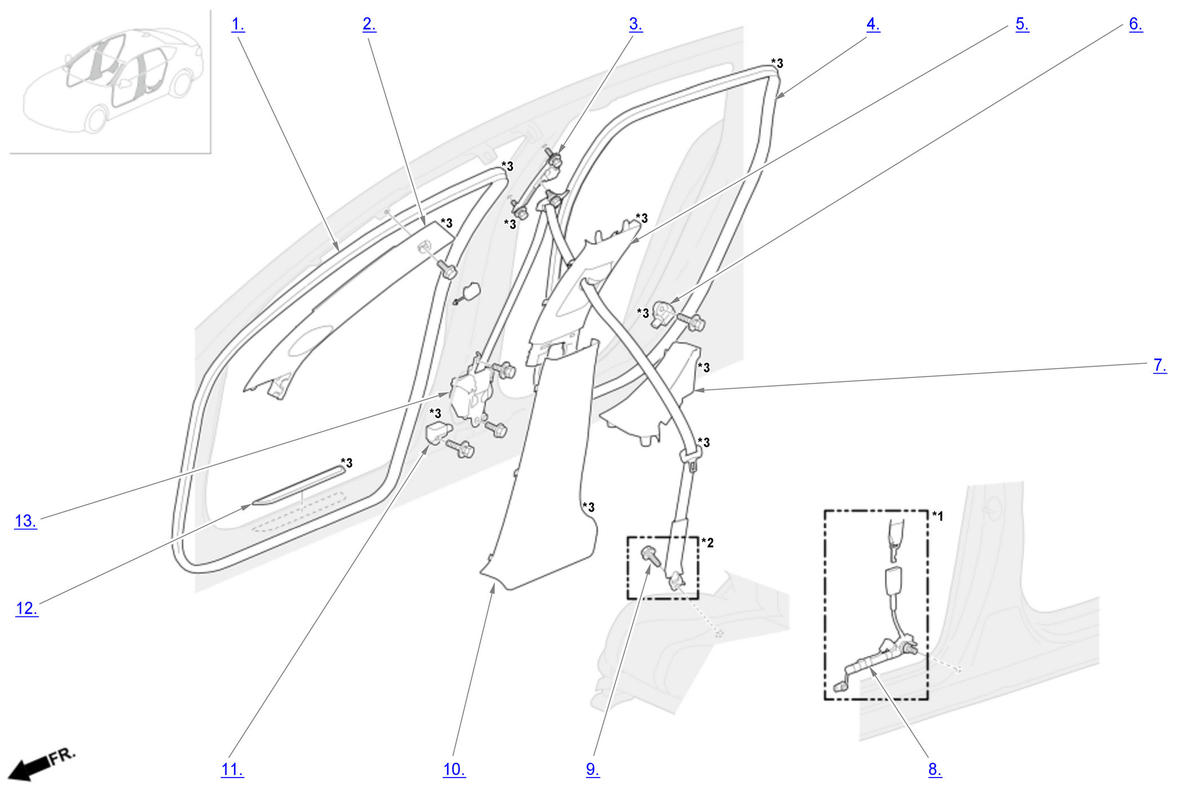

| *1: Driver's side *2: Passenger's side *3: Part(s) are shown for one side only as the procedure is the same for both sides. |

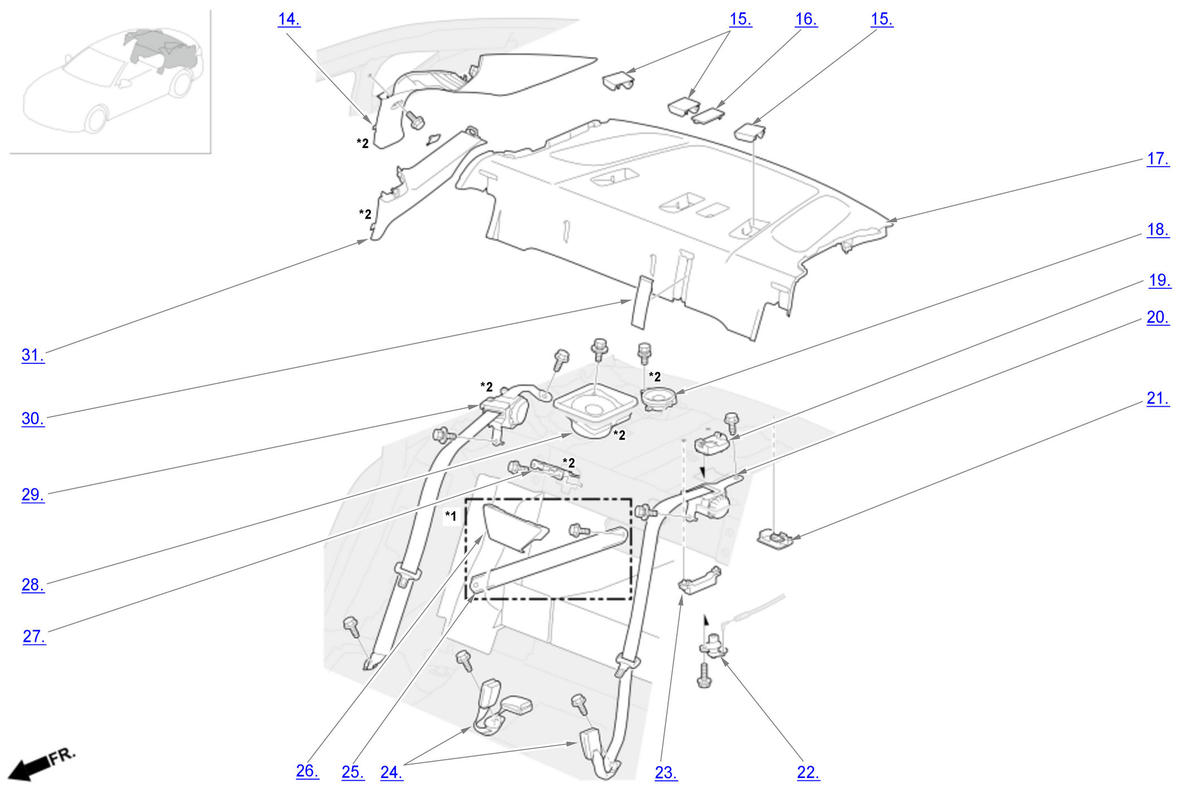

| *1: 3.0L Engine *2: Part(s) are shown for one side only as the procedure is the same for both sides. |

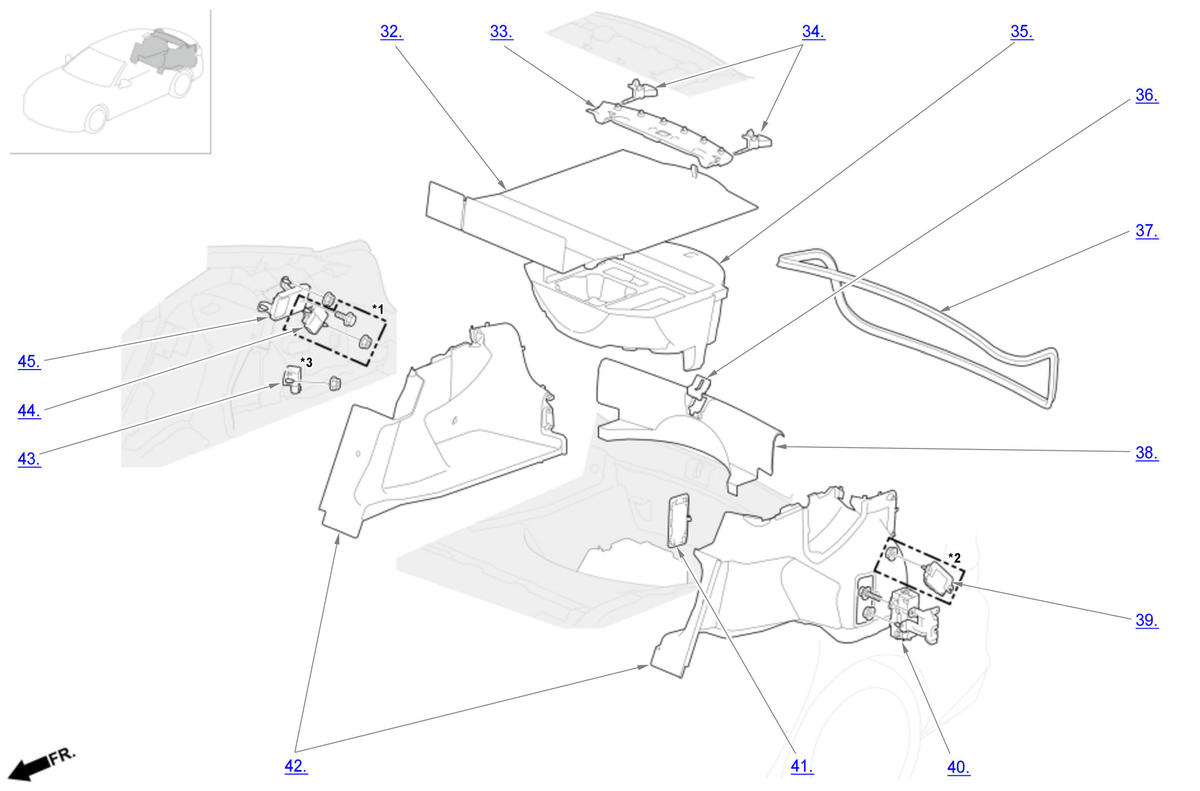

| *1: With AWD *2: With adaptive damper system *3: Part(s) are shown for one side only as the procedure is the same for both sides. |

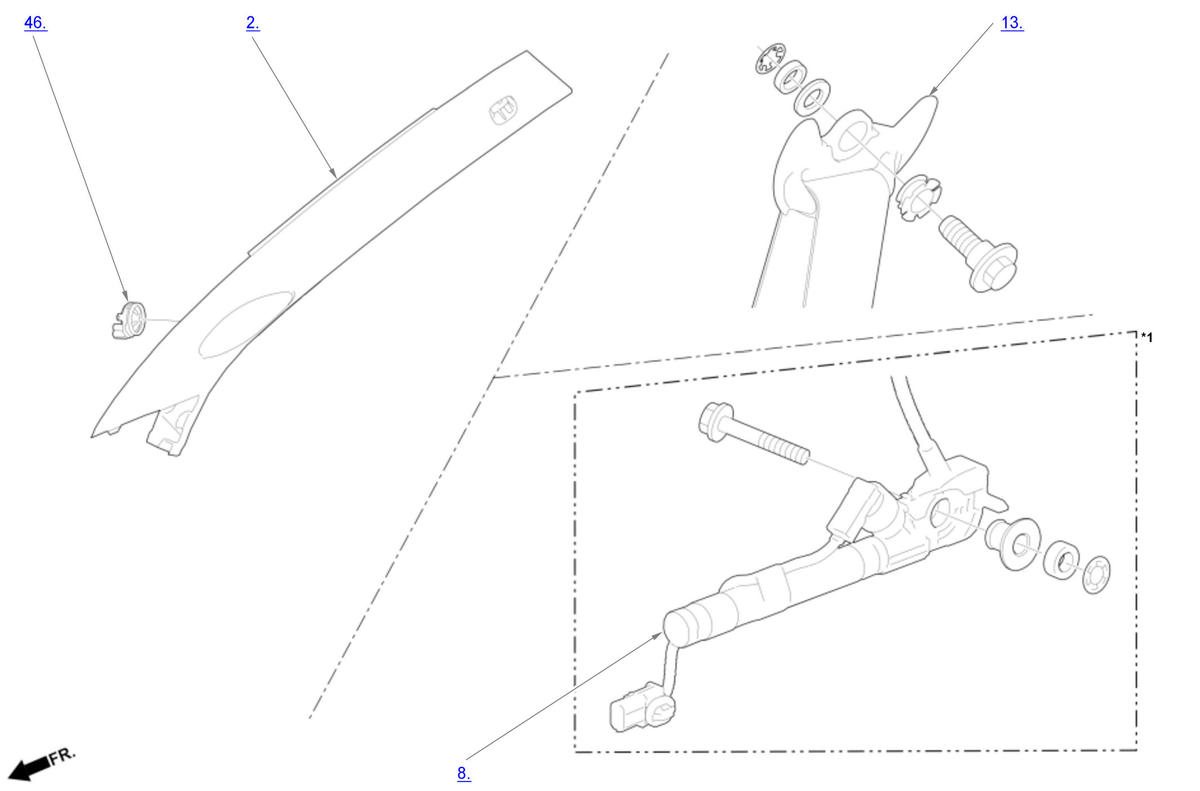

| *1: Driver's side |
Interior Trim Area Components
| Component Name | Callout |
|---|---|
| Front Door Opening Seal | 1 |
| A-Pillar Trim | 2 |
| Seat Belt Shoulder Anchor Adjuster | 3 |
| Rear Door Opening Seal | 4 |
| B-Pillar Upper Trim | 5 |
| Side Impact Sensor (Second) | 6 |
| Rear Side Inner Trim | 7 |
| Front Seat Belt Outer Lap Pretensioner | 8 |
| Front seat belt lower anchor bolt | 9 |
| B-Pillar Lower Trim | 10 |
| Side Impact Sensor (First) | 11 |
| Front Side Outer Trim | 12 |
| Front Seat Belt | 13 |
| C-Pillar Upper Trim | 14 |
| Anchor Lid | 15 |
| Key Cylinder Lid | 16 |
| Rear Shelf Trim | 17 |
| Satellite Speaker | 18 |
| Key Cylinder Bracket | 19 |
| Rear Center Seat Belt | 20 |
| Trunk Light | 21 |
| Key Cylinder | 22 |
| Rear Interior LF Antenna | 23 |
| Rear Seat Belt Buckle | 24 |
| Rear Bulkhead Brace | 25 |
| Brace Trim | 26 |
| Rear Seat-Back Latch | 27 |
| Subwoofer | 28 |
| Rear Left/Right Seat Belt | 29 |
| Belt Hole Cap | 30 |
| C-Pillar Lower Trim | 31 |
| Trunk Floor Cover | 32 |
| Trunk Upper Trim Panel | 33 |
| Rear Seat-Back Release Lever/Cable | 34 |
| Trunk Tool Box | 35 |
| Rear Panel Cap | 36 |
| Trunk Lid Weatherstrip | 37 |
| Trunk Rear Trim Panel | 38 |
| Adaptive Damper Control Unit | 39 |
| Rear Fuse/Relay Box | 40 |
| Fuse Lid | 41 |
| Rear Trunk Side Trim Panel | 42 |
| Rear Vertical Acceleration Sensor | 43 |
| SH-AWD Control Unit | 44 |
| Tuner Unit | 45 |
| Tweeter | 46 |
