DTC Advanced Diagnostics: U0114(PGM-FI System (2.0L Engine))

DTC U0114: PF-CAN Malfunction (Powertrain Control Module (PCM)-SH-AWD Control Unit)

General Description

Courtesy of HONDA, U.S.A., INC.

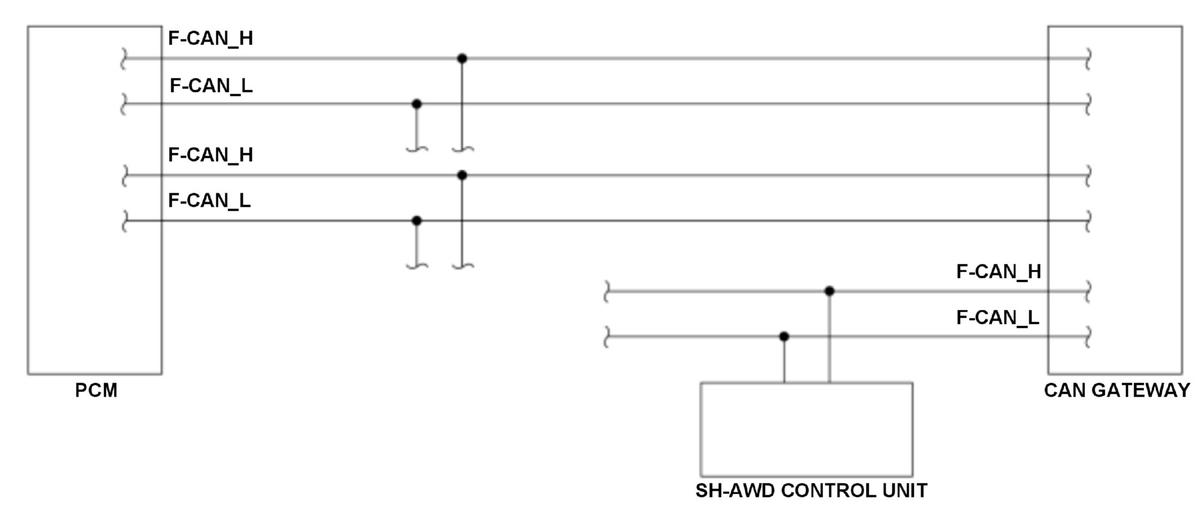

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (F-CAN_H and F-CAN_L). When the information is not sent from the SH-AWD control unit via the F-CAN lines and this condition continues for a specified time or when the information sent from the SH-AWD control unit is abnormal and this condition continues for a specified cycle, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

Execution	Continuous
Sequence	None
Duration	1.5 seconds or more
DTC Type	One drive cycle, MIL off

Enable Conditions

Condition	Minimum	Maximum
Elapsed time after the vehicle condition is turned to the ON mode	3 seconds	-
12 volt battery voltage [Battery]	10.0 V	-

[ ]: HDS Parameter

Malfunction Threshold

The PCM cannot receive any signals from the SH-AWD control unit via the F-CAN lines unit for at least 1.5 seconds.
The information sent from the SH-AWD control unit is abnormal at least 20 times.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

PF-CAN circuit PF-CAN A_H line open
PF-CAN circuit PF-CAN A_L line open
PF-CAN circuit PF-CAN A_H line short to ground
PF-CAN circuit PF-CAN A_L line short to ground
PF-CAN circuit PF-CAN B_H line open
PF-CAN circuit PF-CAN B_L line open
PF-CAN circuit PF-CAN B_H line short to ground
PF-CAN circuit PF-CAN B_L line short to ground
VF-CAN circuit VF-CAN B_H line open
VF-CAN circuit VF-CAN B_L line open
VF-CAN circuit VF-CAN B_H line short to ground
VF-CAN circuit VF-CAN B_L line short to ground
SH-AWD control unit failure (include fuse fall-outs)
PCM internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
