Exploded View

For replacement of components listed below, see Repair Procedure .

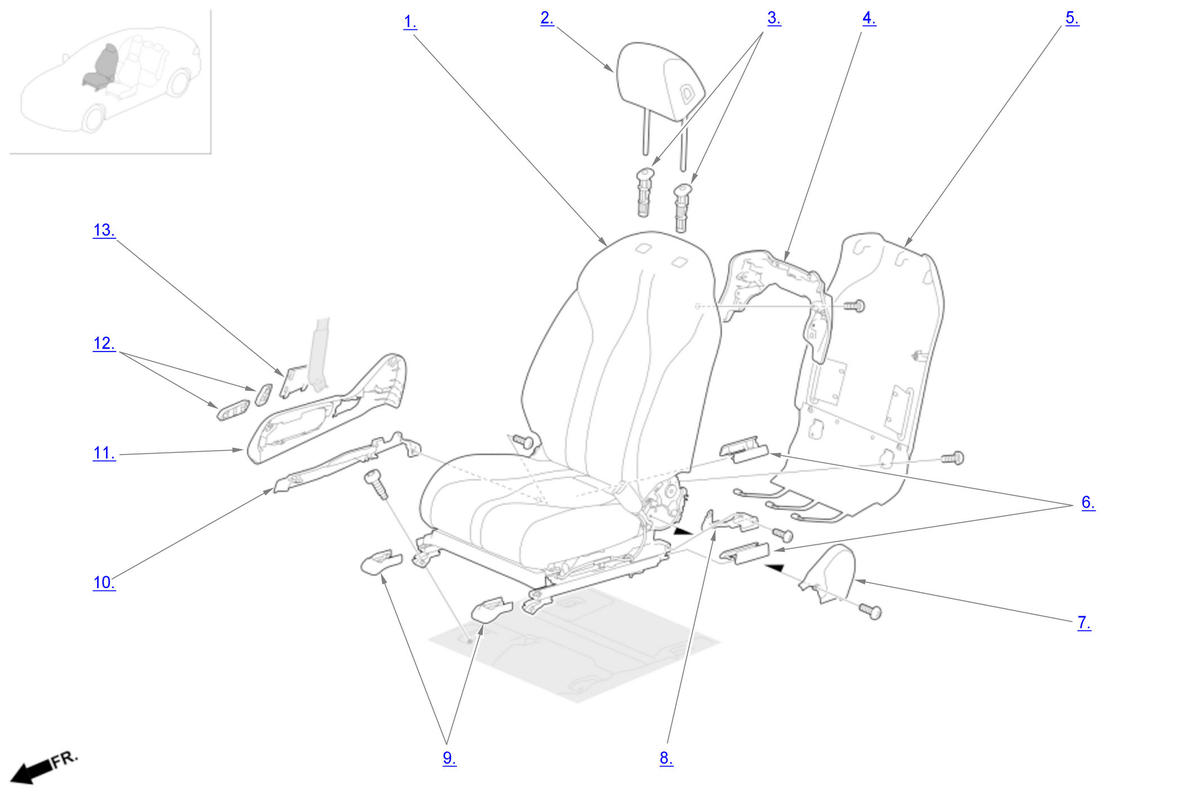

GHH561444Courtesy of HONDA, U.S.A., INC.

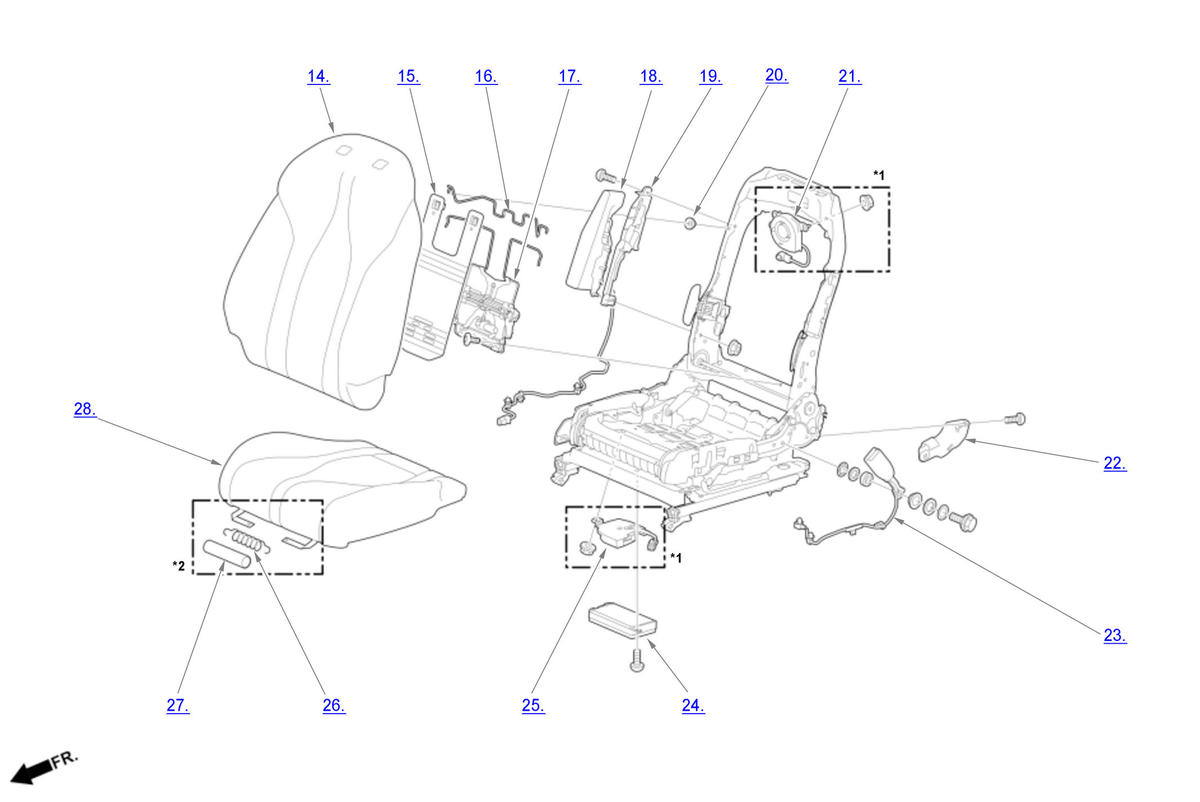

GHH561445Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat

*2: With 16-way power seat

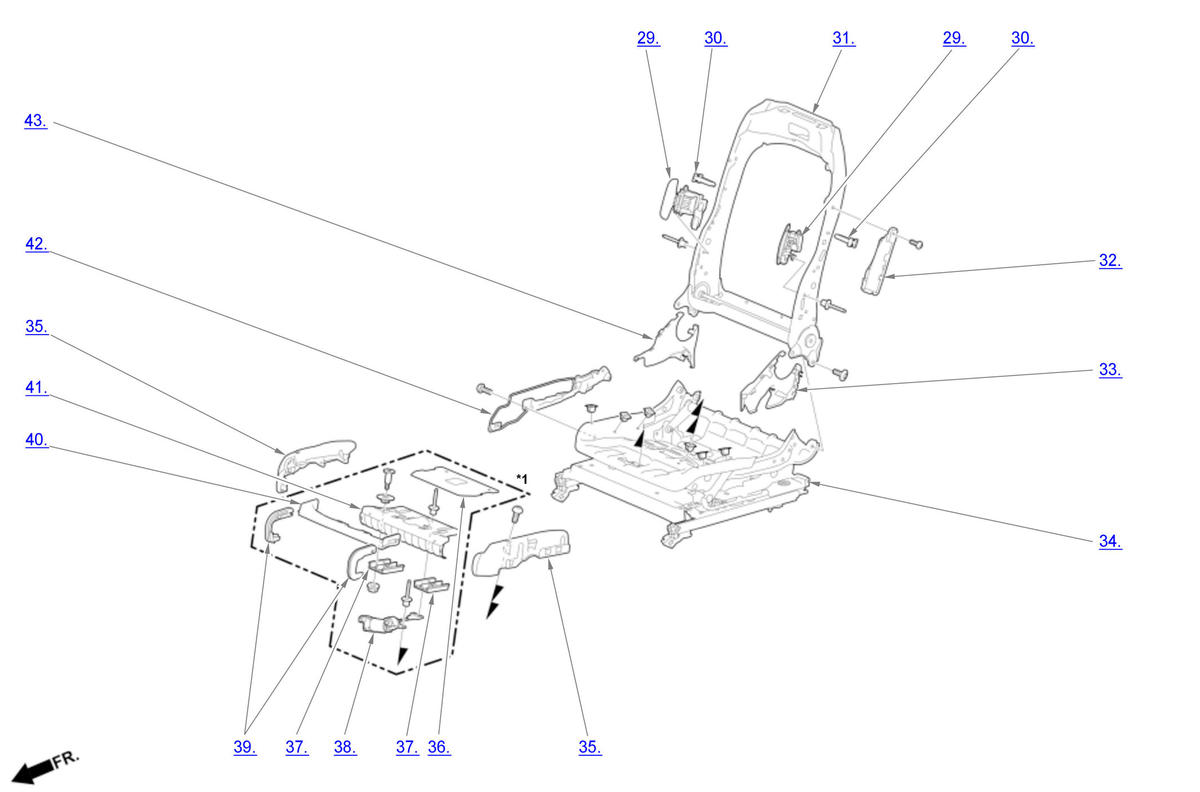

GHH561446Courtesy of HONDA, U.S.A., INC.
*1: With 16-way power seat

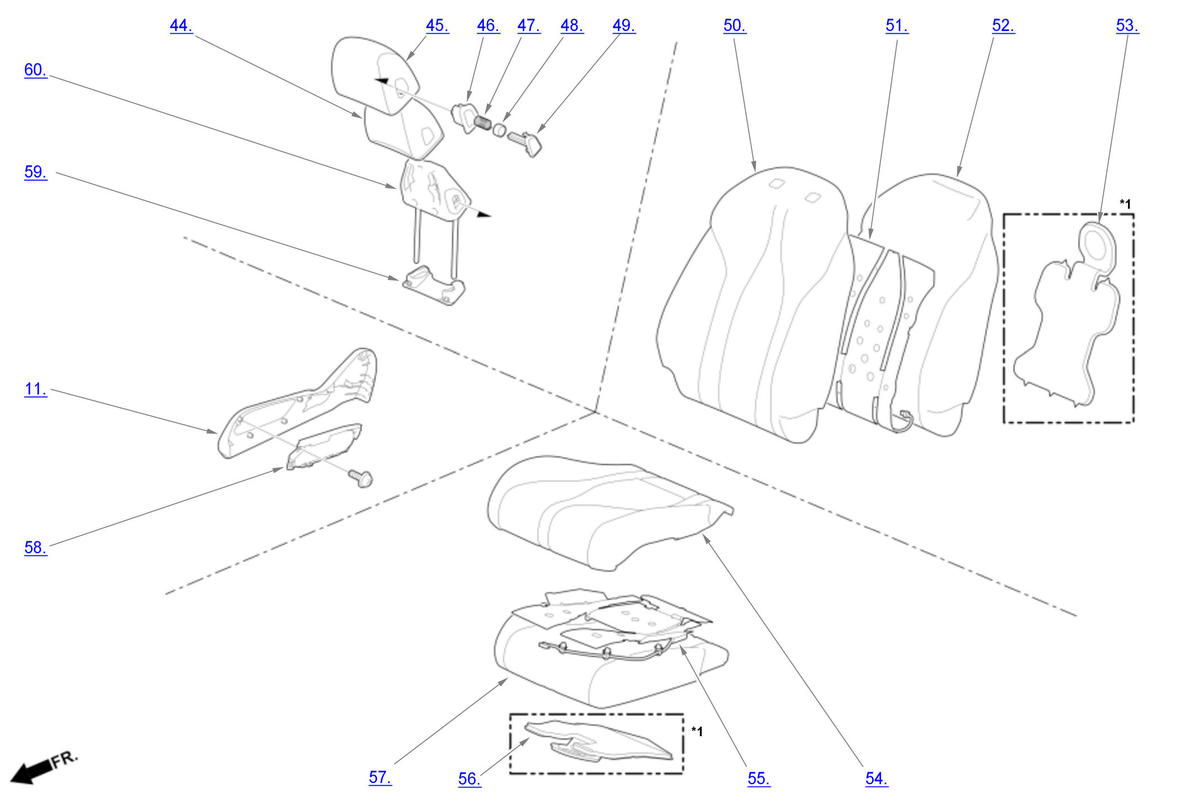

GHH561447Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat
Front Seat Area Components

Component Name Callout
Front Passenger's Seat 1
Head Restraint 2
Head Restraint Guide 3
Front Passenger's Seat-Back Inner Cover 4
Front Passenger's Seat-Back Outer Panel 5
Front Passenger's Seat Rear Foot Cover 6
Front Passenger's Seat Inner Recline Cover 7
Upper Rail Inner Cover 8
Front Passenger's Seat Front Foot Cover 9
Upper Rail Outer Cover 10
Front Passenger's Seat Outer Recline Cover 11
Knobs 12
Lower Anchor Cover 13
Front Passenger's Seat-Back Cover/Pad 14
Lumbar Support Mat 15
Lumbar Support Upper Wire 16
Front Passenger's Seat Lumbar Support 17
Right Side Airbag 18
Right Side Airbag Holder 19
Lumbar Support Upper Wire Bushing 20
Front Passenger's Seat-Back Blower Motor 21
Height Motor Cover 22
Front Passenger's Seat Belt Buckle 23
Power Seat Control Unit 24
Front Passenger's Seat Cushion Blower Motor 25
Spring 26
Tube 27
Front Passenger's Seat Cushion Cover/Pad 28
Bolster Motor 29
Lumbar Support Lower Wire Clip 30
Front Passenger's Seat-Back Frame 31
Seat-Back Bolster Cover 32
Recline Inner Cover 33
Front Passenger's Seat Cushion Frame 34
Front Passenger's Seat Cushion Bolster Cover 35
Power Thigh Support Carrier Cover 36
Power Thigh Support Carrier Slider 37
Power Thigh Support Motor 38
Carrier Side Cover 39
Power Thigh Support Plate 40
Power Thigh Support 41
Front Passenger's Seat Cushion Outer Bracket 42
Recline Outer Cover 43
Head Restraint Trim Pad 44
Head Restraint Trim Cover 45
Head Restraint Button Trim 46
Head Restraint Button Spring 47
Head Restraint Button Spring Cover 48
Head Restraint Adjust Button 49
Front Passenger's Seat-Back Cover 50
Front Passenger's Seat-Back Heater 51
Front Passenger's Seat-Back Pad 52
Front Passenger's Seat-Back Ventilation Bag 53
Front Passenger's Seat Cushion Cover 54
Front Passenger's Seat Cushion Heater 55
Front Passenger's Seat Cushion Ventilation Bag 56
Front Passenger's Seat Cushion Pad 57
Front Passenger's Power Seat Adjustment Switch/Knob/Outer Recline Cover 58
Head Restraint Under Trim 59
Head Restraint Frame 60
