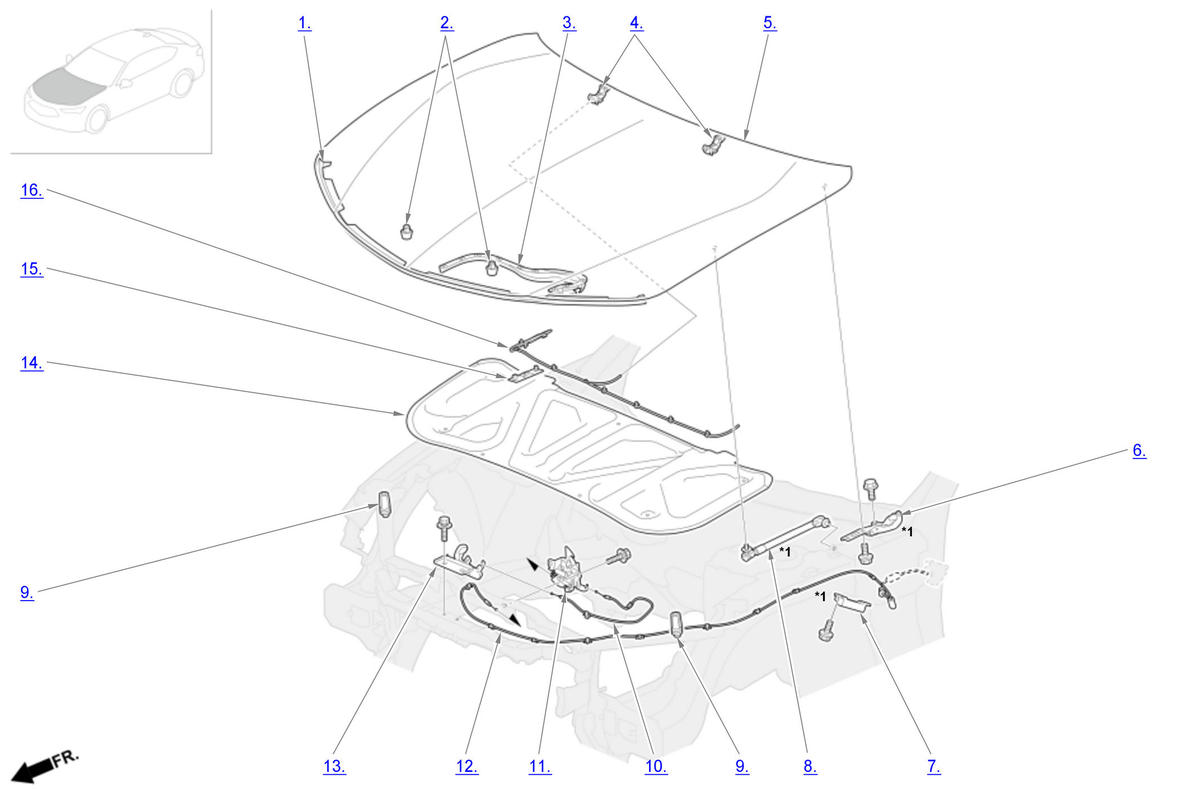

Exploded View
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |
Hood Area Components
| Component Name | Callout |
|---|---|
| Hood Seal | 1 |
| Hood Cushion | 2 |
| Intake Seal | 3 |
| Windshield Washer Nozzle | 4 |
| Hood | 5 |
| Hood Hinge | 6 |
| Front LF Antenna/Initiator | 7 |
| Hood Support Strut | 8 |
| Hood Edge Cushion | 9 |
| Hood Opener Remote Cable | 10 |
| Hood Latch | 11 |
| Hood Opener Cable | 12 |
| Hood Lever | 13 |
| Hood Insulator | 14 |
| Clip | 15 |
| Windshield Washer Tube | 16 |
