Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

A.-

WARNING:

Do not insert your fingers into the installed throttle body when you turn the vehicle to the ON mode, or while the vehicle is in ON mode. If you do, you will seriously injure your fingers if the throttle valve is activated.

Key Information

Do the following before starting your work.

Remove:

Throttle Body Inlet Hose - Refer to: Intercooler Area (2.0L Engine)

Sub-Procedure

Removal

NOTE:

If you are replacing the throttle body, do all of the procedures.
If you are removing the throttle body, start from step 6.

1. Connect the HDS .

2. Clear the throttle position (TP) learned value.

Select the following menu buttons on the HDS screen in sequence.
1. PGM-FI (System Selection Menu)
2. Function Test
3. ETCS (TAC) TEST
4. TP POSITION CHECK

3. Turn the vehicle to the OFF (LOCK) mode.

4. Turn the vehicle to the ON mode, and wait 2 seconds without pressing the accelerator pedal.

5. Turn the vehicle to the OFF (LOCK) mode.

6. Remove the throttle body.

NOTE:

Plug the water bypass hoses.
Be careful not to drop the throttle flange plates to prevent other parts from damaging.

Installation

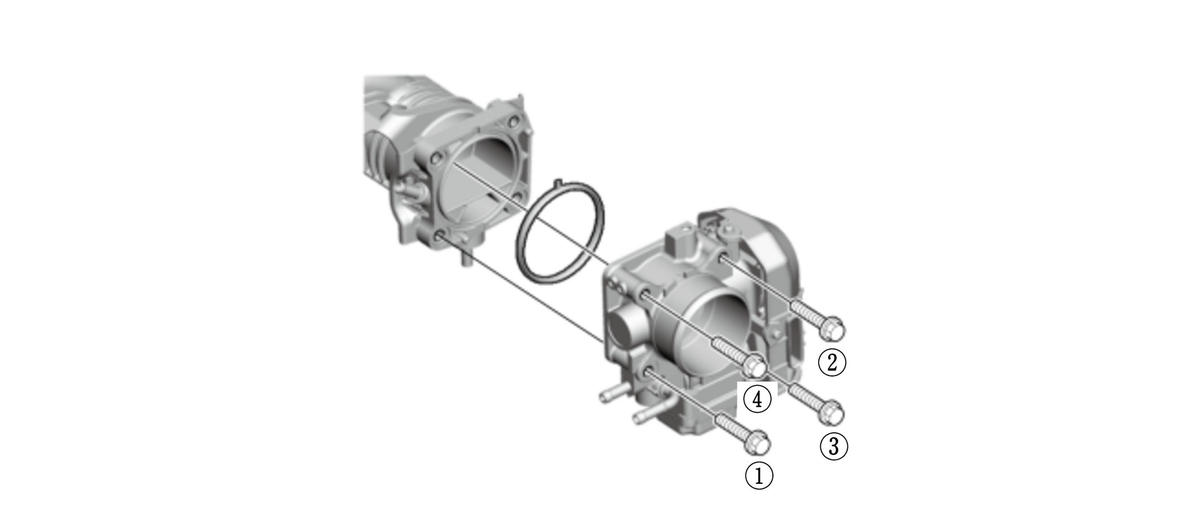

Refer to the figure.

Tightening Procedure

Step	Operation	Object	Detail
1	Temporarily Tighten	All Bolts	Until they sit on the throttle body
2	Temporarily Tighten	All Bolts	Until the gasket is compressed
3	Tighten	All Bolts	-> -> ->

Courtesy of HONDA, U.S.A., INC.

After Installation

Engine Coolant Refill - Refer to: Coolant Check(2.0L Engine) or Coolant Replacement(2.0L Engine)
PCM Reset - Refer to: PCM Reset
PCM Idle Learn

B.-
WARNING:
Flammable - Keep Fire Away

NOTE:
Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.

Key Information

Do the following before starting your work.

Remove:
- Cylinder Head Cover Area Parts - Refer to: Cylinder Head Cover Area(2.0L Engine)
  1. -
    Engine Cover
  2. -
    EVAP Canister Purge Valve
Sub-Procedure

Installation
- Make sure the hose clamps are properly positioned and tightened .

C.-

Sub-Procedure

Installation

Lubricant Specifications

Object	Type
O-Ring	Engine Oil

D.-
WARNING:
Flammable - Keep Fire Away
NOTE:
- Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
- Refer to the Fuel Line/ Quick-Connect Fitting Precautions before doing the procedure.
Preconditions
- Fuel Pressure Relieved - Refer to: Fuel Pressure Relieving
- 12 Volt Battery Negative Terminal Disconnected
Key Information

Do the following before starting your work.

Remove:
- Engine Cover - Refer to: Cylinder Head Cover Area(2.0L Engine)
- Cowl Cover Lid
After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Fuel Leak Check (Low Pressure Side)
E.-
NOTE:
Refer to the Fuel Line/ Quick-Connect Fitting Precautions before removing the fuel line/quick-connect fitting cover.

Key Information

Do the following before starting your work.

Remove:
- Cowl Cover Lid
F.-
NOTE:
Refer to the Fuel Line/ Quick-Connect Fitting Precautions before removing the fuel line/quick-connect fitting cover.

Key Information

Do the following before starting your work.

Remove:
- Engine Cover - Refer to: Cylinder Head Cover Area(2.0L Engine)

G.-

NOTE: When removing the throttle body, it is not necessary to disconnect the water bypass hoses from the throttle body.

Key Information

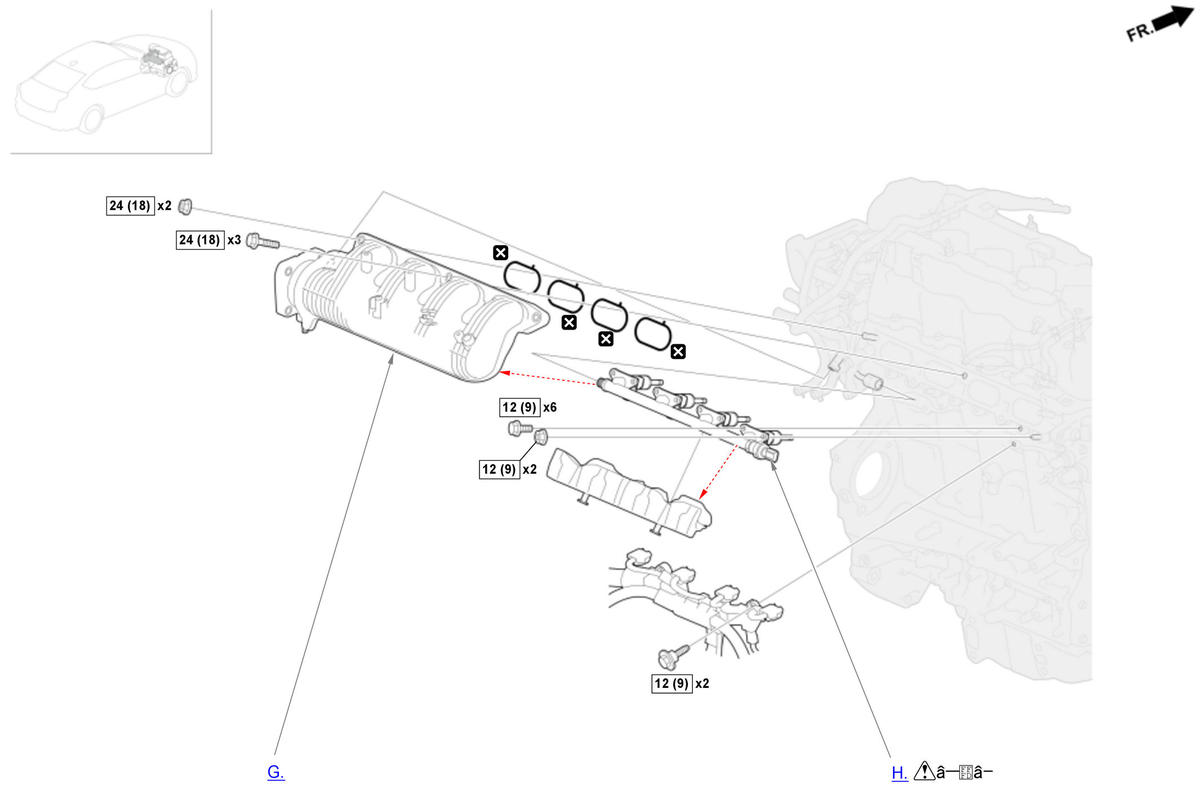

NOTE: For the removal and installation procedure, refer to Intake Manifold Removal and Installation - Refer to: Intake Manifold Removal and Installation(2.0L Engine) and the sub-procedure below.

Sub-Procedure

Installation

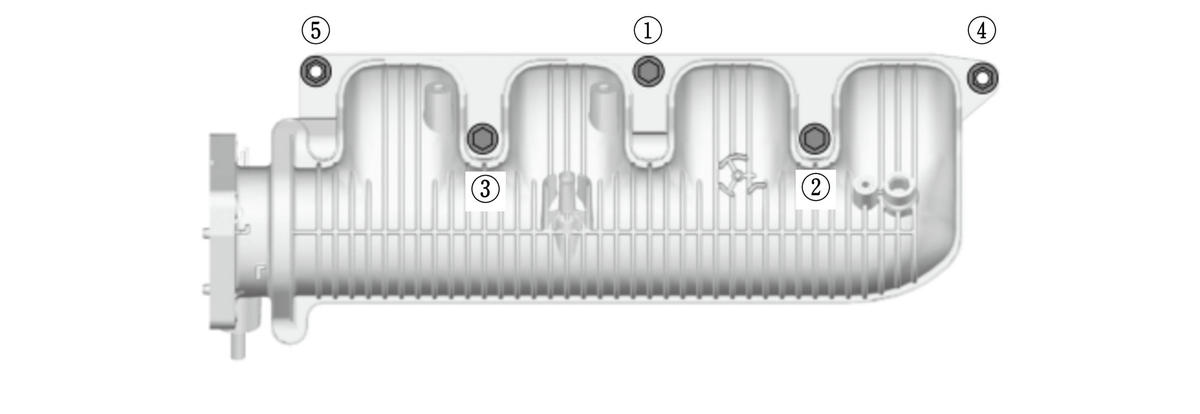

Refer to the Figure.

Tightening Procedure

Step	Operation	Object	Detail
1	Temporary Tighten	All Bolts and Nuts	Until they sit on the intake manifold
2	Temporary Tighten	All Bolts and Nuts	Until the gasket is compressed
3	Tighten	All Bolts and Nuts	-> -> -> ->

Courtesy of HONDA, U.S.A., INC.

H.-

WARNING:

Flammable - Keep Fire Away

NOTE:

Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
Refer to the Fuel Line/ Quick-Connect Fitting Precautions before doing the procedure.

Preconditions

Fuel Pressure Relieved - Refer to: Fuel Pressure Relieving
12 Volt Battery Negative Terminal Disconnected

Key Information

NOTE: For the removal and installation procedure, refer to Injector Removal and Installation - Refer to: Injector Removal and Installation(2.0L Engine) and the sub-procedure below.

Sub-Procedure

NOTE:

When replacing a injector, you must replace all injectors as an assembly and the fuel joint pipe. Failure to do so will cause poor engine performance and fuel leaks.
If you will reuse the injector after removal, note the cylinder number and install it to the same cylinder.

Removal

1. Carefully remove the fuel rail with the injectors straight from the cylinder head.

NOTE:

If the injector remains on the cylinder head, carefully remove the injector straight from the cylinder head.

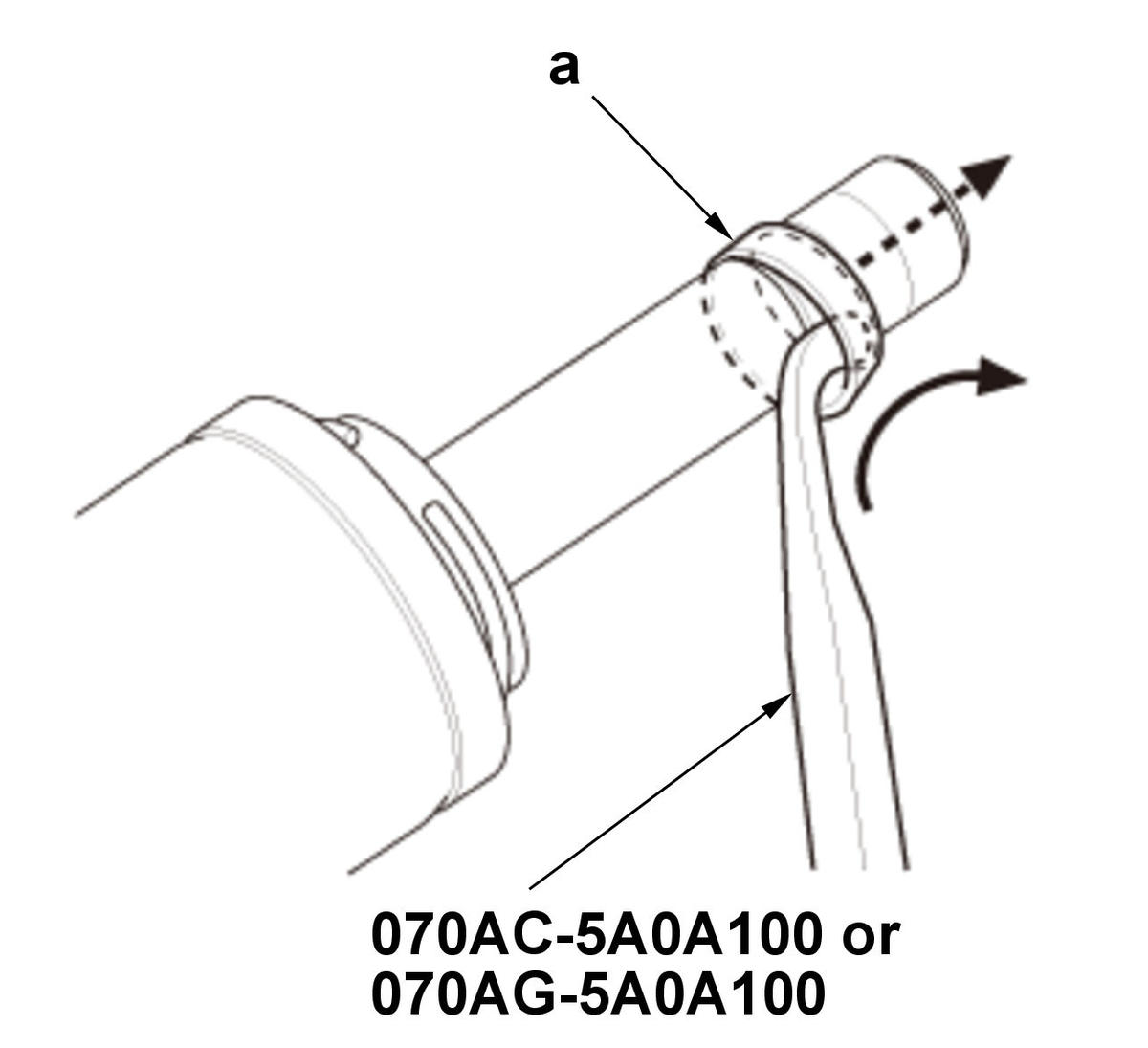

2. Carefully remove the seal (a) from the injector. (Figure 1)

Figure 1

Courtesy of HONDA, U.S.A., INC.

Installation

NOTE:

Do not wipe off the tip area (b) of the injector as it may be damaged. (Figure 2)
If the tip of the injector is dirty or clogged, it must be replaced. The tip of the injector cannot be cleaned.
Be sure to protect the injector from dust or debris.

1. Use compressed air to insure that there are no dust or debris around the ring (c). (Figure 2)

Figure 2

Courtesy of HONDA, U.S.A., INC.

2. With a paper towel, carefully wipe off any carbon from the area (d) shown. (Figure 2)

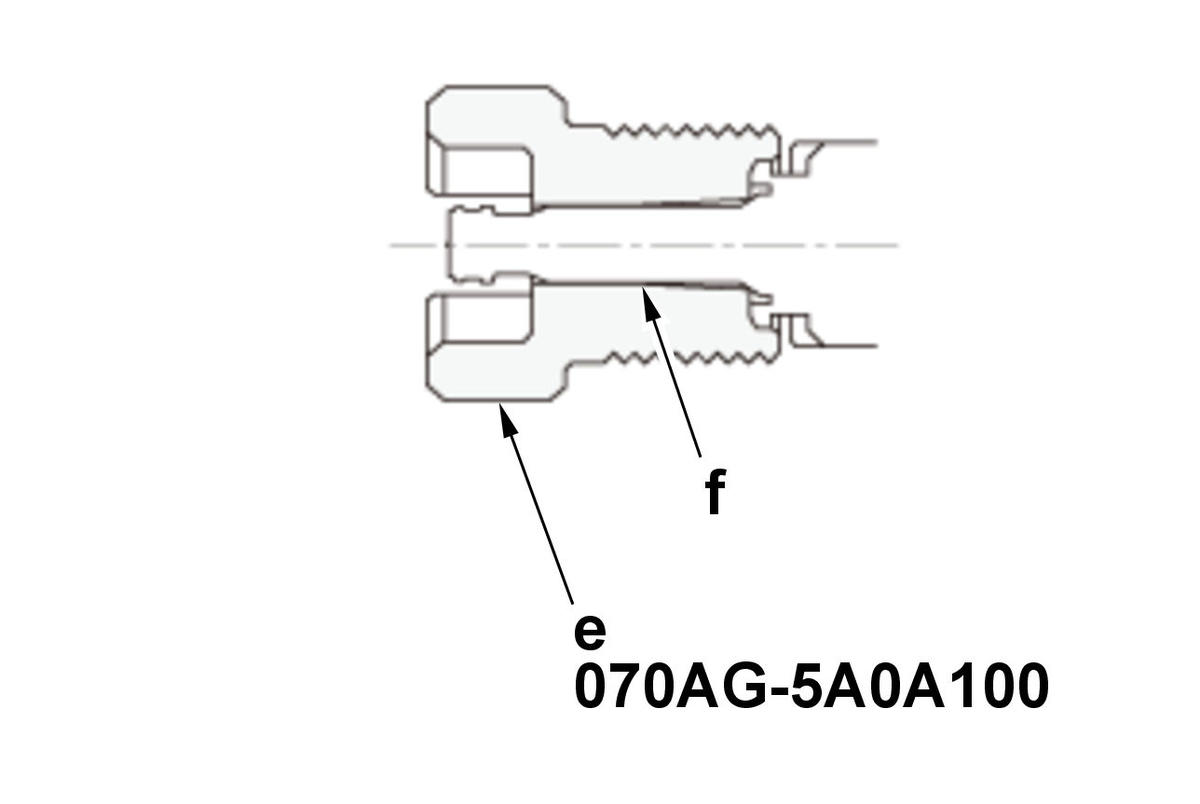

3. Install the sizing tool (e) to the injector (f) as shown. (Figure 3)

NOTE:

Do not allow the tool to come in contact with the tip of the injector.

Figure 3

Courtesy of HONDA, U.S.A., INC.

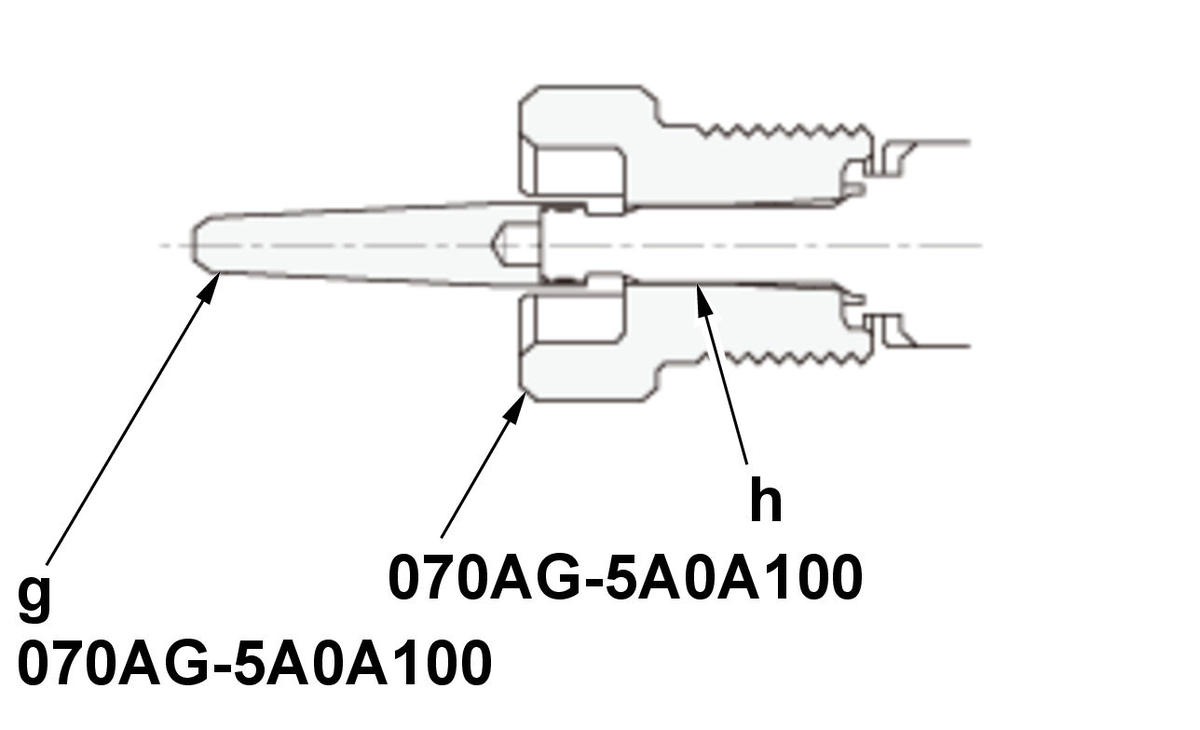

4. Install the seal guide (g) over the tip of the injector (h) as shown. (Figure 4)

Figure 4

Courtesy of HONDA, U.S.A., INC.

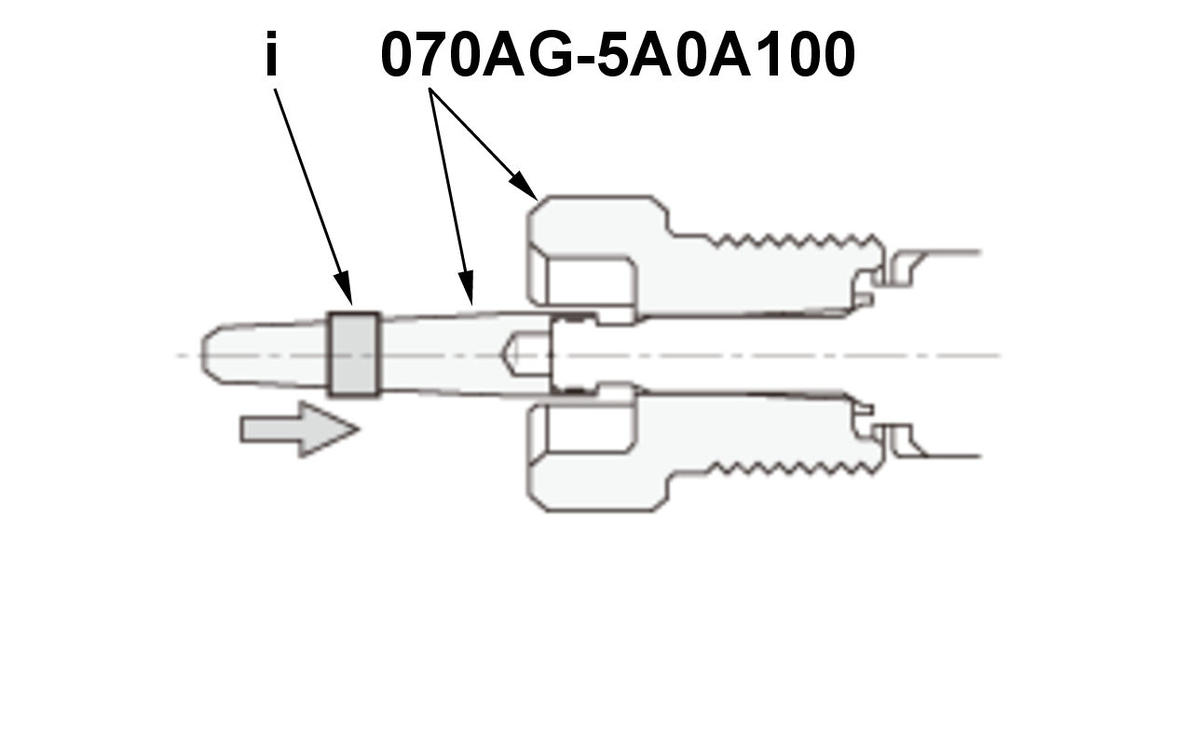

5. Slide the seal (i) on the seal guide as shown. (Figure 5)

Figure 5

Courtesy of HONDA, U.S.A., INC.

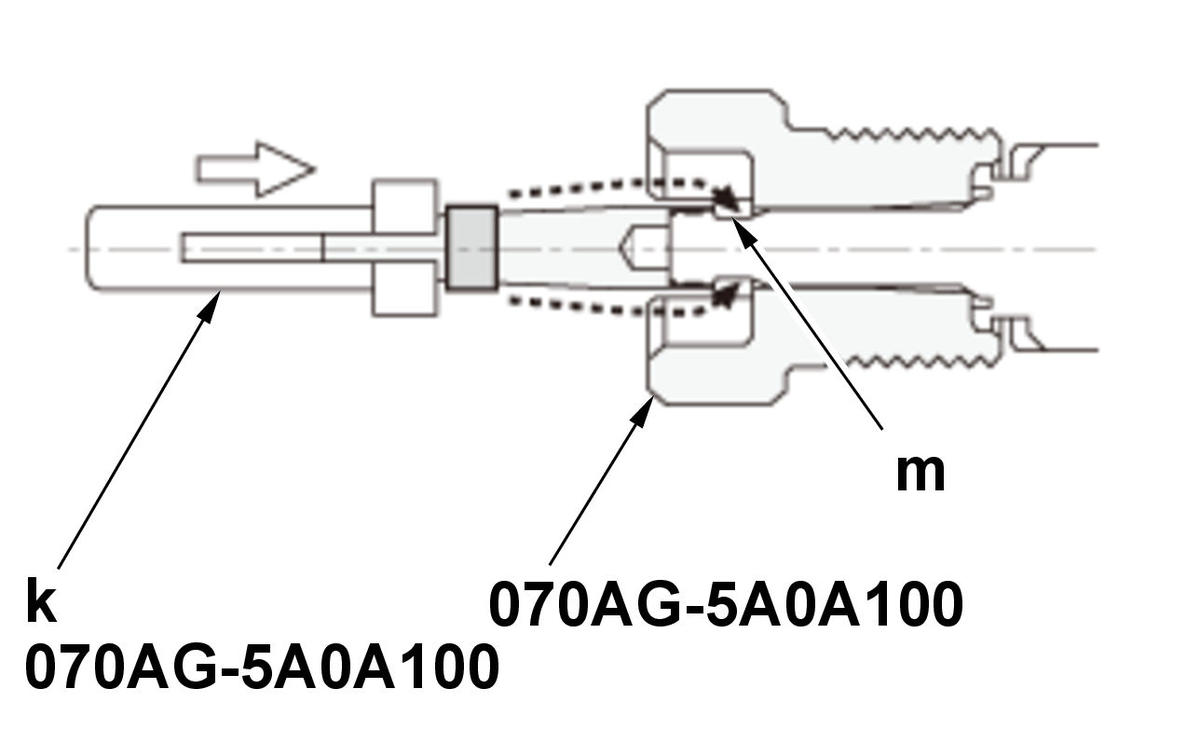

6. Slide the seal installer (k) onto the seal guide, then quickly push the seal down to the groove (m) of the injector. (Figure 6)

Figure 6

Courtesy of HONDA, U.S.A., INC.

7. Remove the seal guide and the seal installer from the injector.

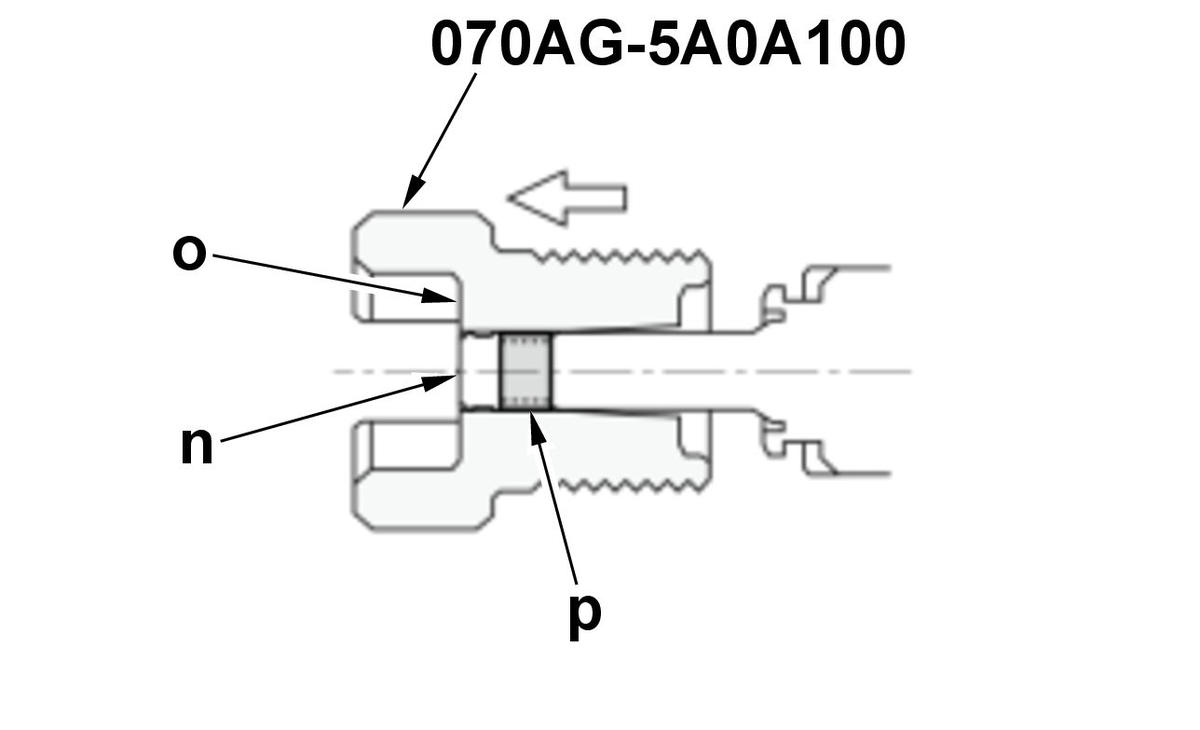

8. Move the sizing tool and align the top of the injector surface (n) and the tool's inner surface (o) as shown, and hold the tool to reform the seal for 30 seconds or more. (Figure 7)

NOTE:

Make sure the seal (p) is not deformed when moving the tool. (Figure 7)

Figure 7

Courtesy of HONDA, U.S.A., INC.

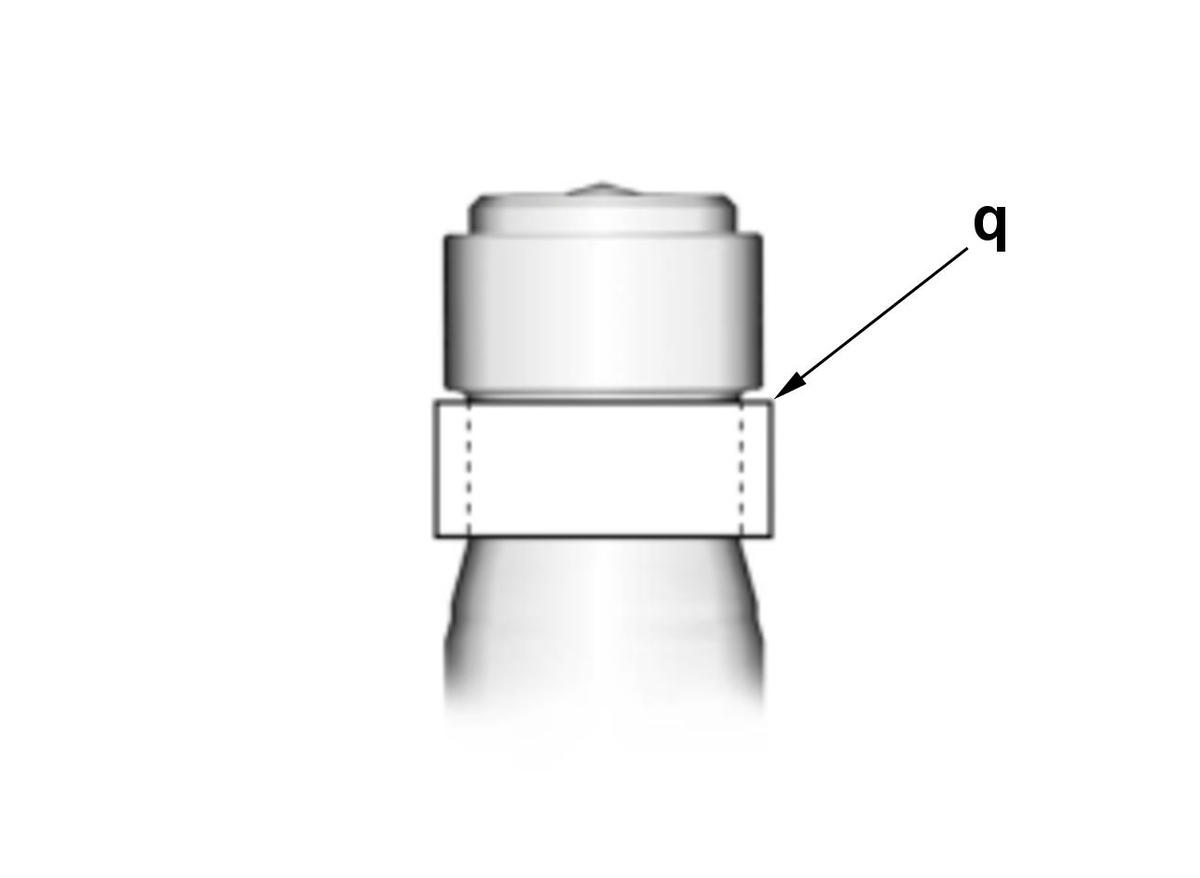

9. Remove the sizing tool, and check that the seal (q) is installed correctly. (Figure 8)

NOTE:

When cleaning the sizing tool and the seal guide, be careful not to scratch the sizing tool bore or the surface of the seal guide.

Figure 8

Courtesy of HONDA, U.S.A., INC.

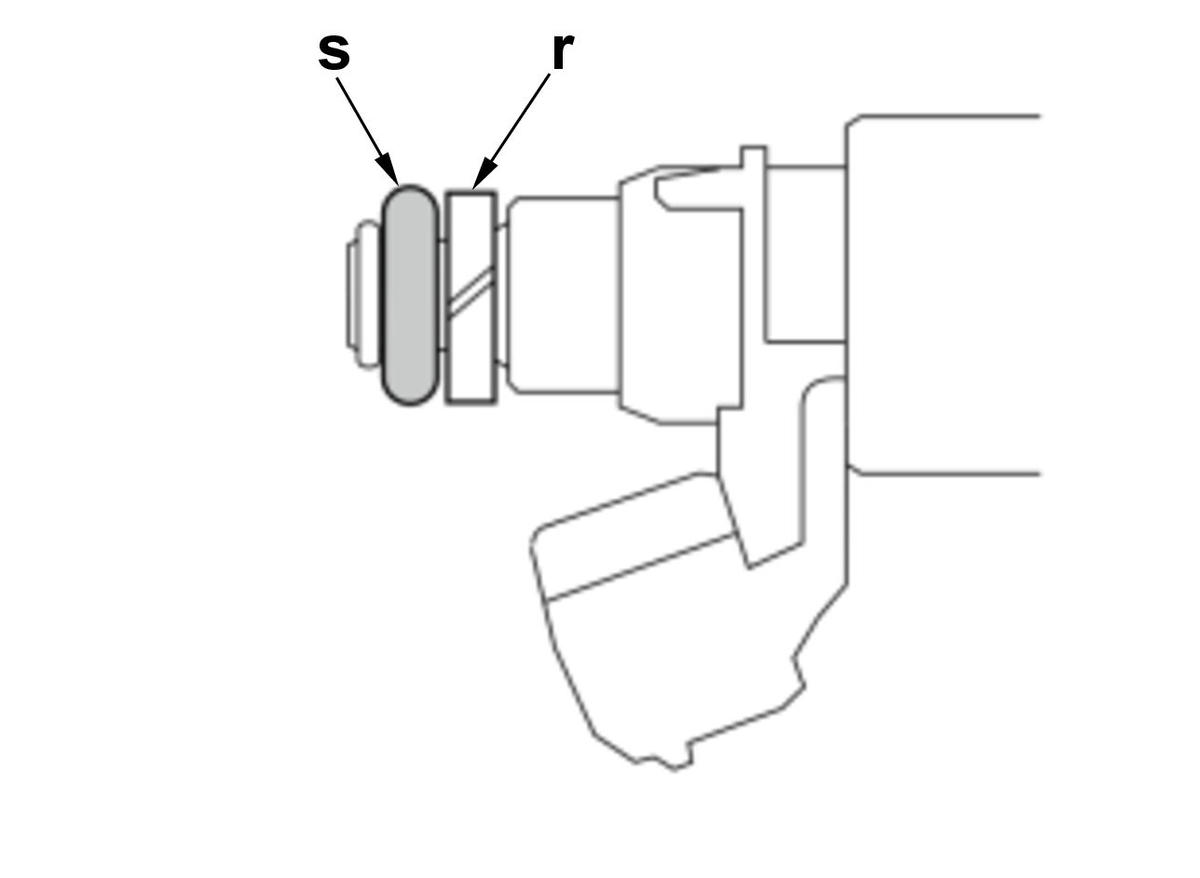

10. Make sure that the back-up ring (r) is not deformed. (Figure 9)

Lubricant Specifications (Figure 9)

Position	Type
s	Engine Oil

Figure 9

Courtesy of HONDA, U.S.A., INC.

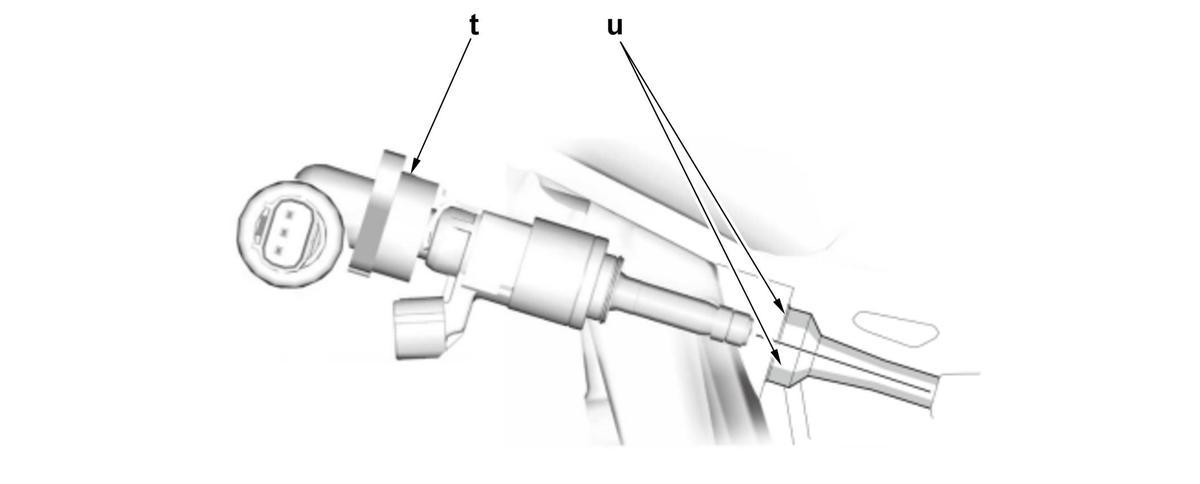

11. Carefully install the fuel rail (t) with the injectors into the cylinder head straight and equal. (Figure 10)

NOTE:

Protect the tip of the injector from dust or debris.

Lubricant Specifications (Figure 10)

Position	Type
u	Engine Oil

Figure 10

Courtesy of HONDA, U.S.A., INC.

Tightening Procedure

Step	Operation	Object	Detail
1	Temporary Tighten	All Nuts	Alternately, until the fuel rail sits on the cylinder head
2	Tighten	All Bolts and Nuts	Specified Torque

After Installation

12 Volt Battery Negative Terminal Reconnect
Fuel Leak Check (High Pressure Side)

I.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

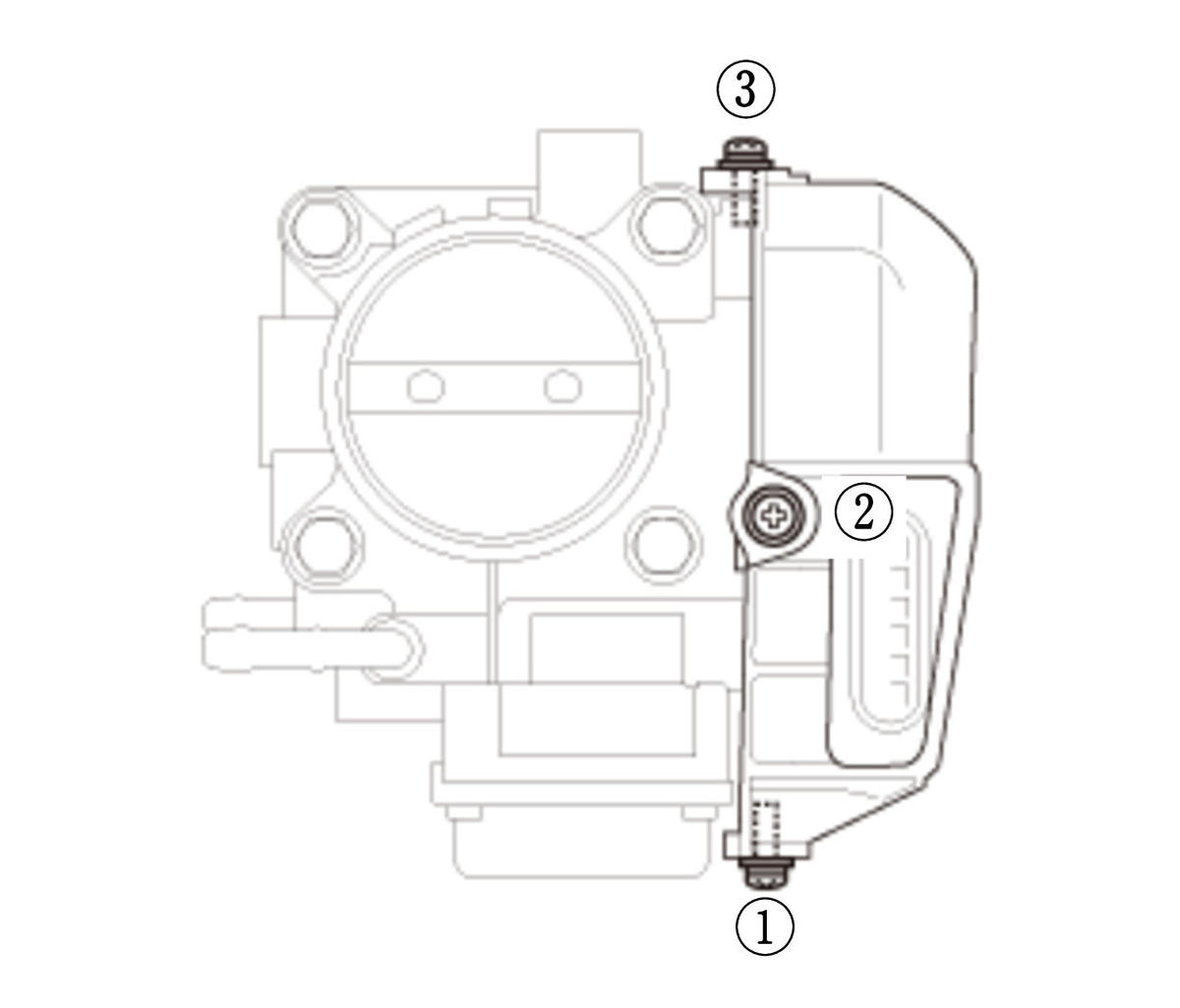

- Tighten the screws in sequence shown.
