Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: ■SPL Tool

: Required Removal

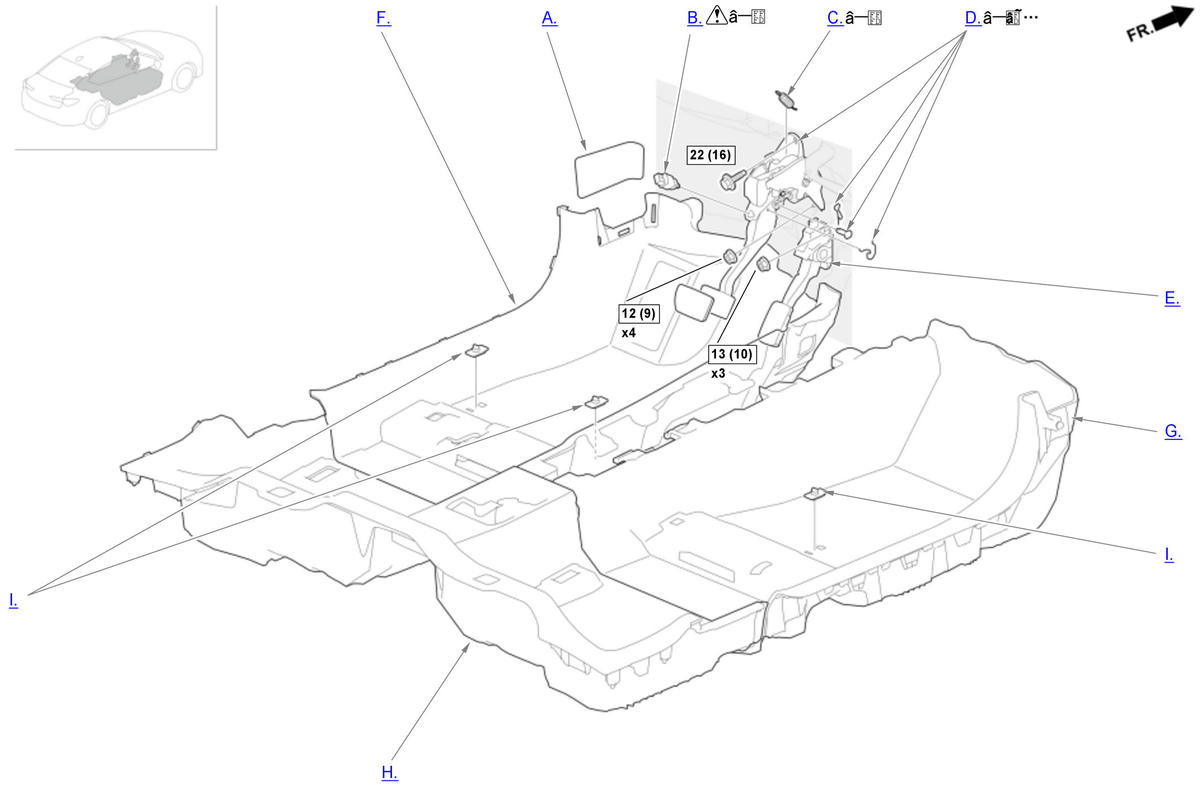

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-
   WARNING:

   Do not connect the brake pedal position switch connector with the brake pedal position switch removed. The engine may start if the start/stop button is pressed as the system interprets that the brake pedal is depressed. Unintended starting of the engine is dangerous.

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

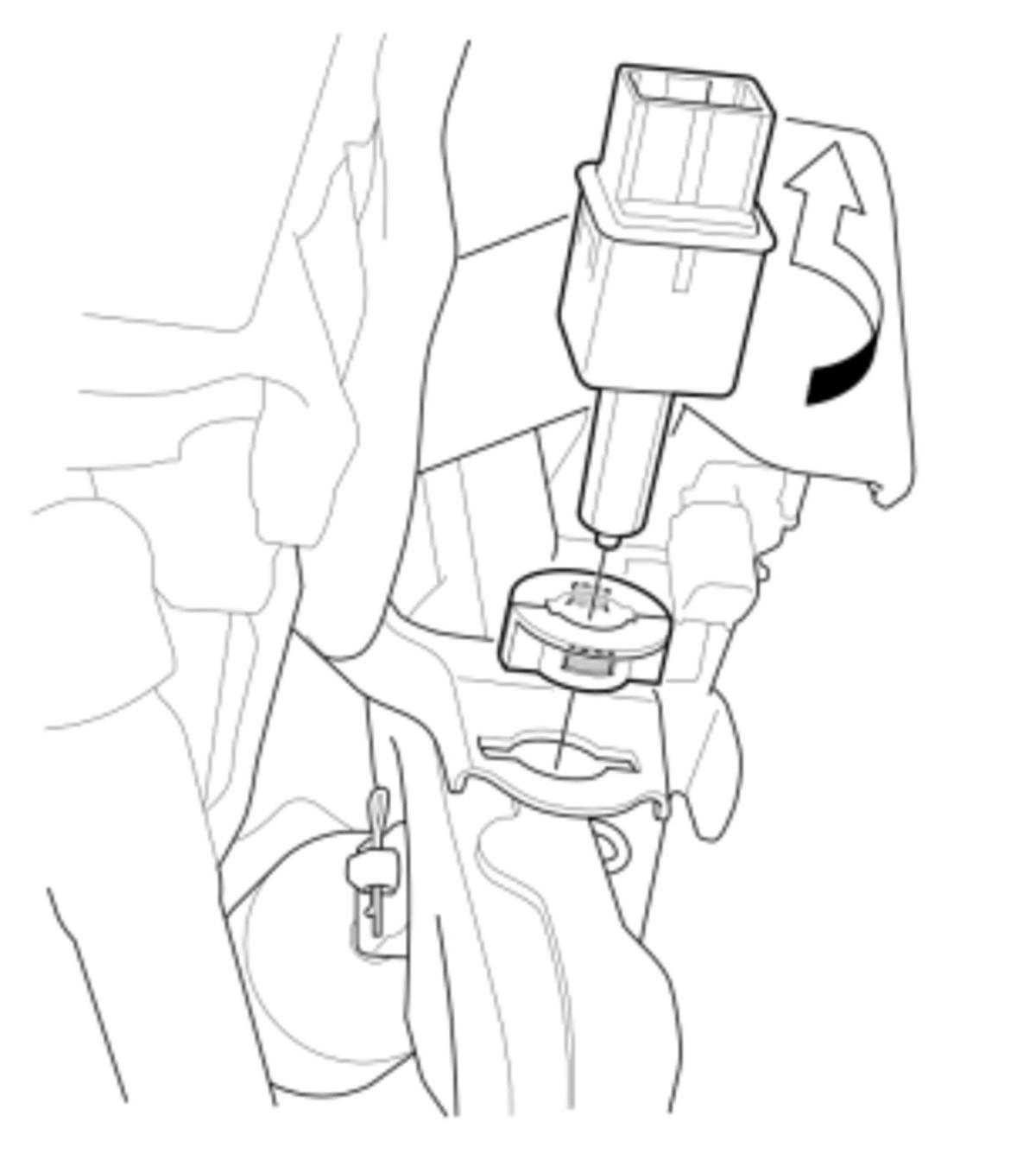

   • Refer to the figure.

   After Installation

   • Brake Pedal Position Switch Adjustment
3. C.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Driver's Knee Airbag

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Lubricant Specifications

   Position	Type
   a	Multipurpose Grease

4. D.-
   NOTE:

   Do not remove the brake pedal stroke sensor from the brake pedal.

   Key Information

   Do the following before starting your work.

   Remove:

   • Driver's Knee Airbag

   Sub-Procedure

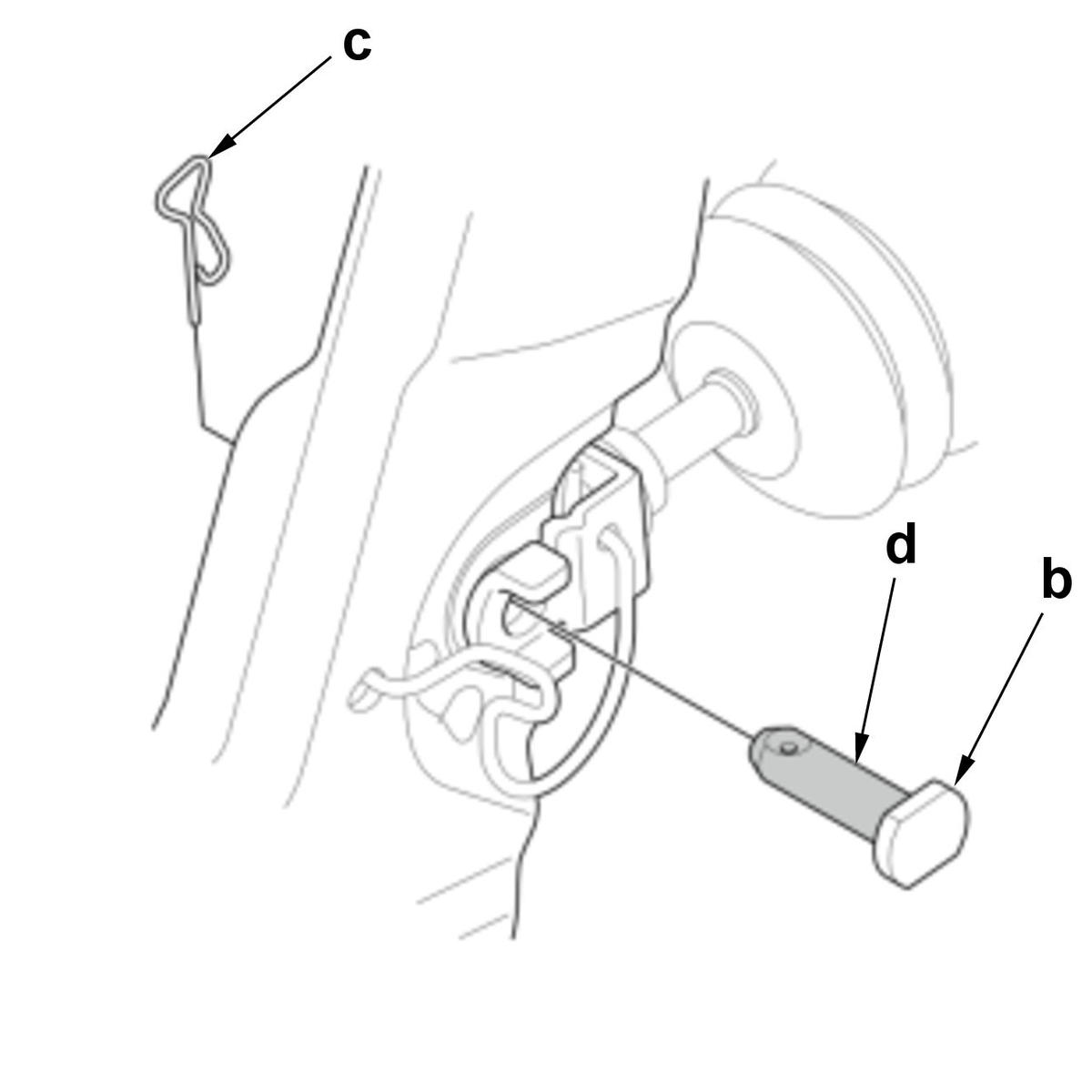

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

   Refer to the figure 1 and 2.

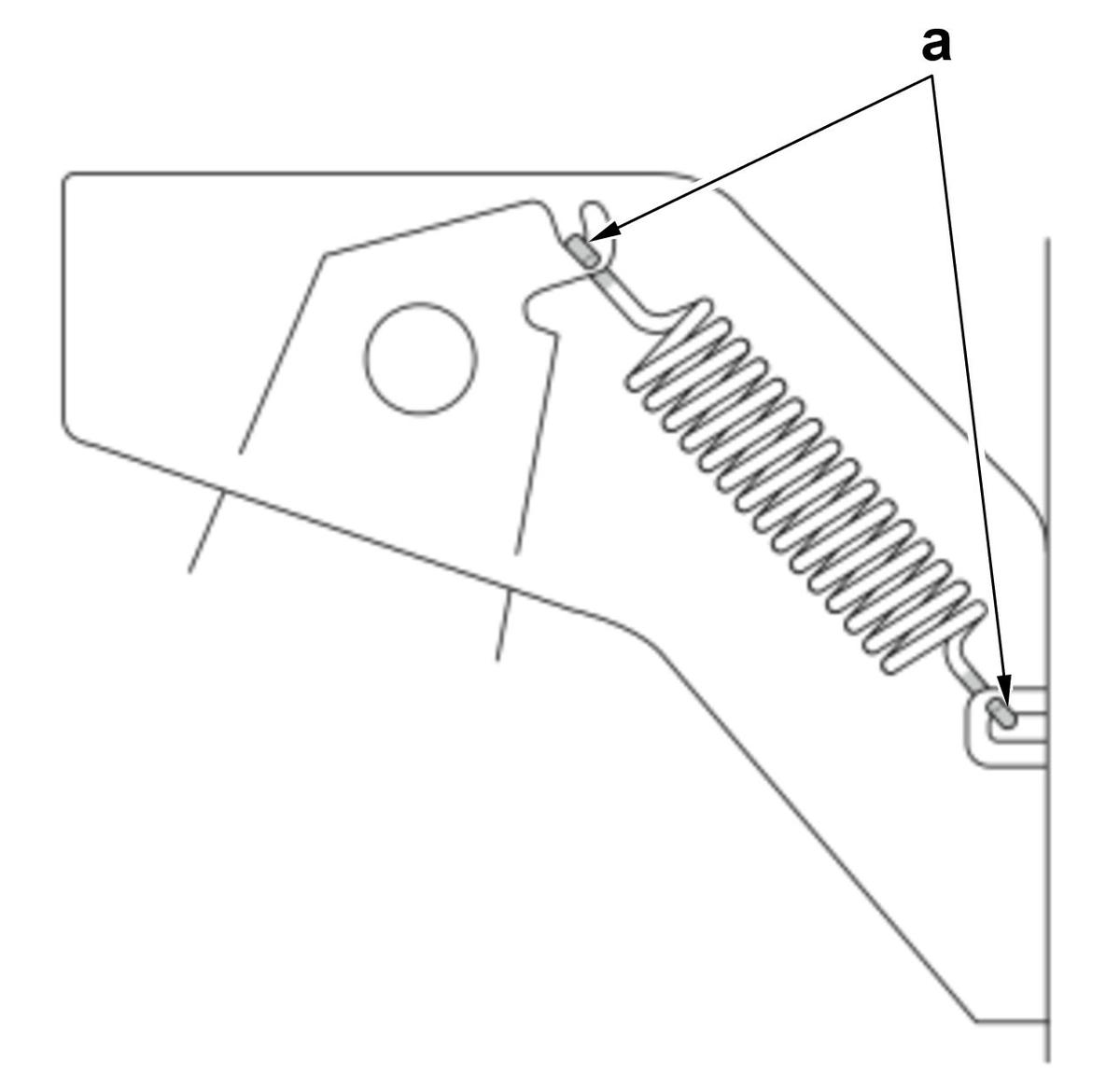

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

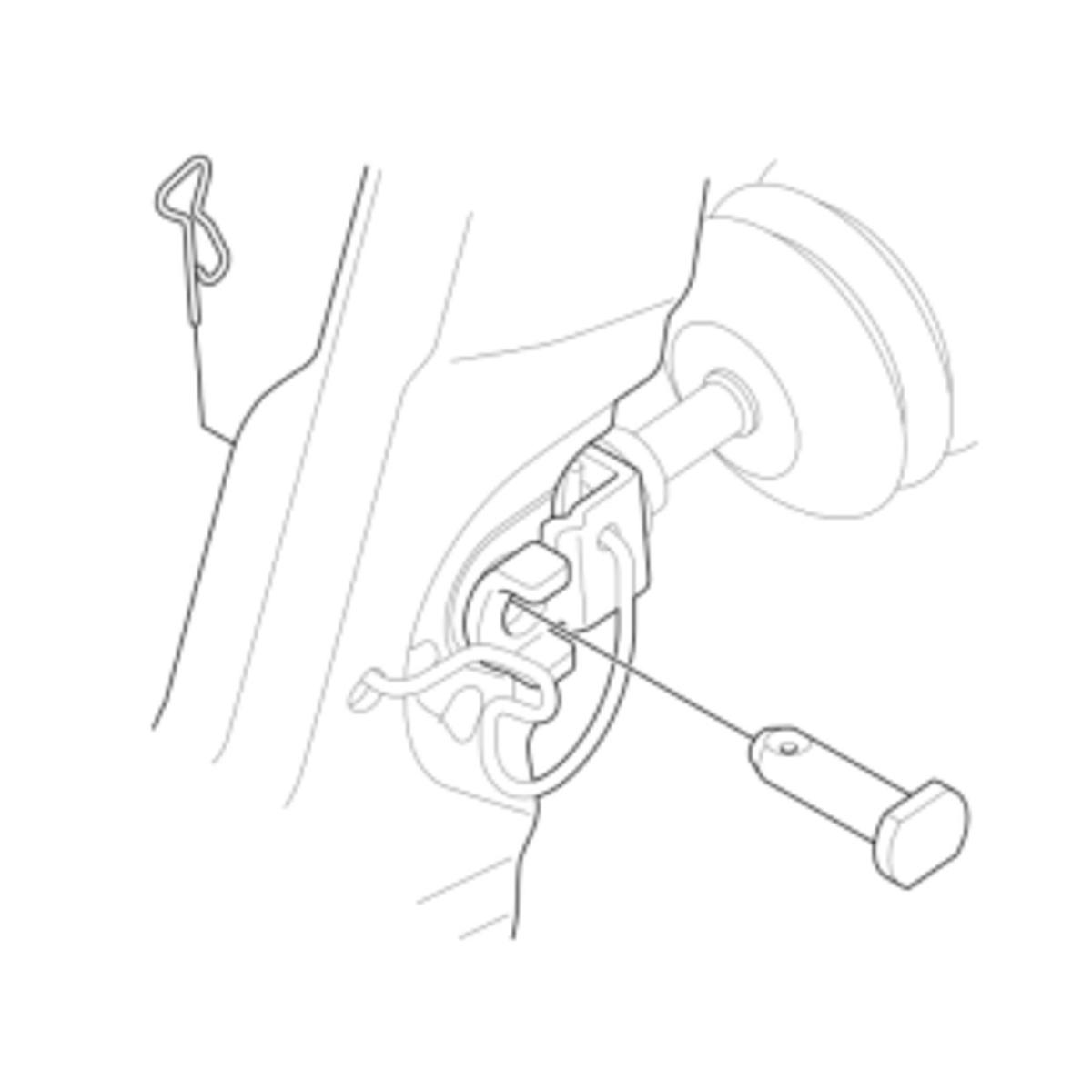

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Install the yoke spring (a) then install the yoke pin (b) and the lock pin (c). (Figure 3 and 4)

   Lubricant Specifications (Figure 4)

   Position	Type
   d	Multipurpose Grease

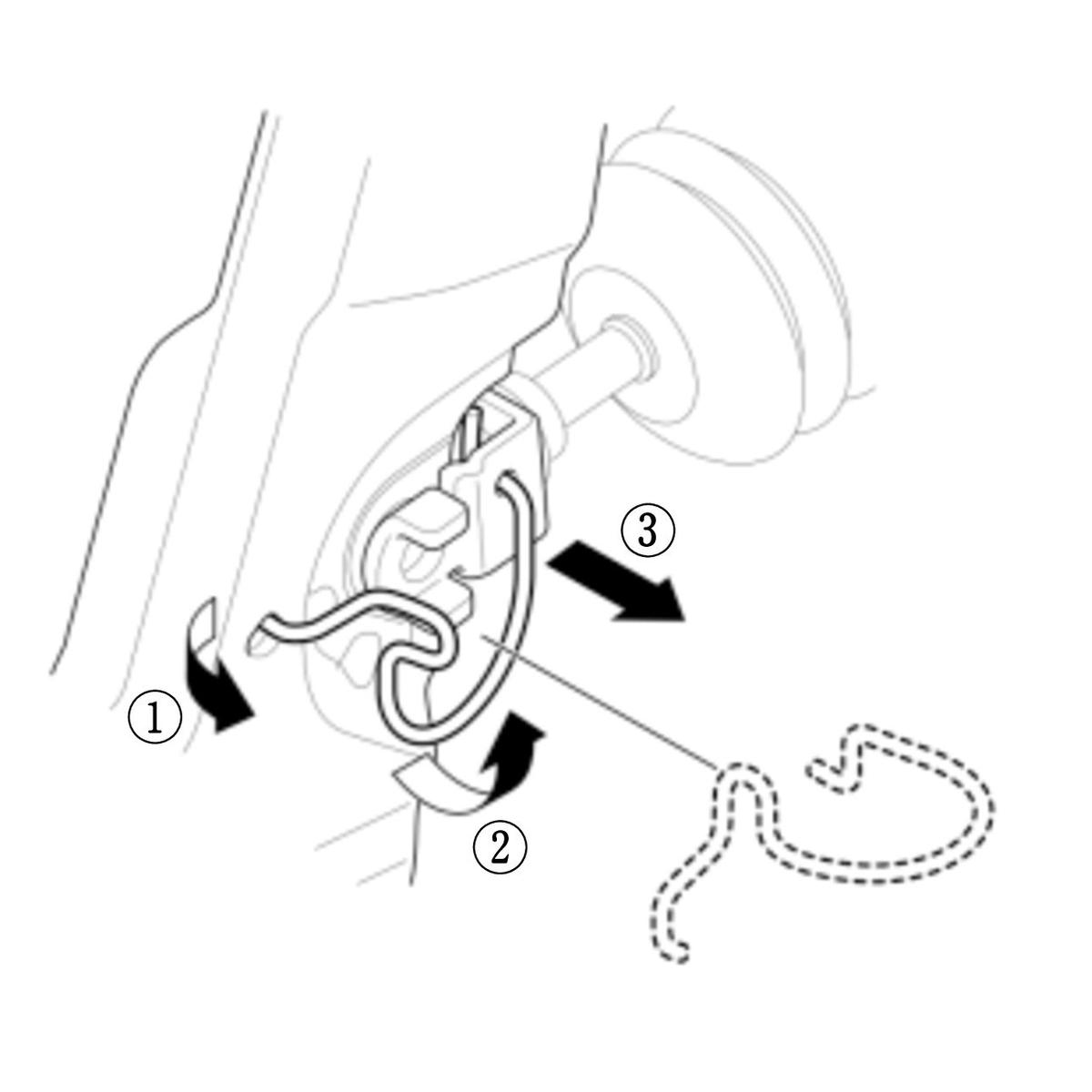

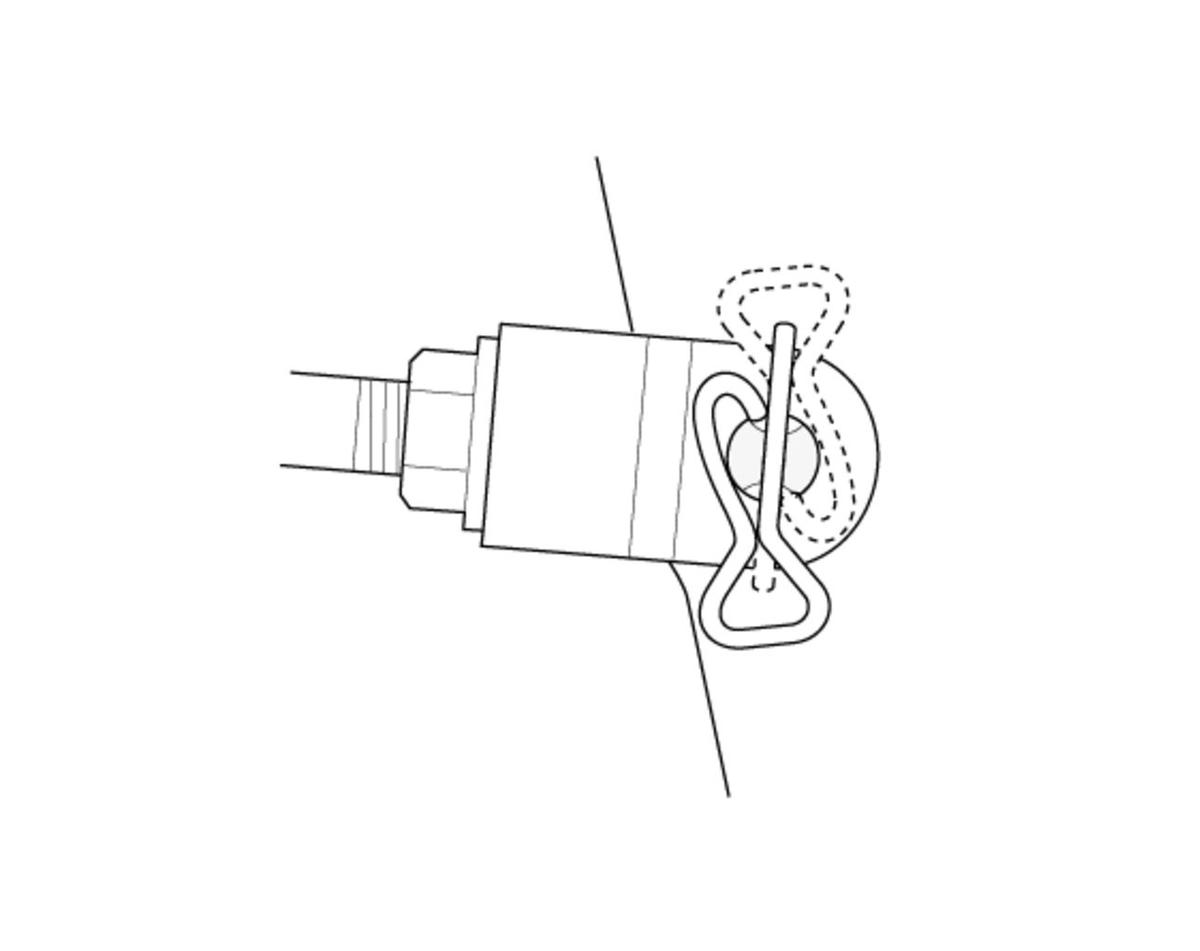

   Figure 5

   Courtesy of HONDA, U.S.A., INC.

   • Install the lock pin as shown. (Figure 5)

   After Installation

   • Brake Pedal Position Switch Adjustment
   • Sensor 0 (Zero) Position Memorization - Refer to: Electric Servo Brake System Sensor 0 (Zero) Position Memorization
5. E.-

   Sub-Procedure

   Removal

   NOTE:  The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Left Center Pillar Lower Trim
   • Driver's Seat
   • Center Console
7. G.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Right Center Pillar Lower Trim
   • Passenger's Seat
   • Center Console
8. H.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Both Center Pillar Lower Trim
   • Driver's Seat
   • Passenger's Seat
   • Center Console
   • Both Rear Door Sill Trim
   • Rear Seat Cushion
9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

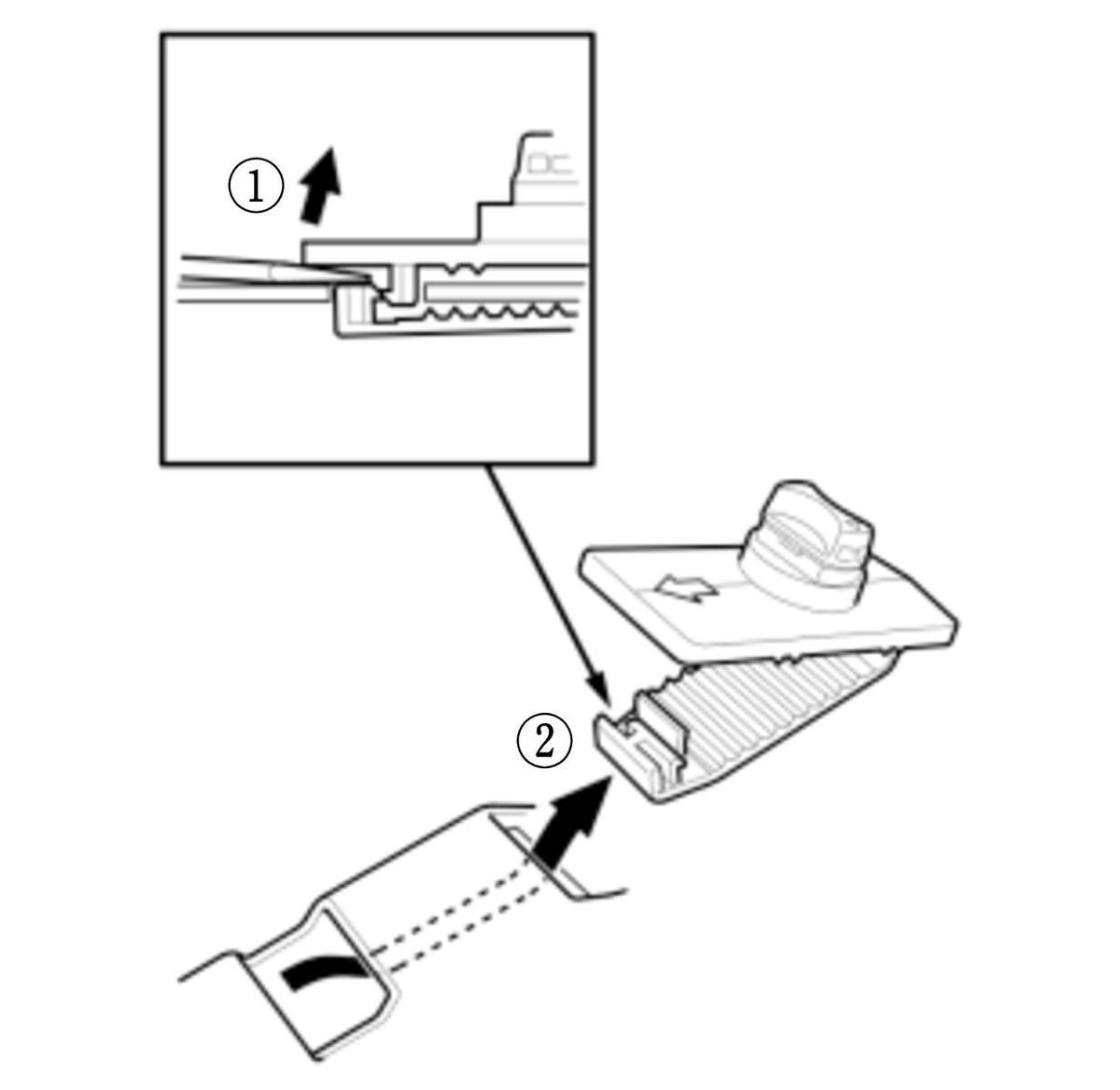

   Removal

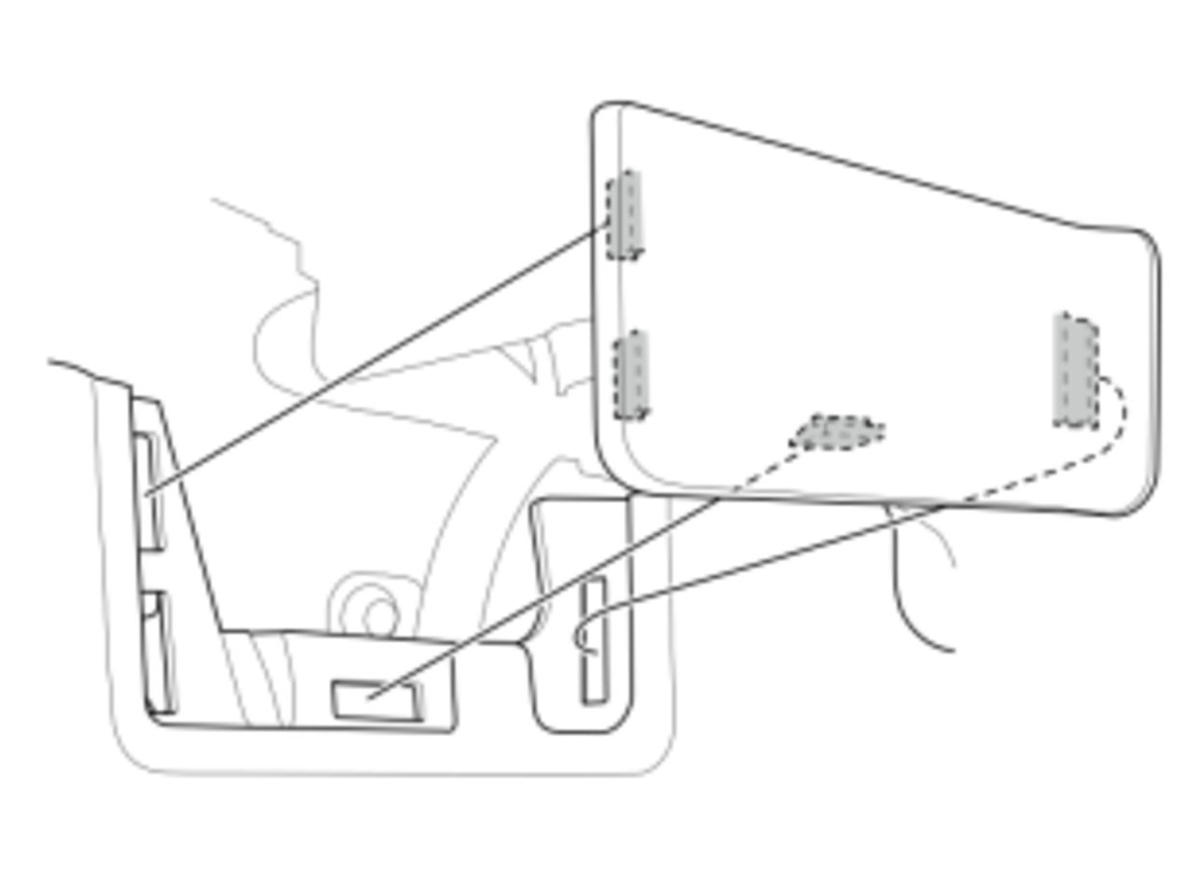

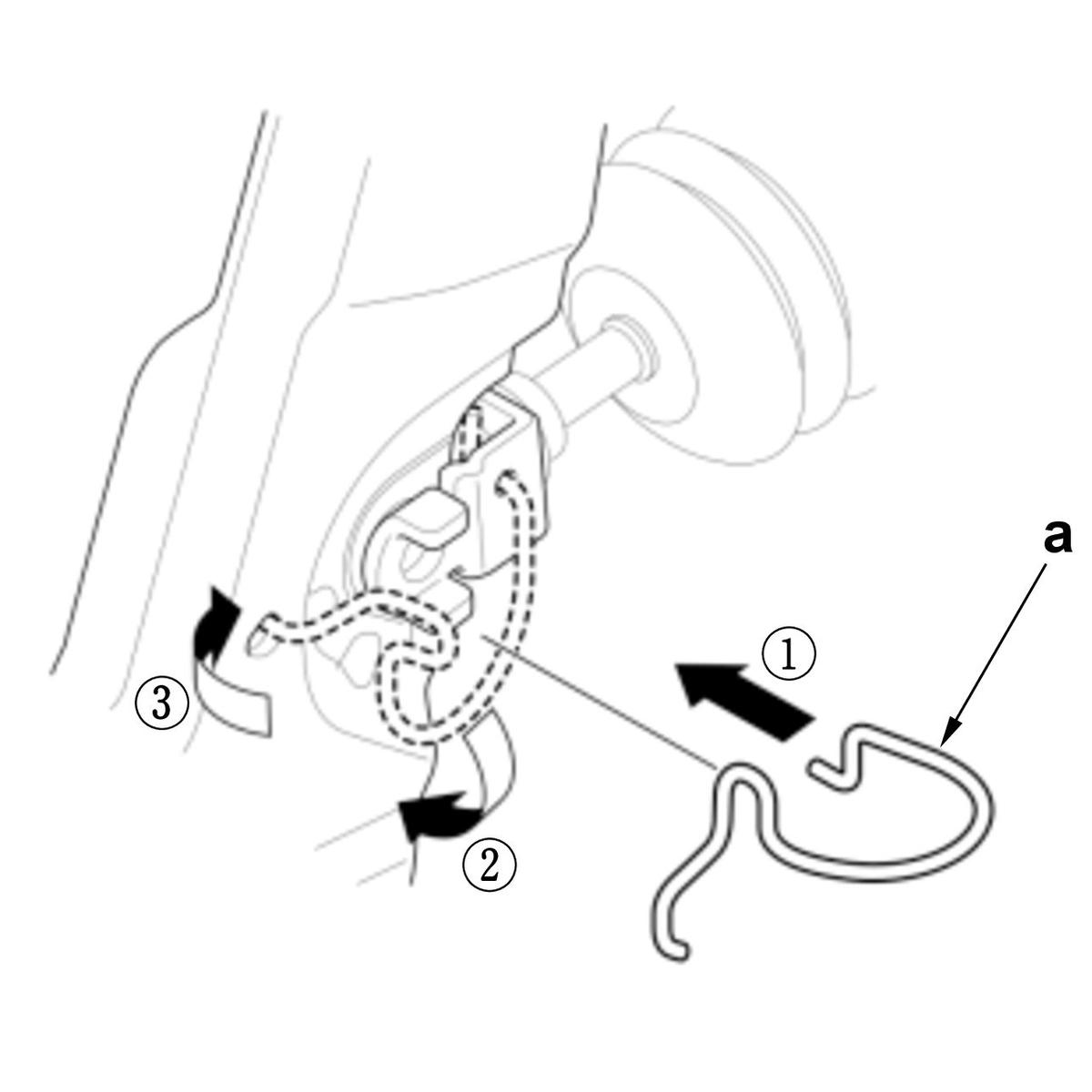

   • Refer to the figure.
