Exploded View Legend

For Replacement of components listed below, see Repair Procedure

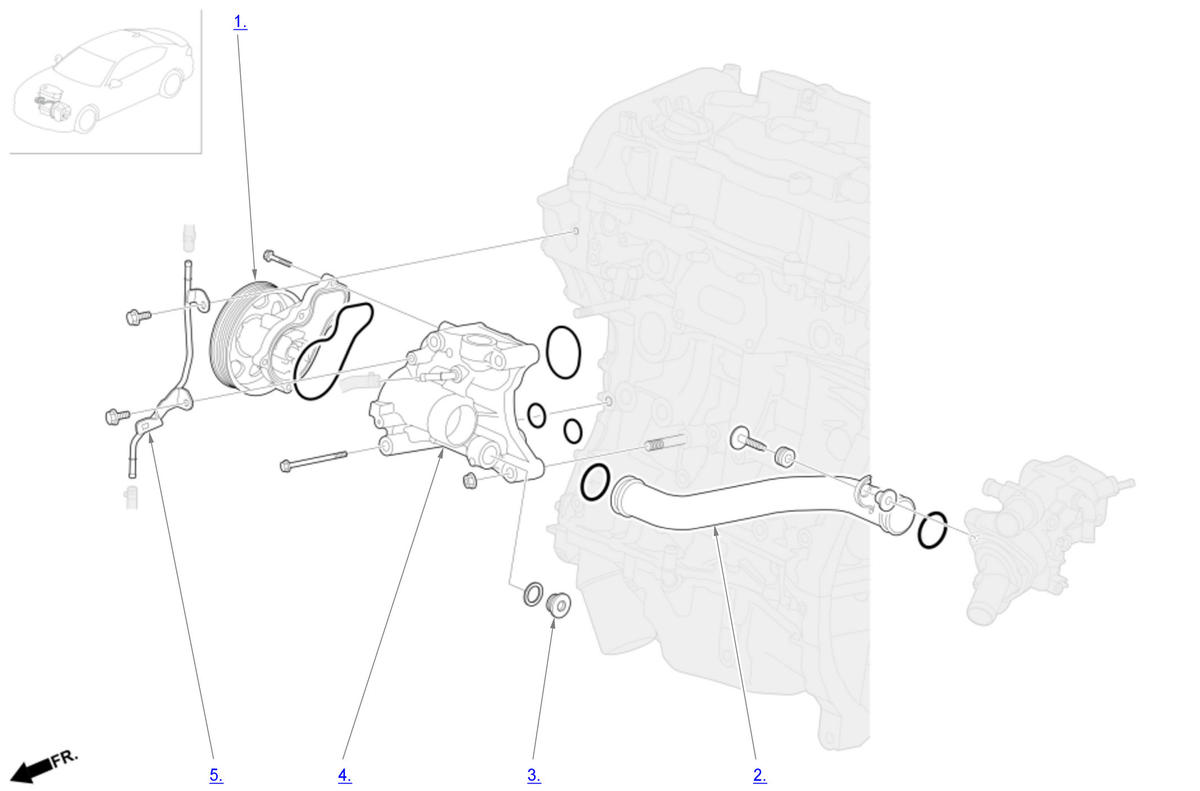

GHH563557Courtesy of HONDA, U.S.A., INC.
Water Pump Area Components

Component Name Callout
Water Pump 1
Connecting Pipe 2
Sealing Bolt 3
Water Passage 4
Turbocharger Bypass Control Valve Solenoid Pipe B 5
