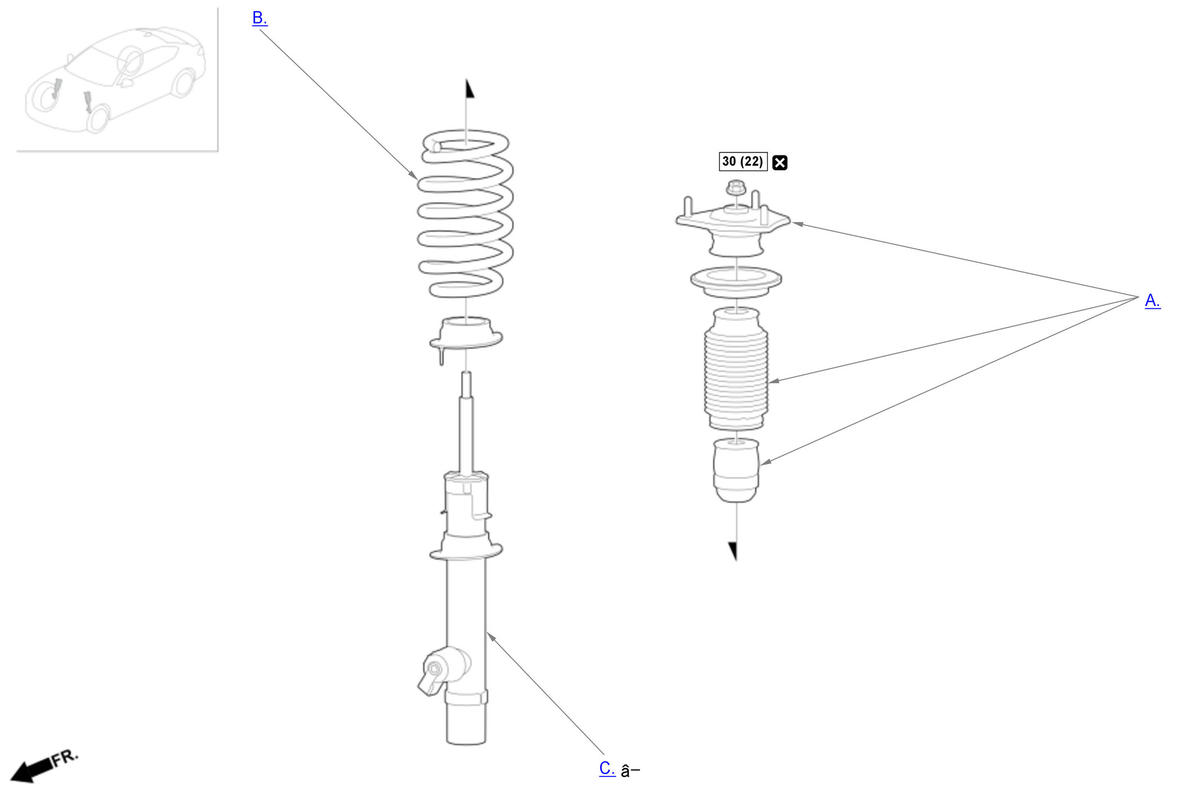

Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

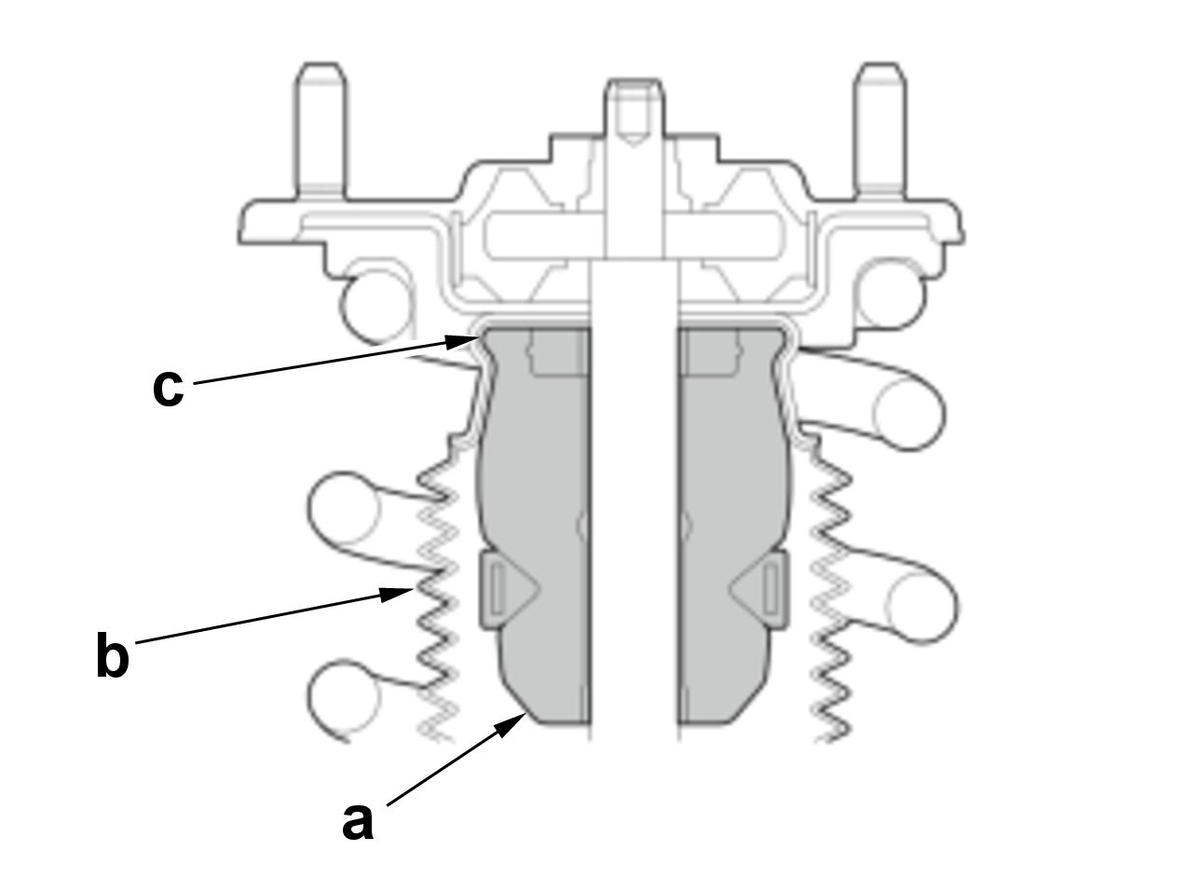

   • Push the bump stop (a) and the dust cover (b) into the dent (c) of the damper mounting base securely.
2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

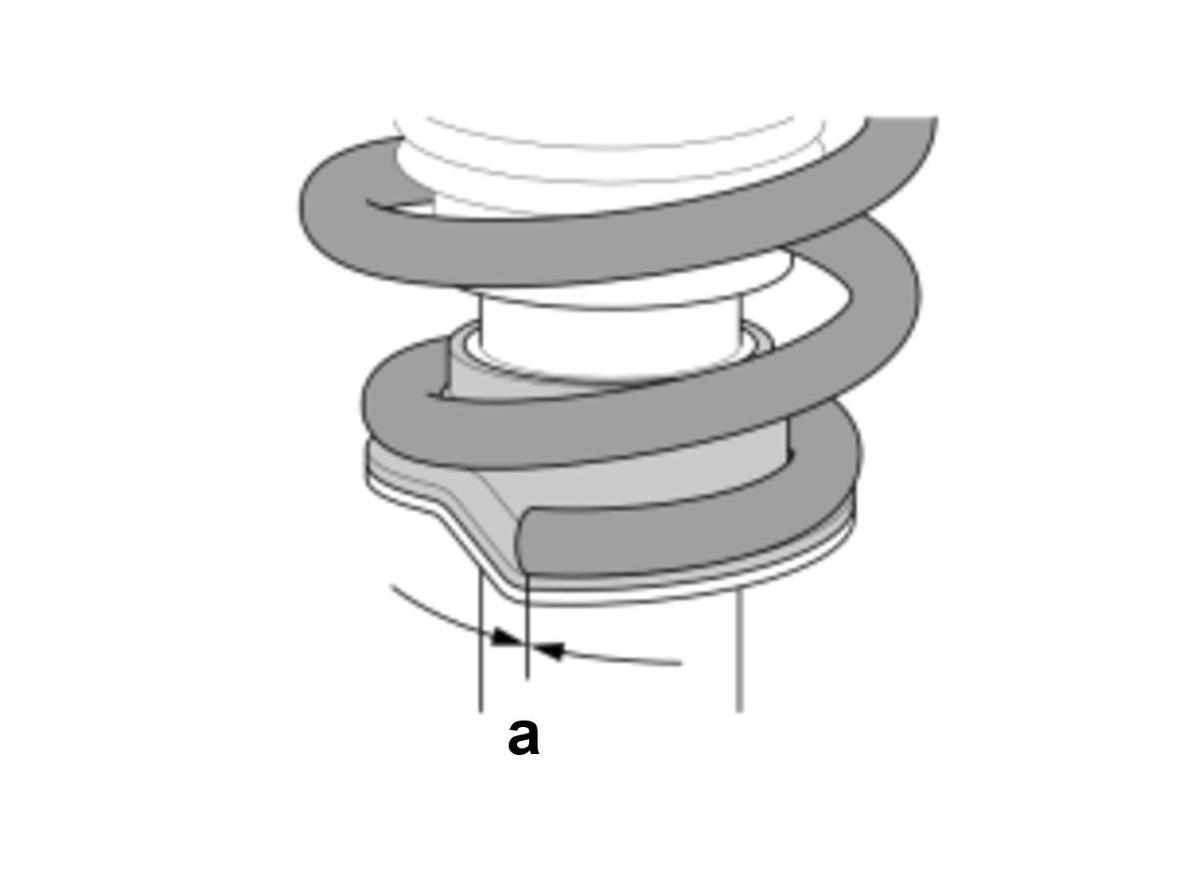

   Specifications

   Specification
   a	No Clearance

3. C.-

   Sub-Procedure

   Removal

   NOTICE:

   Do not compress the spring more than necessary to remove the nut.

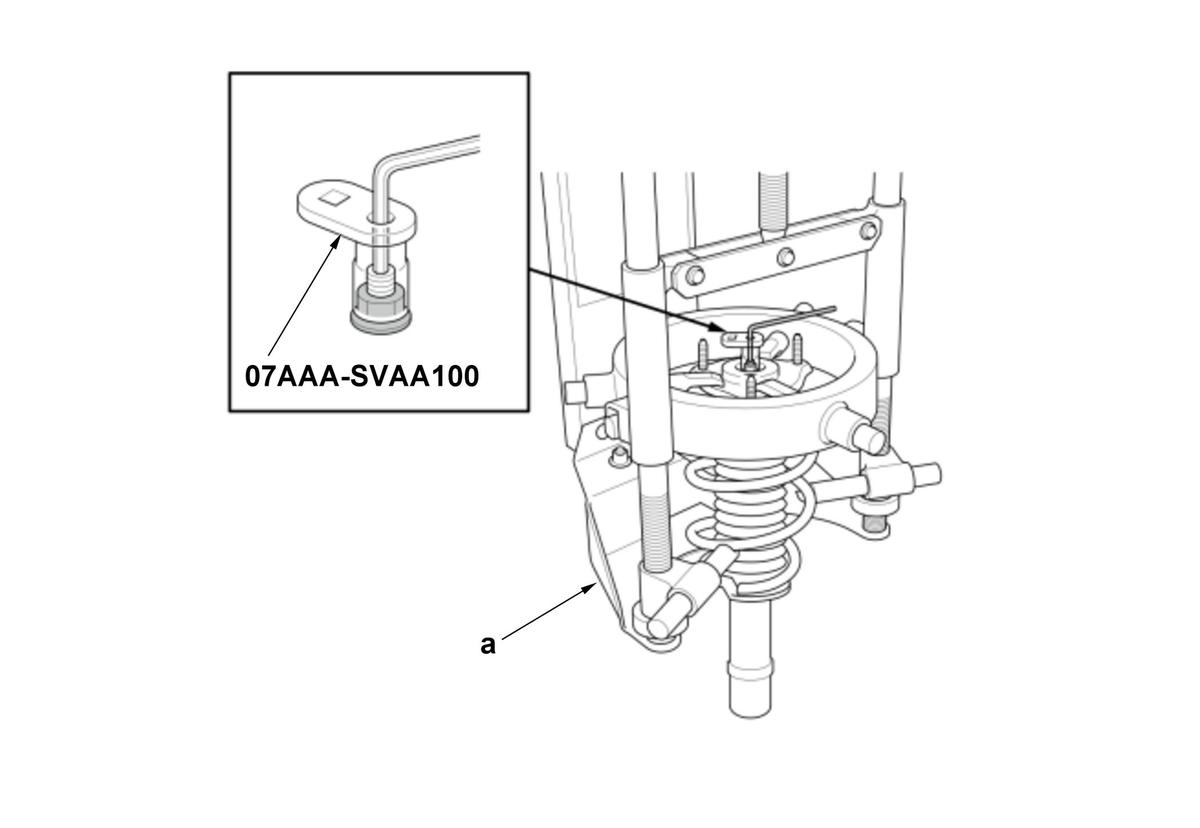

   Figure 1

   • Refer to the figure 1.

   Tool Details (Figure 1)

   Name
   a	Strut Spring Compressor (Commercially Available)

   Courtesy of HONDA, U.S.A., INC.

   Installation

   NOTICE:

   Do not compress the spring excessively.

   1. Align the angle of the stud (b) on the damper mounting base with the aligning tab (c) on the bottom of the damper unit.

   Specifications (Figure 2 and 3)

   Standard Value
   d	78.4 deg.+/-3 deg.

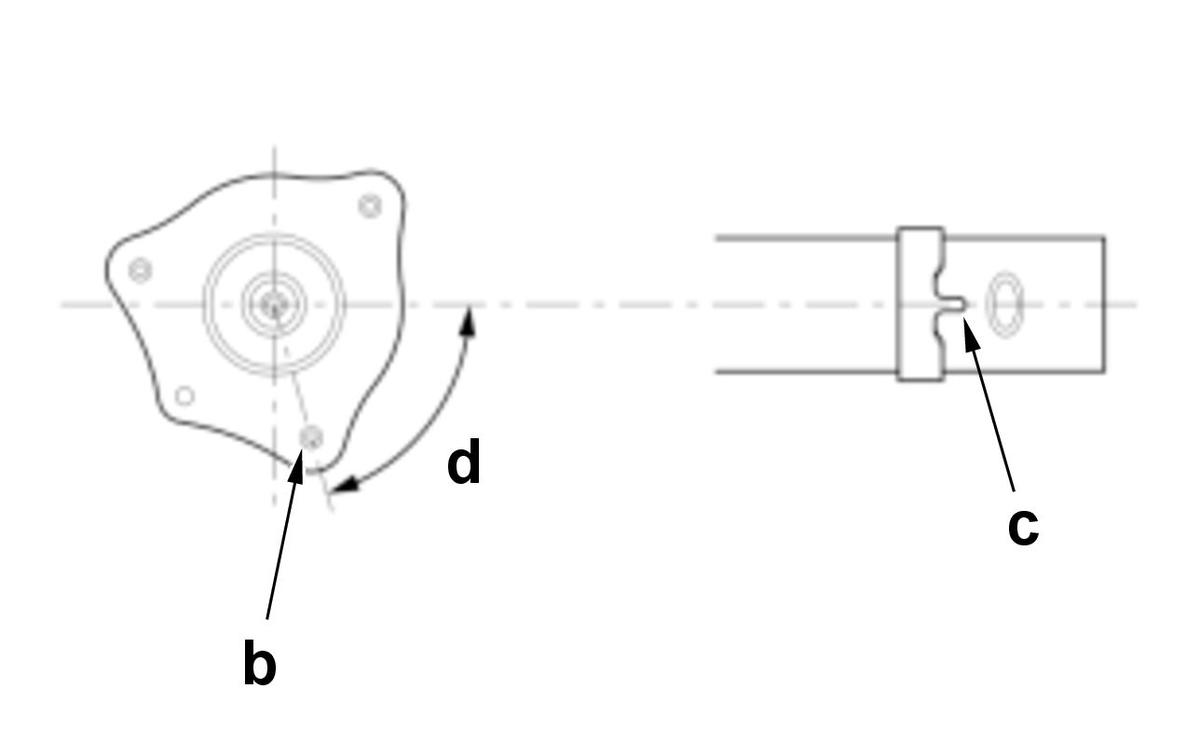

   Figure 2 (Left side)

   Courtesy of HONDA, U.S.A., INC.

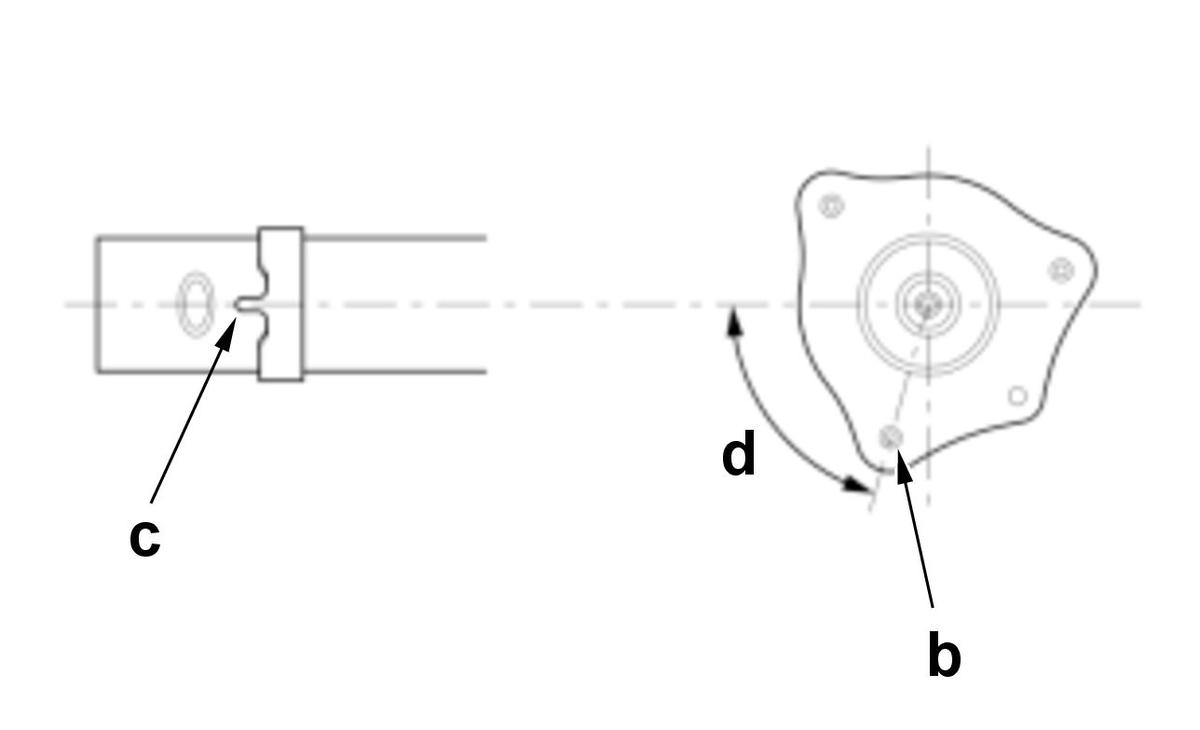

   Figure 3 (Right side)

   Courtesy of HONDA, U.S.A., INC.

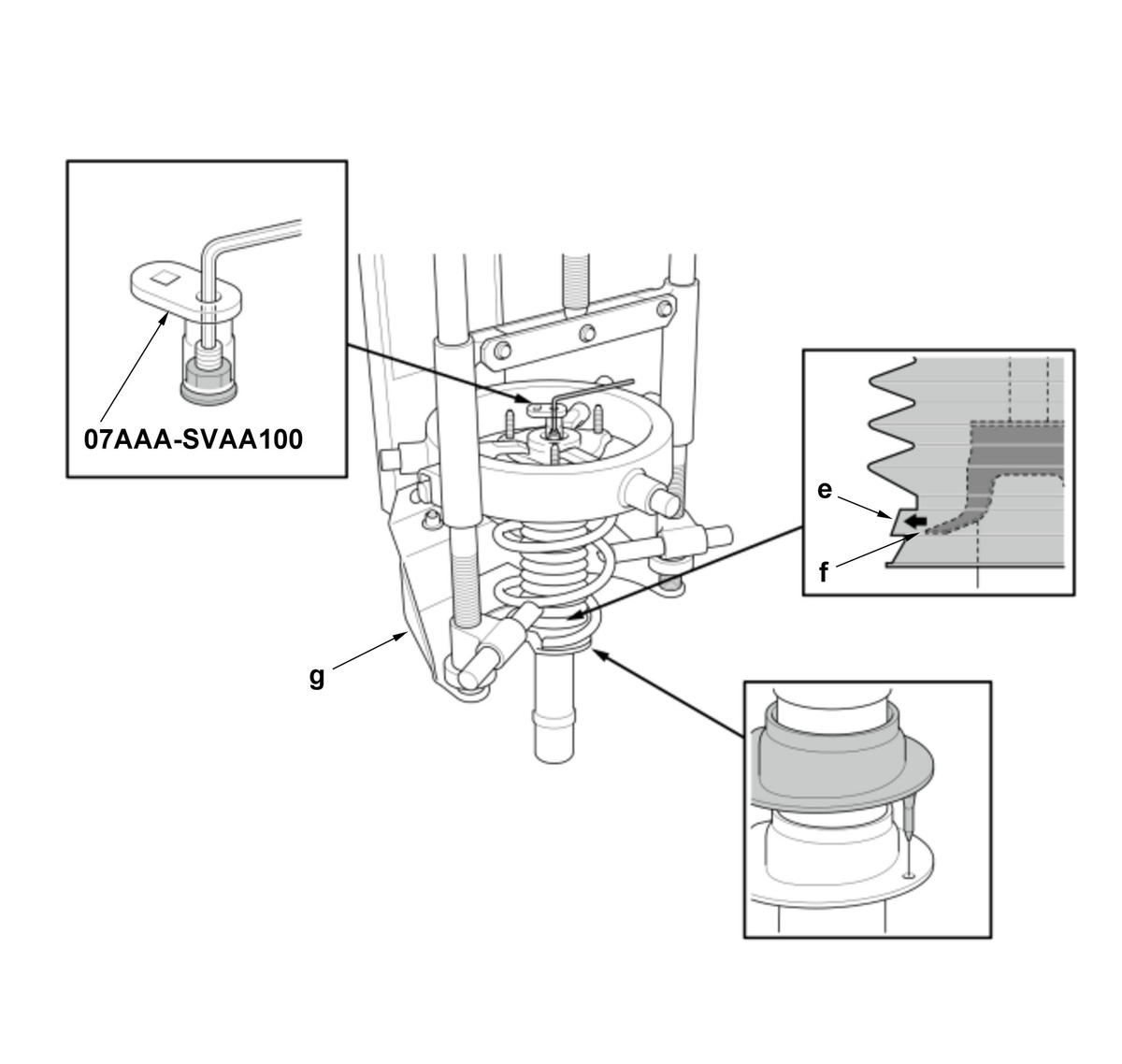

   Figure 4

   2. Refer to the figure 4.

   NOTE:  Make sure that the dust cover (e) is properly positioned into the raised portion (f) of the damper unit. (Figure 4)

   Tool Details (Figure 4)

   Name
   g	Strut Spring Compressor (Commercially Available)

   Courtesy of HONDA, U.S.A., INC.
