AcuraLink Button Test: Test

How to use this manual .

1. AcuraLink Button - Test

   Preconditions

   • Roof Module Removed

   Courtesy of HONDA, U.S.A., INC.

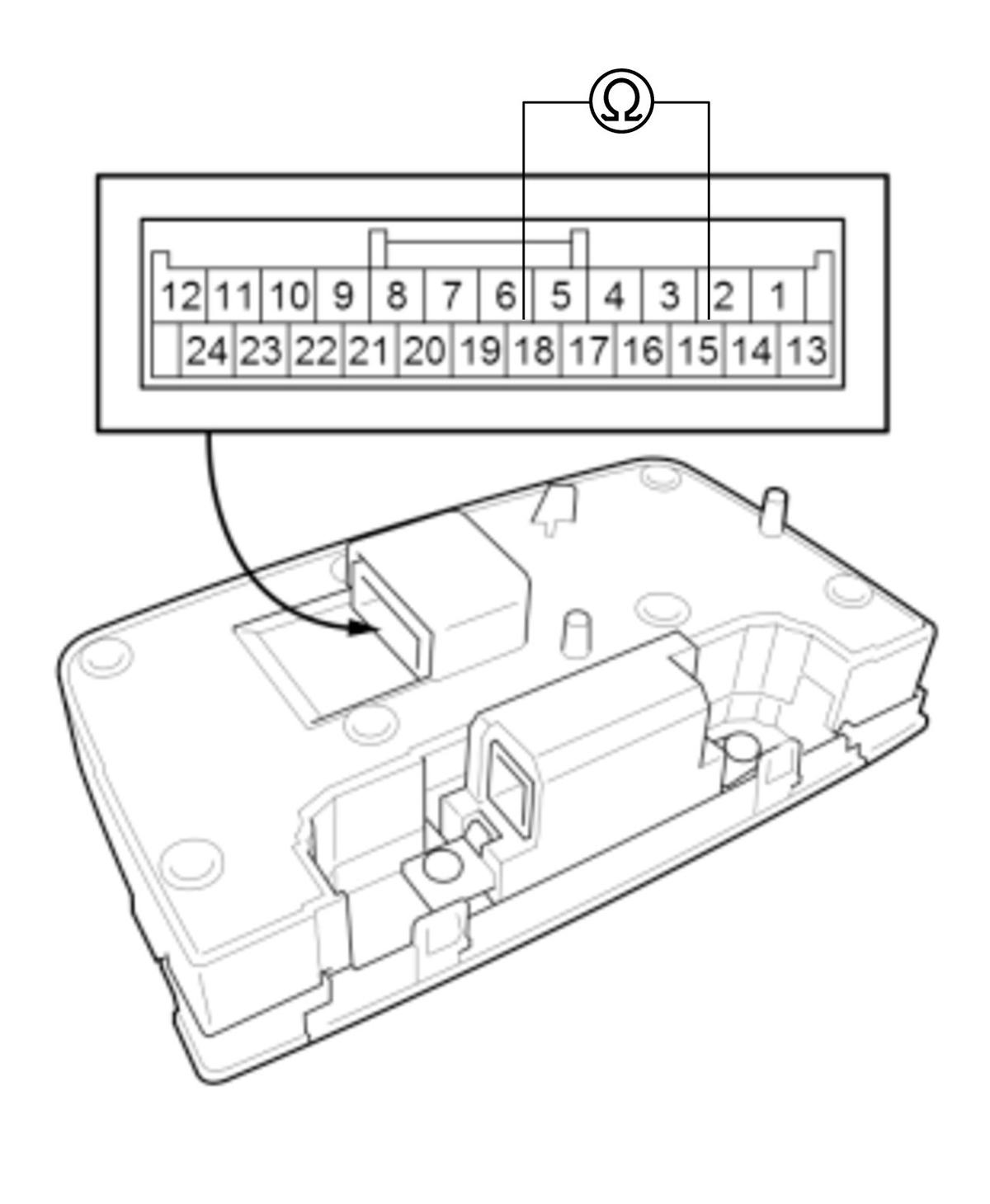

   Procedure/Specifications

   Specifications

   Button Position	Specification
   No button pressed	About 3.1 kOhm
   LINK button pressed	About 400 Ohm
   ASSIST button pressed	About 100 Ohm

   Result

   • If the measurement is not within specifications, replace the roof module .
