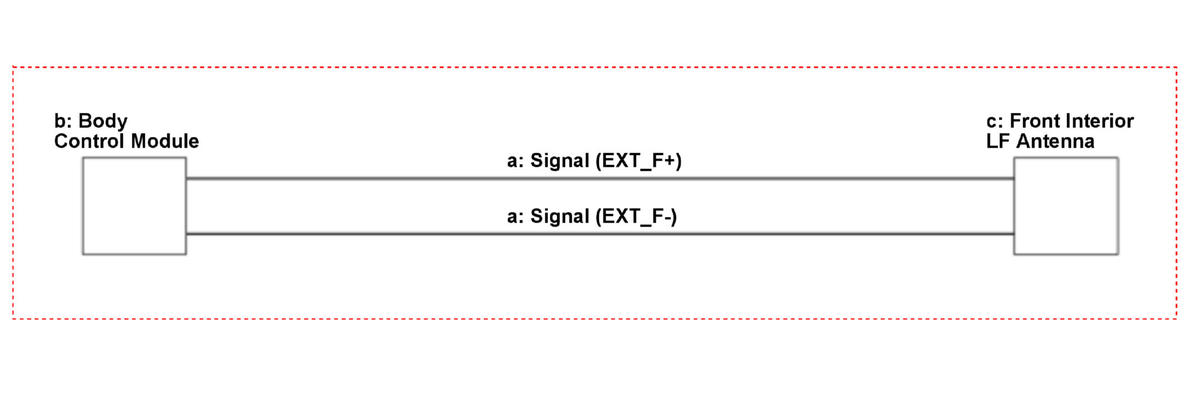

Inspection Outline
- The components to be tested are indicated by a dotted line.
 Courtesy of HONDA, U.S.A., INC.
|
| Inspection Items |
Work Items |
| a |
External Circuit |
EXT_F+, EXT_F- Shorted Wire Inspection |
| b |
Body Control Module |
Body Control Module Inspection |
| c |
Front Interior LF Antenna |
Front Interior LF Antenna Inspection |
