Relay Locations

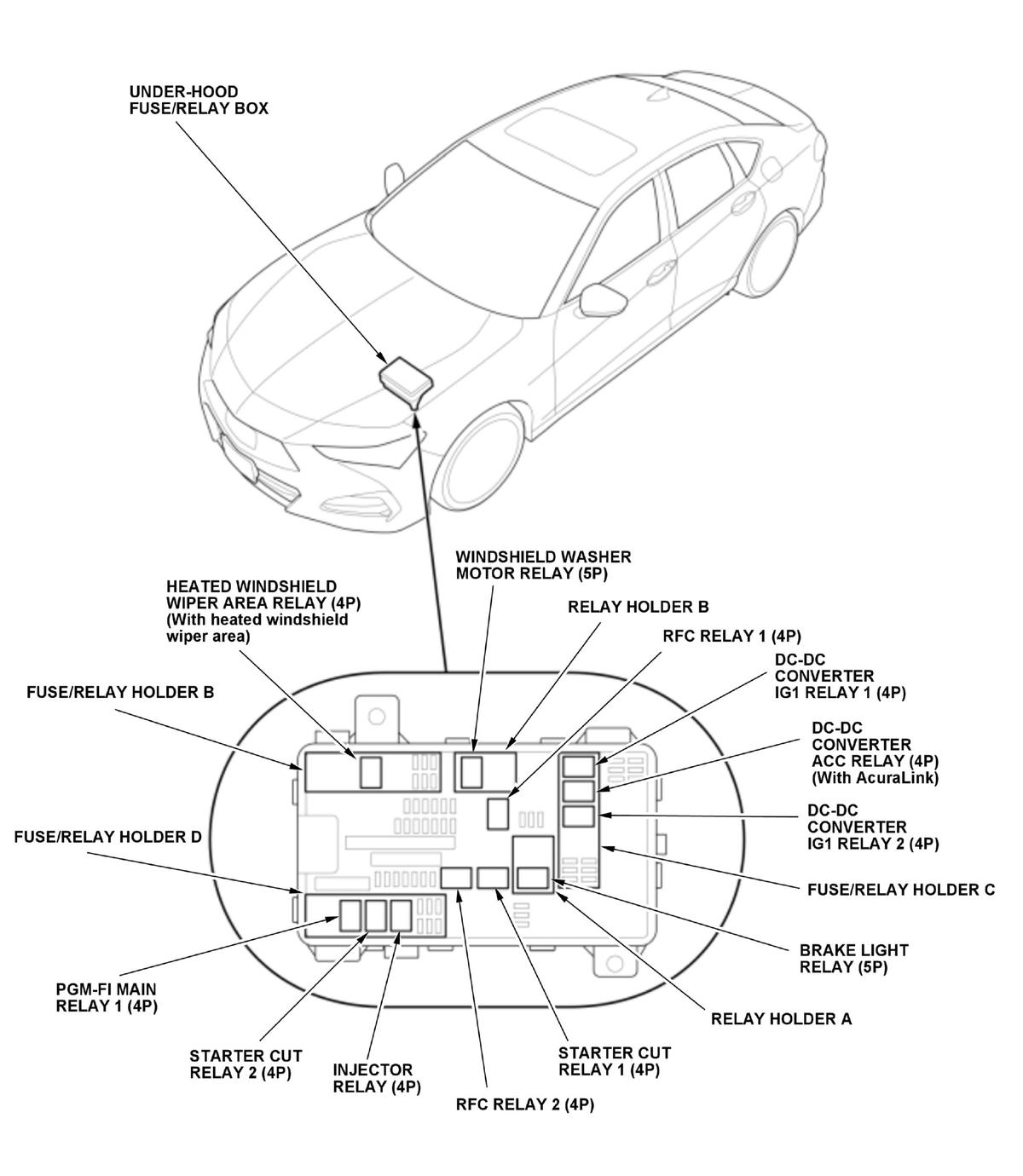

Engine Compartment - 1/22.0 L Engine
Courtesy of HONDA, U.S.A., INC.

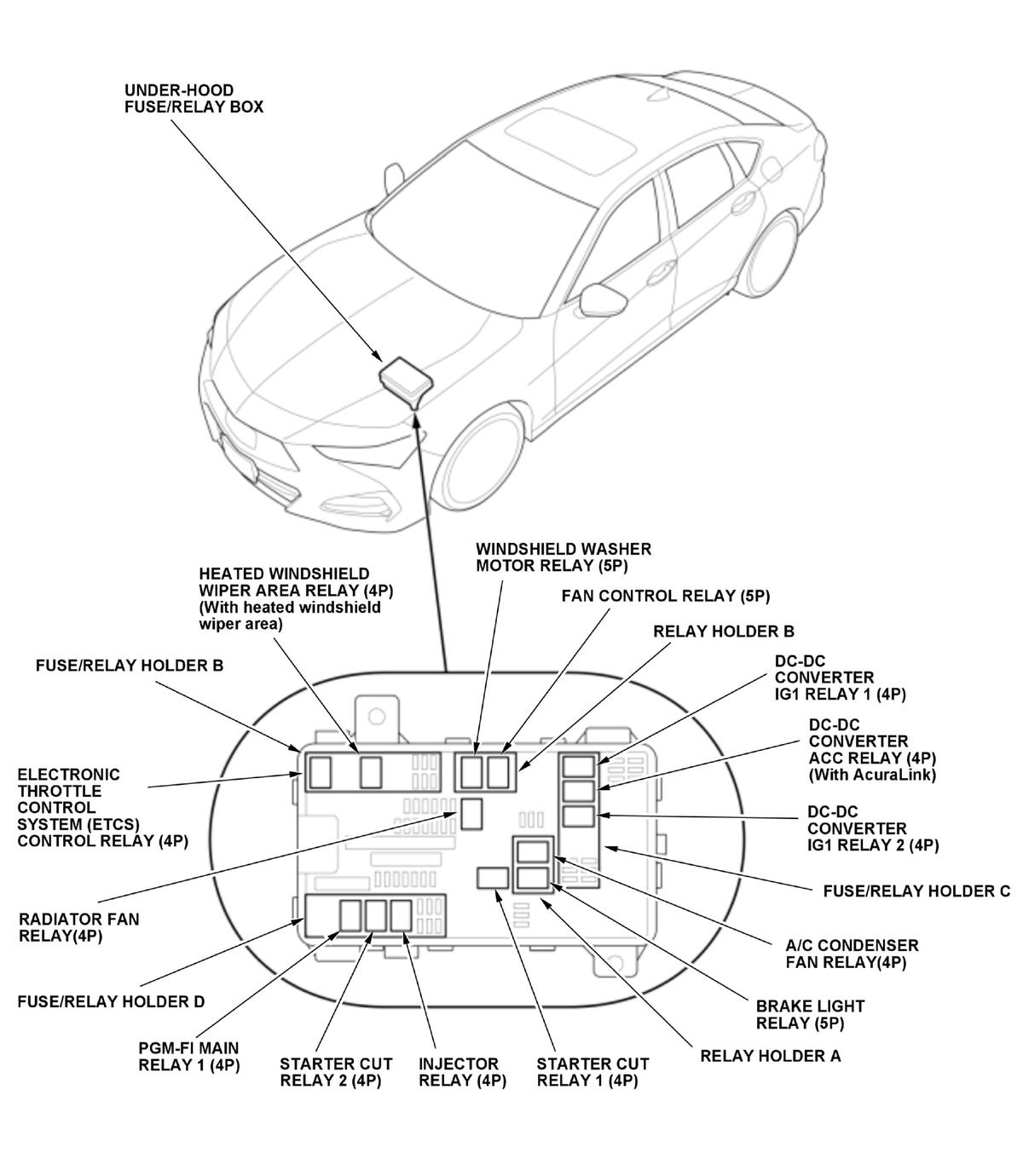

Engine Compartment - 2/23.0 L Engine
Courtesy of HONDA, U.S.A., INC.

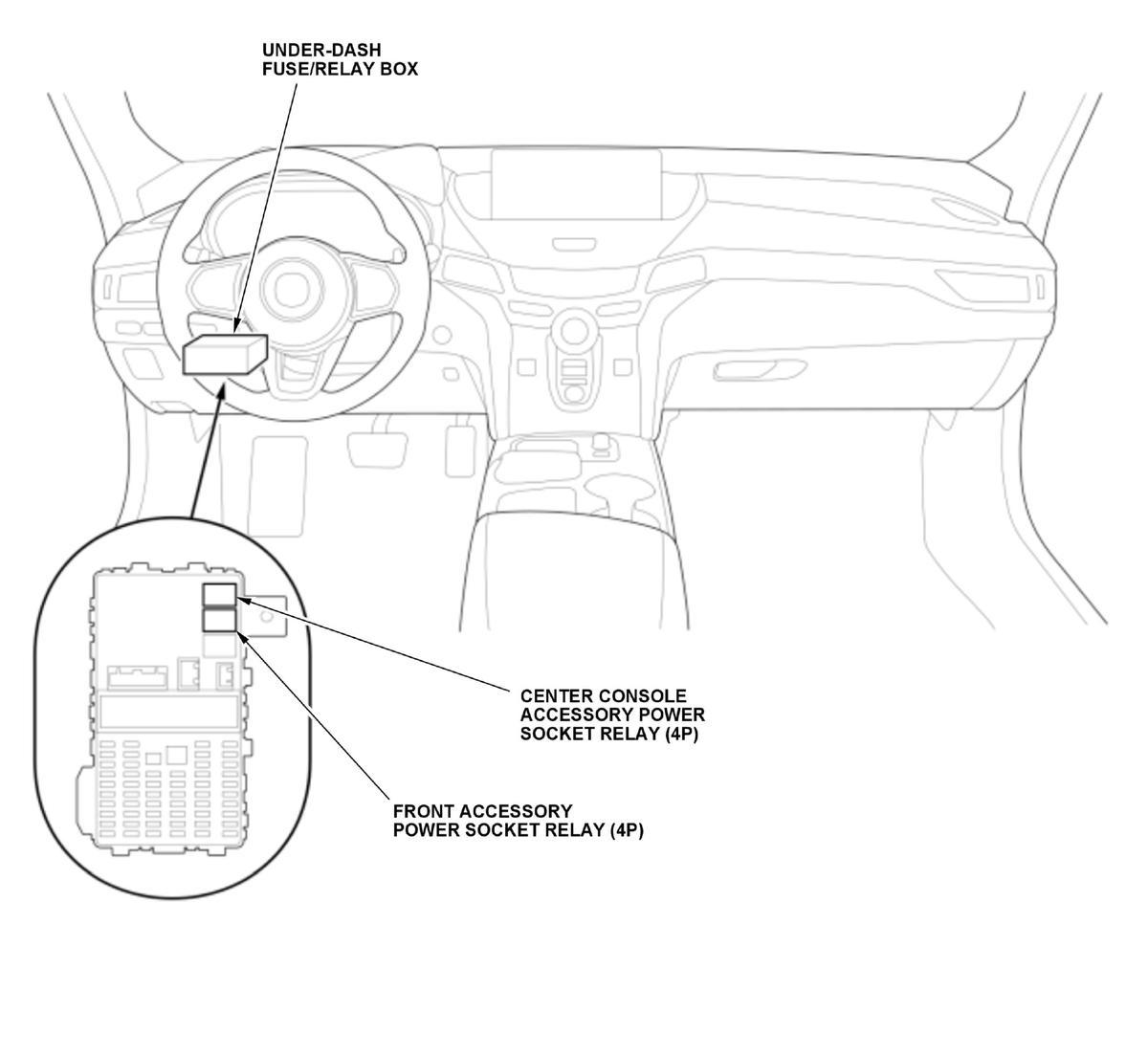

Dashboard
Courtesy of HONDA, U.S.A., INC.

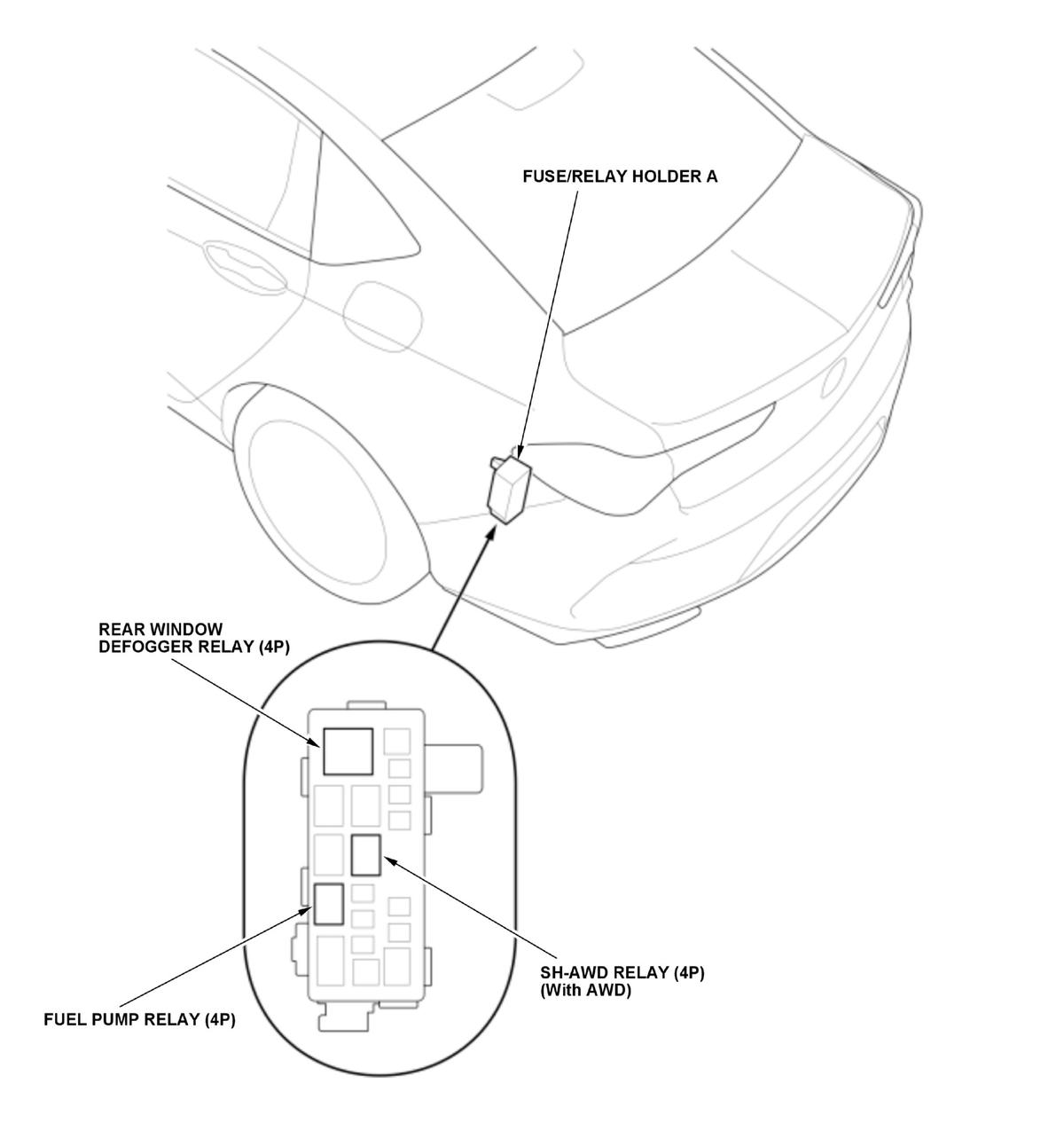

Rear
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
