Inspection Outline

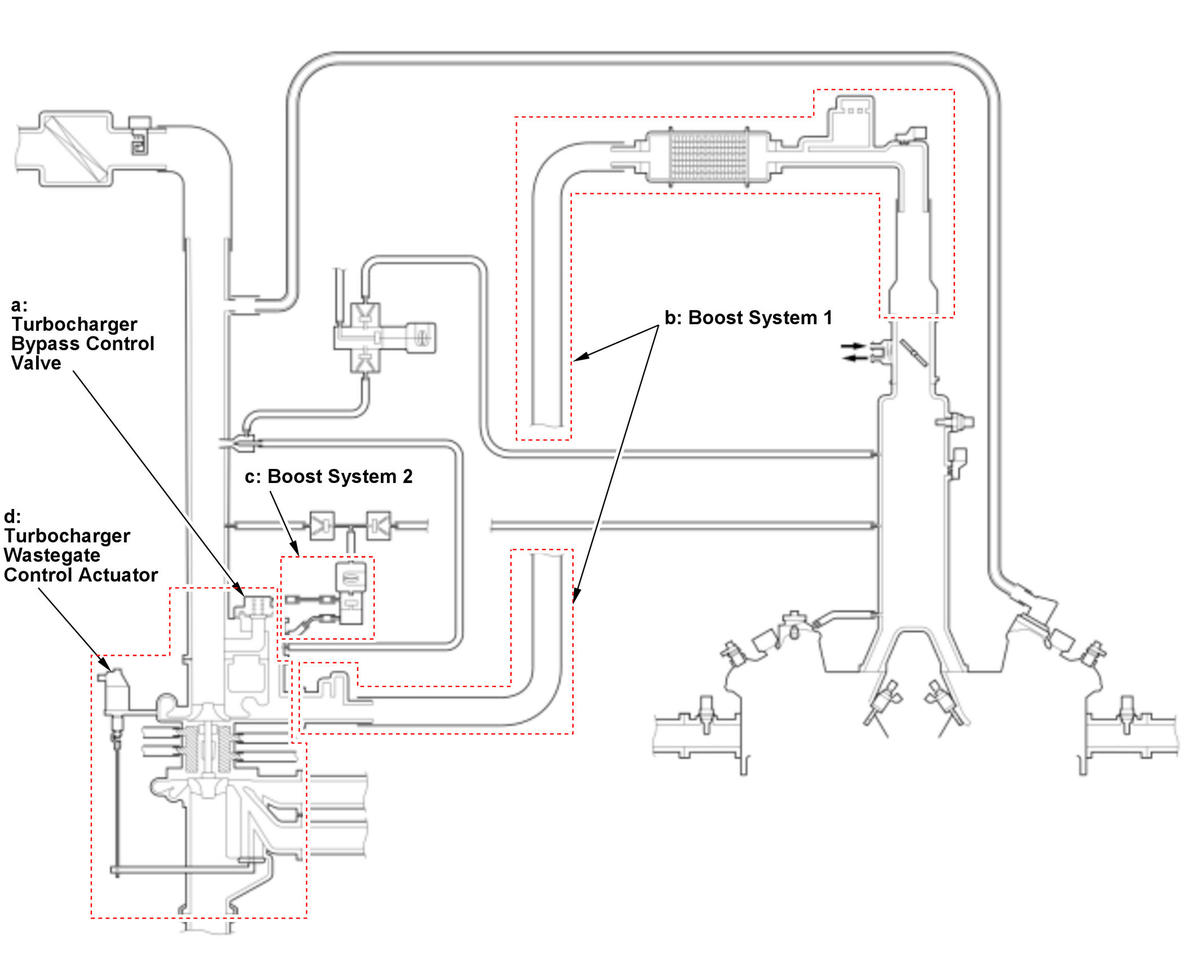

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- PGM-FI System [PGM-FI]: Go to the indicated DTC's troubleshooting - Refer to: Fuel and Emissions Systems DTC Troubleshooting Index(3.0L Engine (USA/Canada models)) or Fuel and Emissions Systems DTC Troubleshooting Index .
| Inspection Items | Work Items | |
|---|---|---|
| a | Turbocharger Bypass Control Valve | Do the Turbocharger Bypass Control Valve Inspection - Refer to: Turbocharger Bypass Control Valve Inspection(2.0L Engine) or Turbocharger Bypass Control Valve Inspection(3.0L Engine) |
| b | Boost System 1 | Boost System 1 Inspection (Leakage) |
| c | Boost System 2 | Boost System 2 Inspection (Leakage) |
| d | Turbocharger Wastegate Control Actuator | Turbocharger Wastegate Control Actuator Functional Inspection |
