Inspection Outline

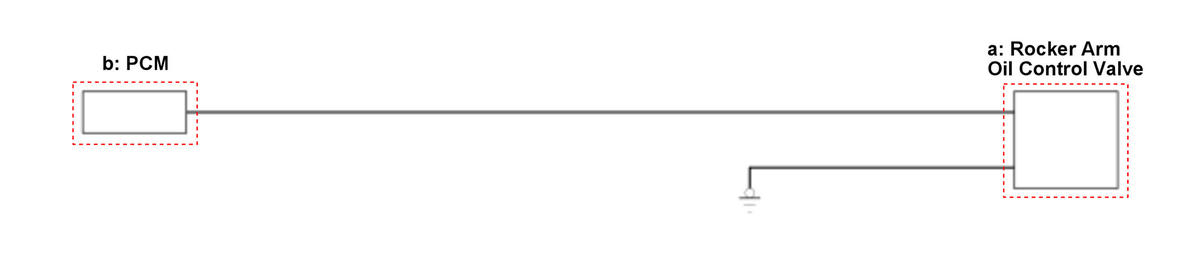

- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- PGM-FI System [PGM-FI]: Go to the indicated DTC's troubleshooting - Refer to: Fuel and Emissions Systems DTC Troubleshooting Index(3.0L Engine (USA/Canada models)) or Fuel and Emissions Systems DTC Troubleshooting Index .
NOTE:
For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.
- Select the HDS [VTEC TEST]. Can you hear the rocker arm oil control solenoid click during the test?
-
- YES:
- NO:
- YES:
| Inspection Items | Work Items | |||
|---|---|---|---|---|
| - | Engine Oil | Do the Engine Oil Level Check - Refer to: Engine Oil Level Check or Engine Oil Replacement(2.0L Engine) or Engine Oil Replacement(3.0L Engine) | o | o |
| a | Rocker Arm Oil Control Valve | Rocker Arm Oil Control Solenoid Functional Inspection | o | |
| Rocker Arm Oil Control Valve Functional Inspection (Close Operation) | o | |||
| Rocker Arm Oil Control Valve Functional Inspection (Open Operation) | o | |||
| - | VTEC System Oil Passage | VTEC System Oil Passage Inspection | o | |
| b | PCM | PCM Inspection | o | |
