Fuel Pressure Test (2.0L Engine): Test

How to use this manual .

WARNING: Flammable - Keep Fire Away

NOTICE:

Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.

NOTE:

If you were referred to this procedure from a troubleshooting procedure, test the fuel pressure under the same conditions the malfunction occurred (engine speed, load, throttle position, etc.).
If the pump does not run, check for DTCs - Refer to: How to Troubleshoot the Fuel and Emissions Systems(2.0L Engine) or How to Troubleshoot the Fuel and Emissions Systems(3.0L Engine) , then do the appropriate DTC troubleshooting procedure.

Fuel Pressure - Test

Preconditions

Fuel Pressure Relieved - Refer to: Fuel Pressure Test(2.0L Engine) or Fuel Pressure Test(3.0L Engine) or Fuel Pressure Relieving
12 Volt Battery Terminal Disconnected
Cowl Cover Lid Removed

Figure 1

Courtesy of HONDA, U.S.A., INC.

Procedure/Specifications

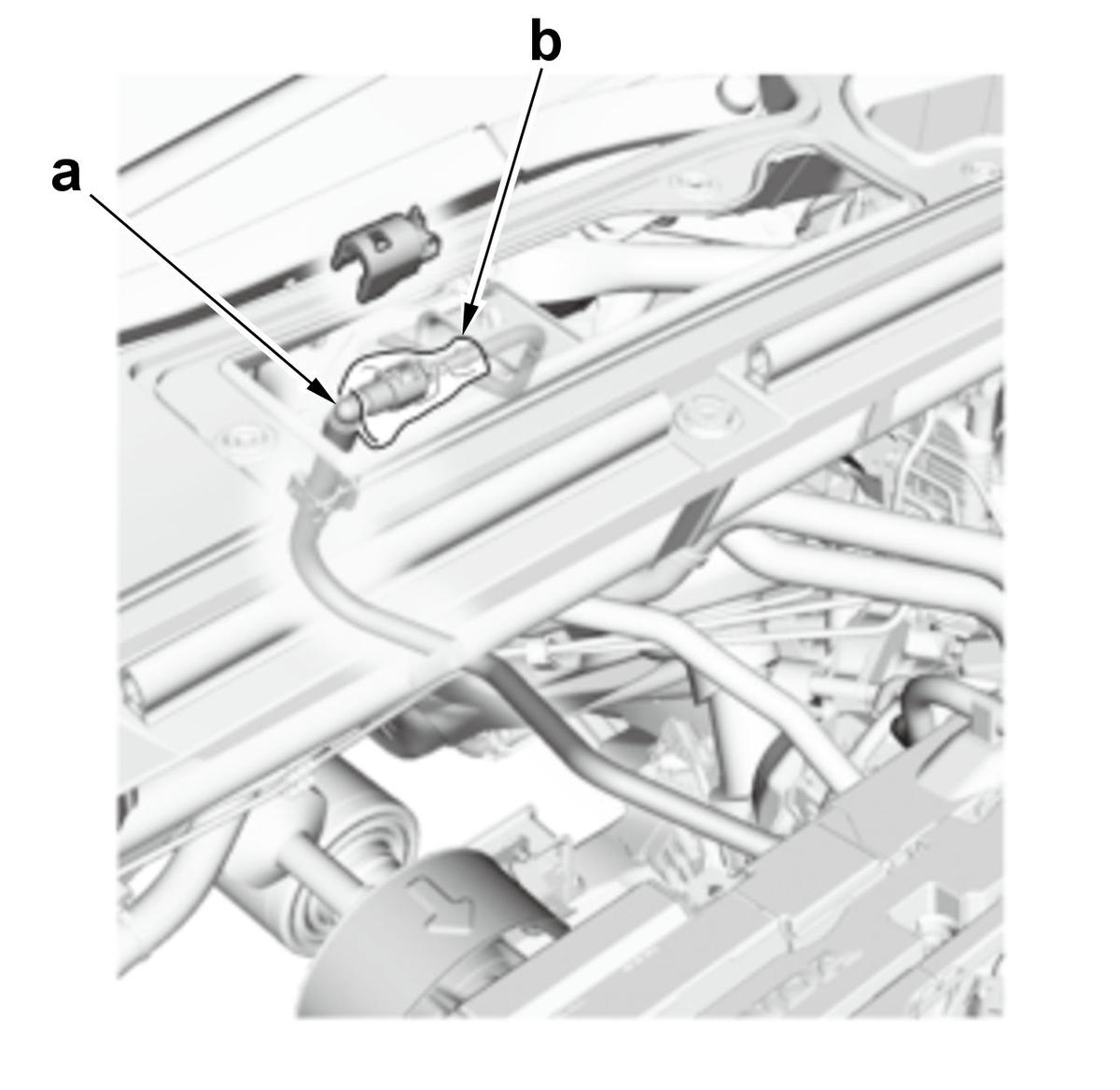

1. Disconnect the quick-connect fitting (a) . (Figure 1)

NOTICE:

Place a rag or shop towel (b) over the quick-connect fitting.

Figure 2

Courtesy of HONDA, U.S.A., INC.

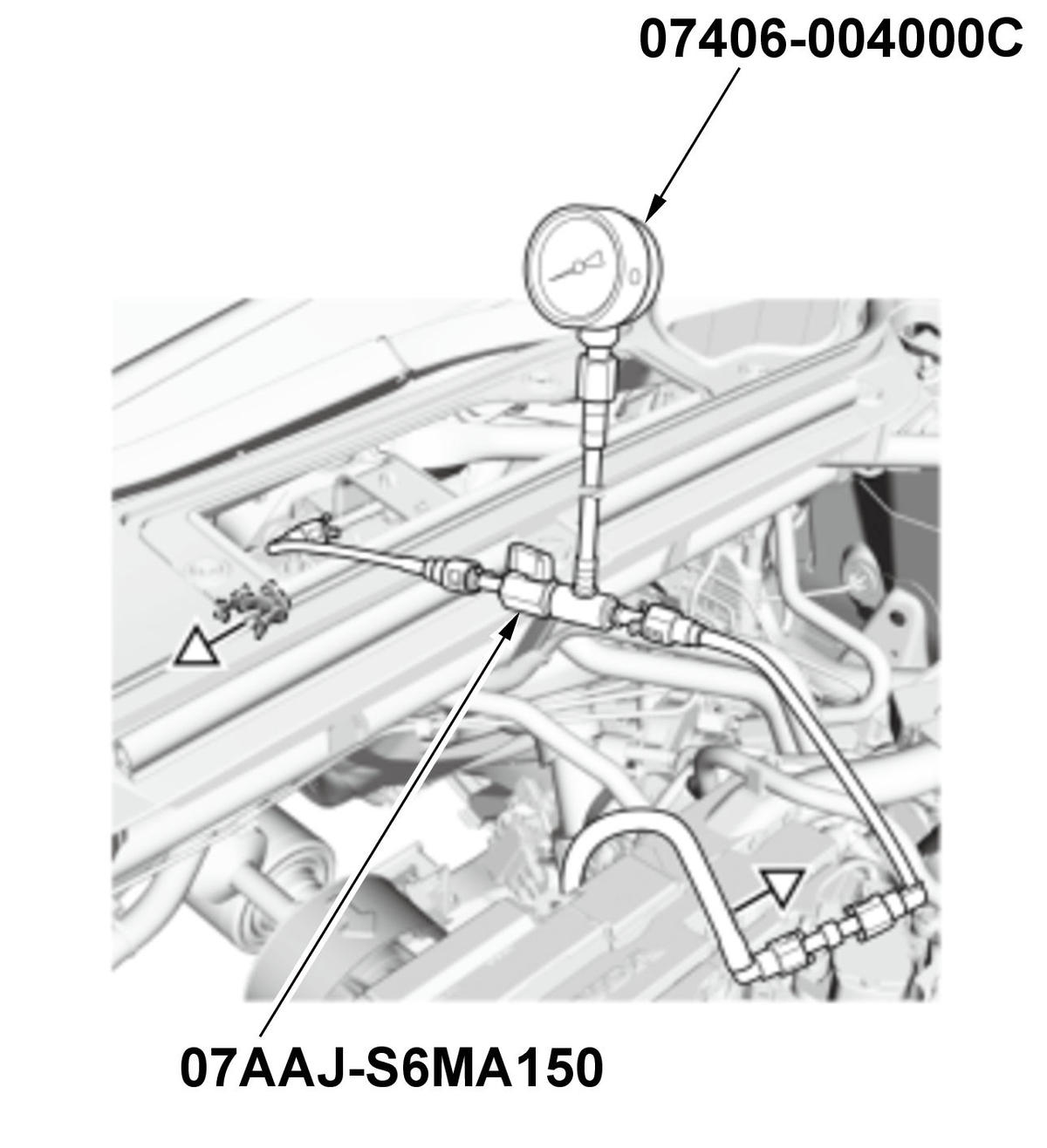

2. Attach the gauge, fuel pr. 100 psi and the fuel pressure gauge attachment set. Check for leaks with the gauge set attached. (Figure 2)3. Start the engine, and let it idle.

4. Read the fuel pressure gauge.

Specifications

Condition	Specification
At Idle Speed	490-519 kPa (5.00-5.29 kgf/cm 2, 71.1-75.3 psi)

Result

If the fuel pressure is beyond the specified value, replace the fuel pressure regulator (part of the fuel tank unit) .
If the fuel pressure is below the specified value, the cause may be one of the following:
- Fuel leak
- Fuel Tank Unit/Fuel Filter Components Parts

	- Abnormal the fuel pressure regulator (part of the fuel tank unit)
	- Plugged the fuel filter (part of the fuel tank unit)
	- Abnormal the fuel pump (part of the fuel tank unit)
