DTC Advanced Diagnostics: P055C, P055D (2.0L Engine)
DTC P055C: Rocker Arm Oil Pressure Sensor Circuit Low Voltage DTC P055D: Rocker Arm Oil Pressure Sensor Circuit High Voltage
General Description
The rocker arm oil pressure sensor detects engine oil pressure in the VTEC system. When the voltage from the rocker arm oil pressure sensor is a set value for a specified time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 2 seconds or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
DTC: P055C
| Condition | ||
|---|---|---|
| Vehicle | ON mode | |
DTC: P055D
| Condition | Minimum | Maximum |
|---|---|---|
| Engine speed [Engine Speed] | - | 6, 500 rpm |
[ ]: HDS Parameter
Malfunction Threshold
DTC: P055C
The rocker arm oil pressure sensor output voltage [(Rocker Arm) Oil Pressure Sensor (B) Voltage] is 0.18 V or less for at least 2 seconds.
DTC: P055D
The rocker arm oil pressure sensor output voltage [(Rocker Arm) Oil Pressure Sensor (B) Voltage] is 4.79 V or more for at least 2.0 seconds.
Possible Cause
DTC: P055C

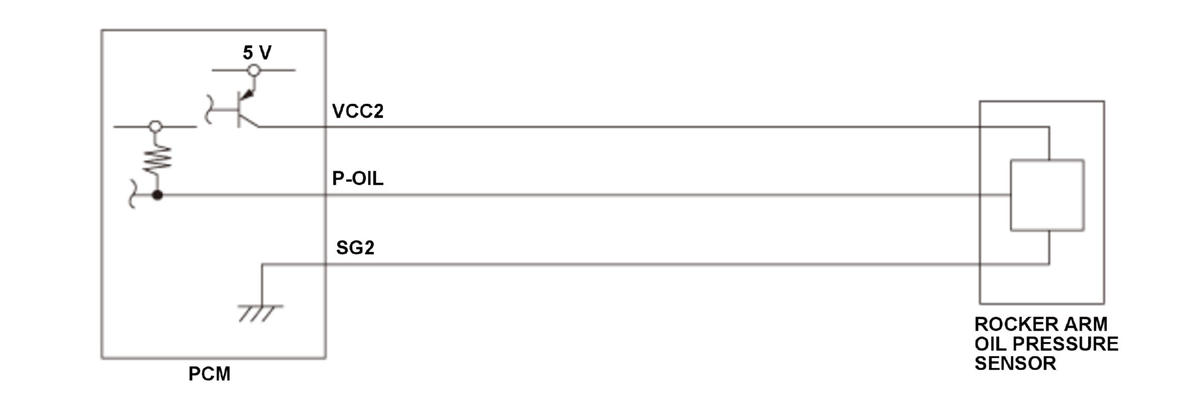

- Rocker arm oil pressure sensor VCC2 line open
- Rocker arm oil pressure sensor P-OIL line short to ground
DTC: P055D
- Rocker arm oil pressure sensor P-OIL line open
- Rocker arm oil pressure sensor SG2 line open
Common
- Rocker arm oil pressure sensor failure
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
