DTC Advanced Diagnostics: P2B08, P2B09, P2B0A, P2B0B, P2B0C, P2B0D (3.0L Engine)

DTC P2B08: No. 1 Cylinder Injector (Split injection control monitoring)DTC P2B09: No. 2 Cylinder Injector (Split injection control monitoring)DTC P2B0A: No. 3 Cylinder Injector (Split injection control monitoring)DTC P2B0B: No. 4 Cylinder Injector (Split injection control monitoring)DTC P2B0C: No. 5 Cylinder Injector (Split injection control monitoring)DTC P2B0D: No. 6 Cylinder Injector (Split injection control monitoring)

General Description

Courtesy of HONDA, U.S.A., INC.

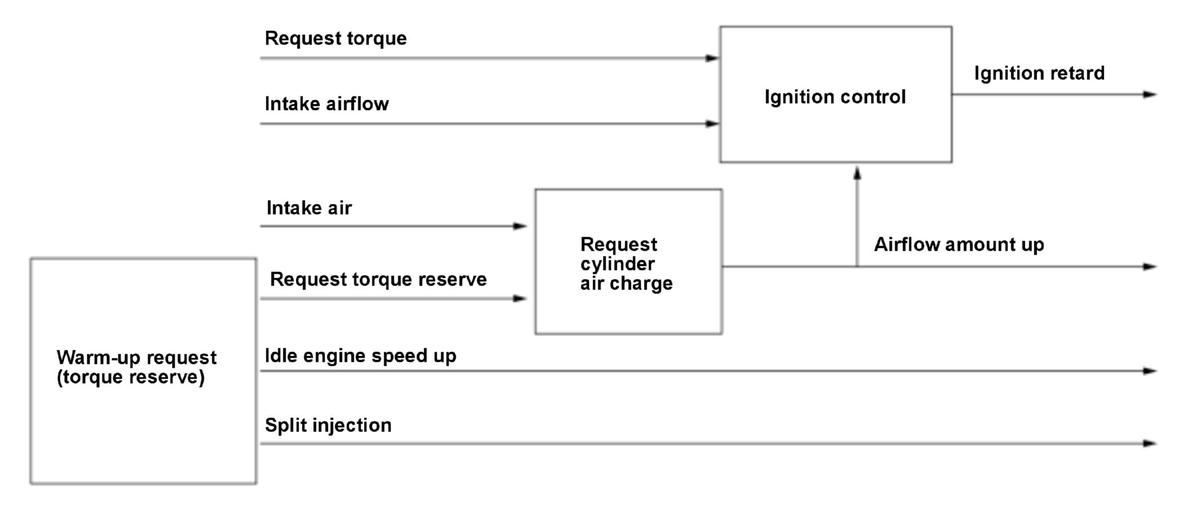

The quick warm-up system increases airflow and retards ignition timing to accelerate the warm-up of the catalyst on cold engine start. The powertrain control module (PCM) detects electrical fault of the injector during the quick warm-up. If an electrical fault is detected, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	10 seconds or more
DTC Type	Two drive cycles, MIL on

Enable Conditions

Condition	Minimum	Maximum
Elapsed time after the vehicle is turned to the ON mode	100 milliseconds	-
12 volt battery voltage [Battery]	10.0 V	-
Idle speed control	Closed loop
Quick warm-up	On

[ ]: HDS Parameter

Malfunction Threshold

The PCM detects an electrical fault of injector for at least 10 seconds during the quick warm-up.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

DTC: P2B08

No. 1 injector failure
No. 1 injector line open
No. 1 injector line short to ground
No. 1 injector line short to power
No. 5 injector line short to ground
No. 5 injector line short to power

DTC: P2B09

No. 2 injector failure
No. 2 injector line open
No. 2 injector line short to ground
No. 2 injector line short to power
No. 6 injector line short to ground
No. 6 injector line short to power

DTC: P2B0A

No. 3 injector failure
No. 3 injector line open
No. 3 injector line short to ground
No. 3 injector line short to power
No. 4 injector line short to ground
No. 4 injector line short to power

DTC: P2B0B

No. 4 injector failure
No. 4 injector line open
No. 4 injector line short to ground
No. 4 injector line short to power
No. 3 injector line short to ground
No. 3 injector line short to power

DTC: P2B0C

No. 5 injector failure
No. 5 injector line open
No. 5 injector line short to ground
No. 5 injector line short to power
No. 1 injector line short to ground
No. 1 injector line short to power

DTC: P2B0D

No. 6 injector failure
No. 6 injector line open
No. 6 injector line short to ground
No. 6 injector line short to power
No. 2 injector line short to ground
No. 2 injector line short to power

Common

Injector relay failure
PCM internal circuit failure

Confirmation Procedure

Operating Condition

Start the engine at the engine coolant temperature [ECT Sensor 1] 14 deg.F (-10 deg.C) - 122 deg.F (50 deg.C).

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
