DTC Troubleshooting: P00FE(3.0L Engine): Inspection
Fuel Tank Vapor Control Valve Inspection (Blockage)
Test Procedure
- Procedure
-
- Insert the emergency fuel funnel to the fuel filler neck.NOTE: The emergency fuel funnel is stored in the tool box.

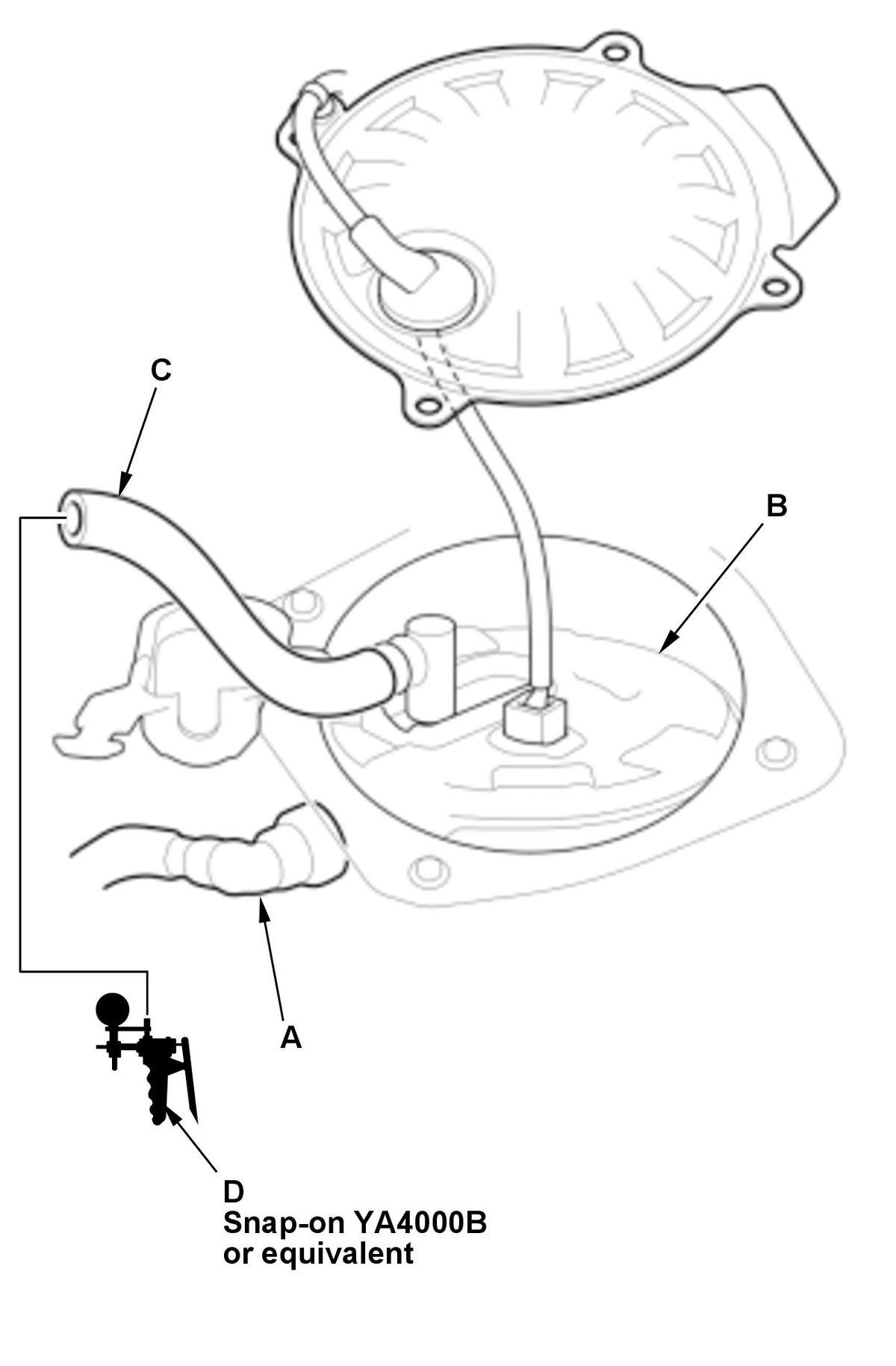

- Disconnect the fuel vent tube (A) from the secondary fuel gauge sending unit (B).
- Connect the hose (C) to the secondary fuel gauge sending unit, then connect the vacuum pump/gauge, 0-30 inHg (D) to the hose as shown.
- Apply pressure to the hose.
- Insert the emergency fuel funnel to the fuel filler neck.
- Normal Conditions
-
- Pressure is not held.
Results
- If it is abnormal, there is a problem with the fuel tank.
Fuel Vent Tube Inspection (Blockage)
Test Procedure
- Procedure
-

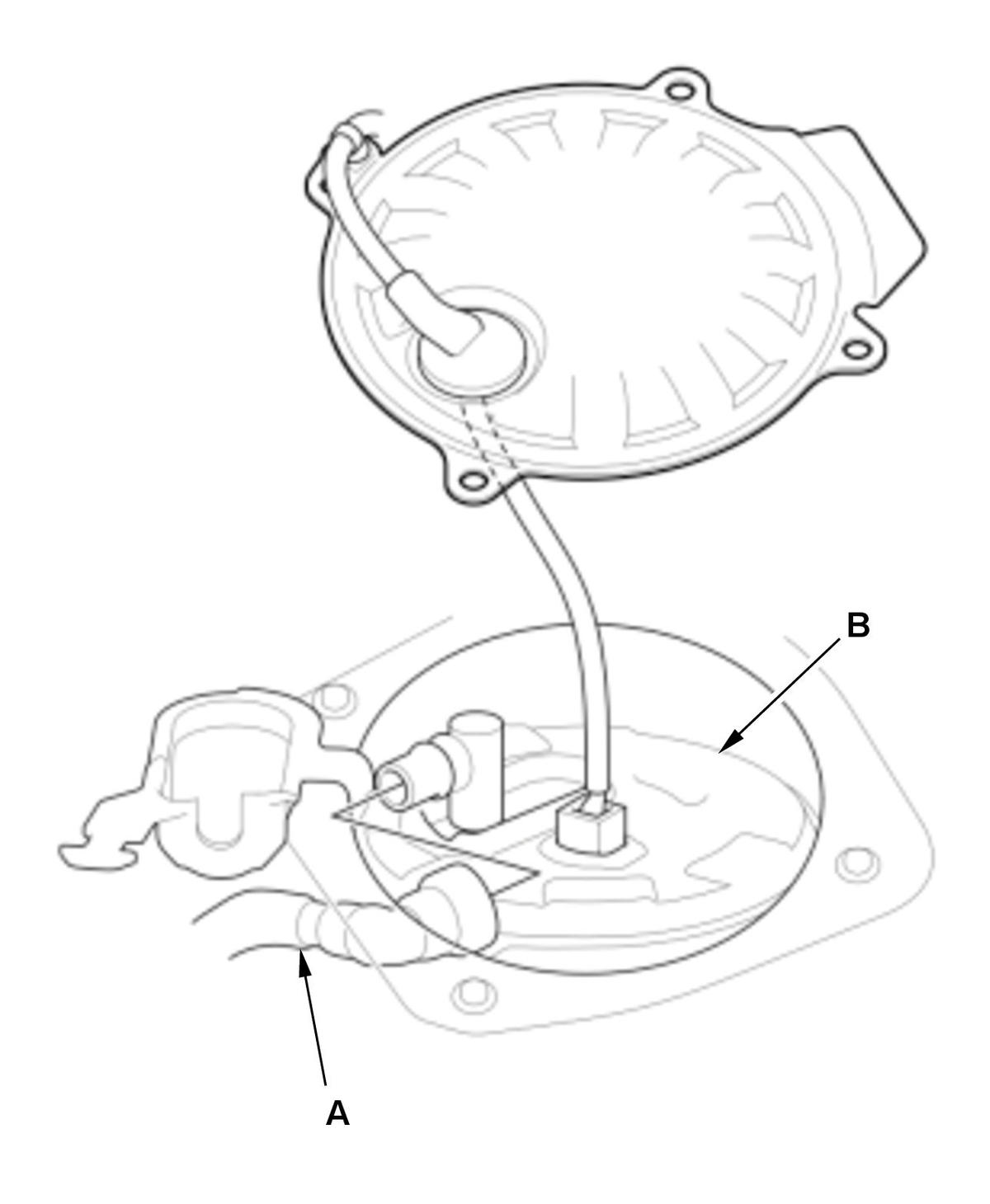

- Disconnect the fuel vent tube (A) from the secondary fuel gauge sending unit (B).

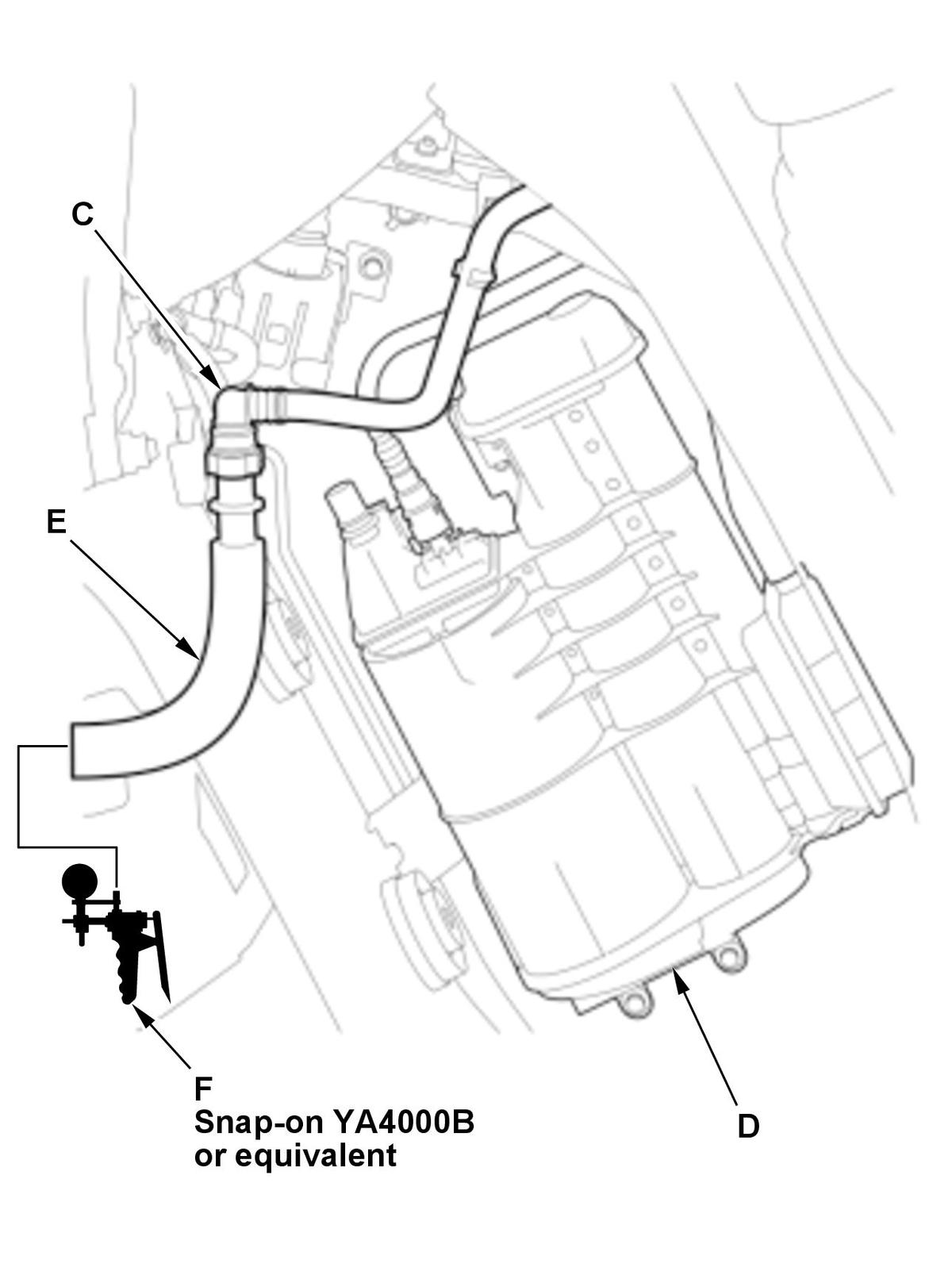

- Disconnect the fuel vent tube (C) from the EVAP canister (D).
- Connect the hose (E) to the fuel vent tube, then connect the vacuum pump/gauge, 0-30 inHg (F) to the hose as shown.
- Apply pressure to the hose.
- Normal Conditions
-
- -
Pressure is not held.
- -
Results
- If it is abnormal, there is a problem with the fuel vent tube.
EVAP Canister Inspection (Blockage)
Test Procedure
- Procedure
-

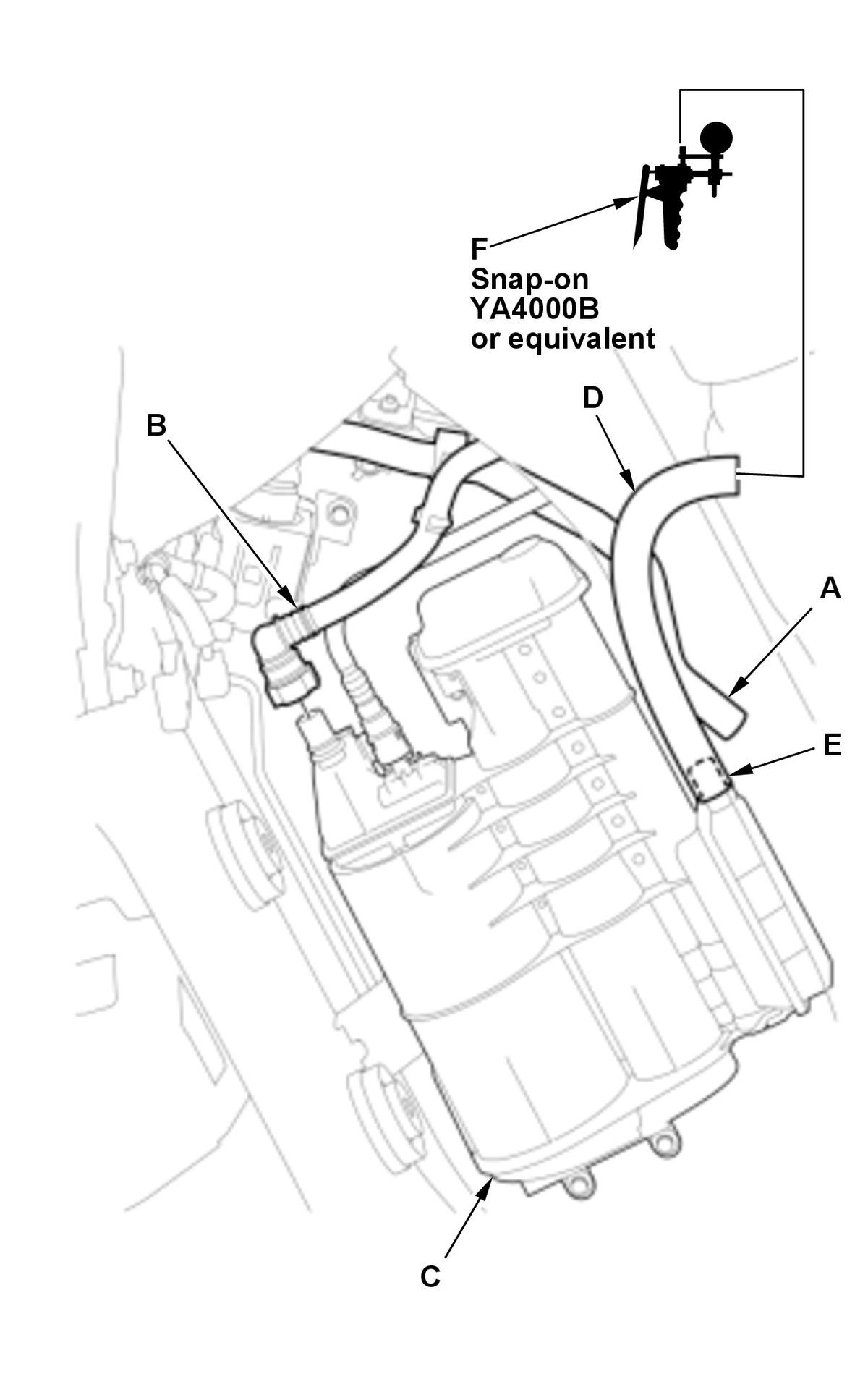

- Disconnect the fuel vent tube (B) and drain tube A from the EVAP canister (C).
- Connect the hose (D) to the drain tube A port (E), then connect the vacuum pump/gauge, 0-30 inHg (F) to the hose as shown.
- Apply pressure to the hose.
- Normal Conditions
-
- Pressure is not held.
Results
- If it is abnormal, there is a problem with the EVAP canister.
Drain Tube A Visual Inspection (Blockage)
Test Procedure
- Preparation
-
- Drain tube A: removed
- Procedure
-
- Check the blockage, restriction, or damage at drain tube A.
- Normal Conditions
-
- There is no blockage, restriction, or damage.
Results
- If it is abnormal, there is a problem with drain tube A.
EVAP Leak Check Module Inspection
Test Procedure
- If the other inspection item(s) indicated a normal condition, then it is determined that the remaining EVAP leak check module is the cause.
Results
- There is a problem with the EVAP leak check module.
