DTC Troubleshooting: P0107(3.0L Engine): Inspection

MAP Sensor Inspection

Test Procedure

• Preparation
• • MAP Sensor 3P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

			(Disconnected)MAP sensor 3P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Unit output voltage inspection	ON		About 5.0 V
		ON		About 5.0 V

Results

• If it is normal, there is a problem with the MAP sensor.
• If it is abnormal, there is a problem with other related components.

VCC1, PB Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • MAP sensor 3P connector: disconnected
  • PCM connector E (114P): disconnected
• Procedure
• • Perform the inspection according to the following table.

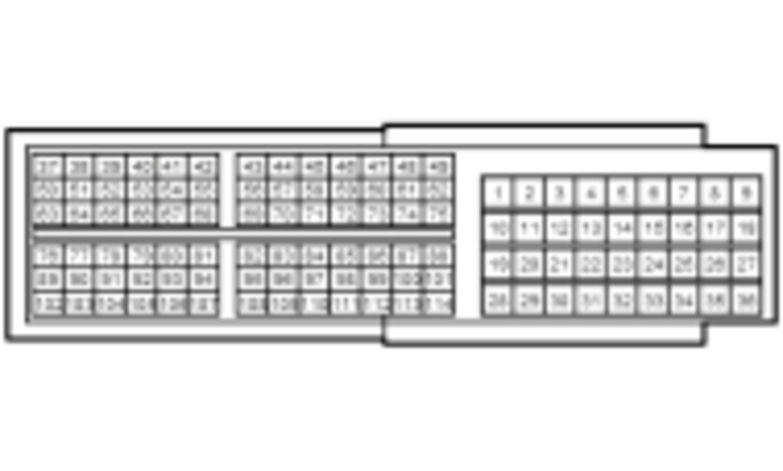

			(Disconnected)MAP sensor 3P connectorfemale terminals	(Disconnected) PCM connector E (114P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VCC1 open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	PB shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
