Inspection Outline

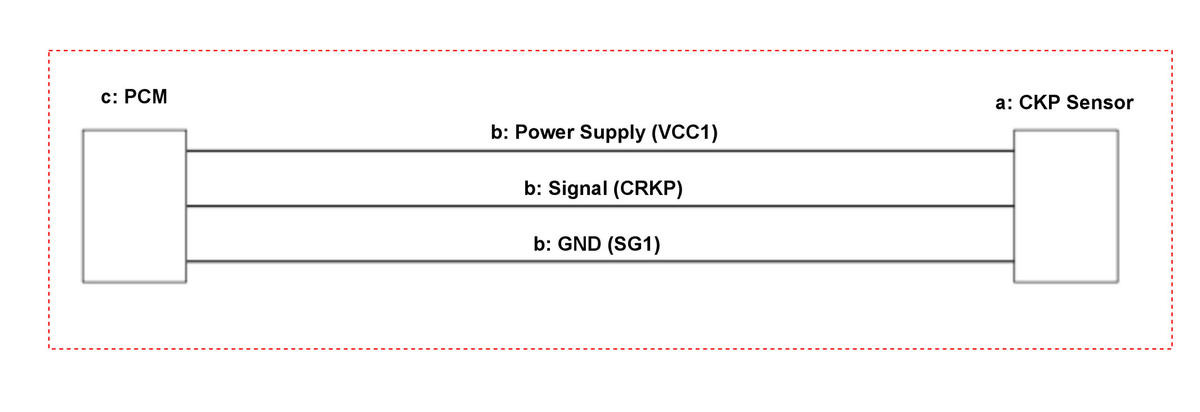

- The components to be tested are indicated by a dotted line.
 Courtesy of HONDA, U.S.A., INC.
|
| Inspection Items |
Work Items |
| a |
CKP Sensor |
CKP Sensor Inspection |
| b |
External Circuit |
VCC1, CRKP, SG1 Circuit Inspection |
| c |
PCM |
PCM Inspection |
