Inspection Outline

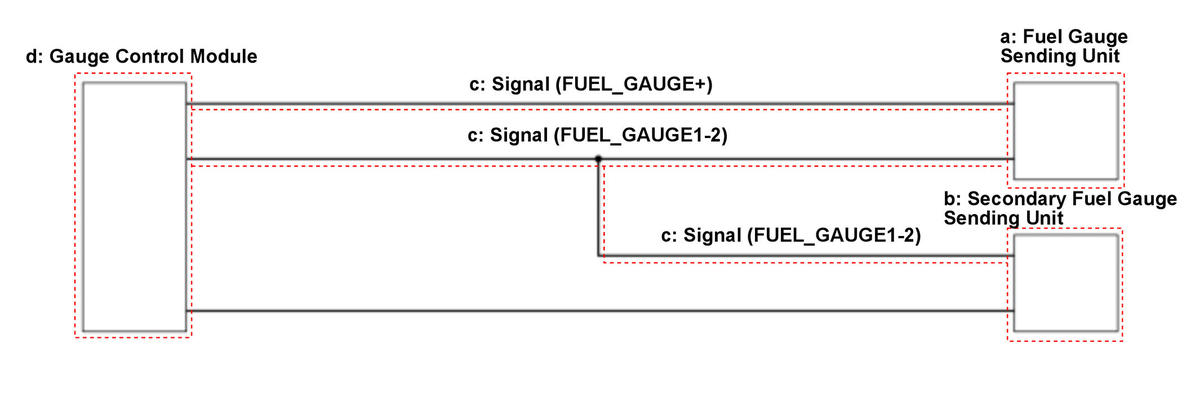

GHH560115Courtesy of HONDA, U.S.A., INC.
Inspection Items Work Items
a Fuel Gauge Sending Unit Do the Fuel Gauge Sending Unit Test
b Secondary Fuel Gauge Sending Unit Do the Secondary Fuel Gauge Sending Unit Test
c External Circuit FUEL_GAUGE1-2, FUEL_GAUGE+ Circuit Inspection
d Gauge Control Module Gauge Control Module Inspection
