Inspection Outline

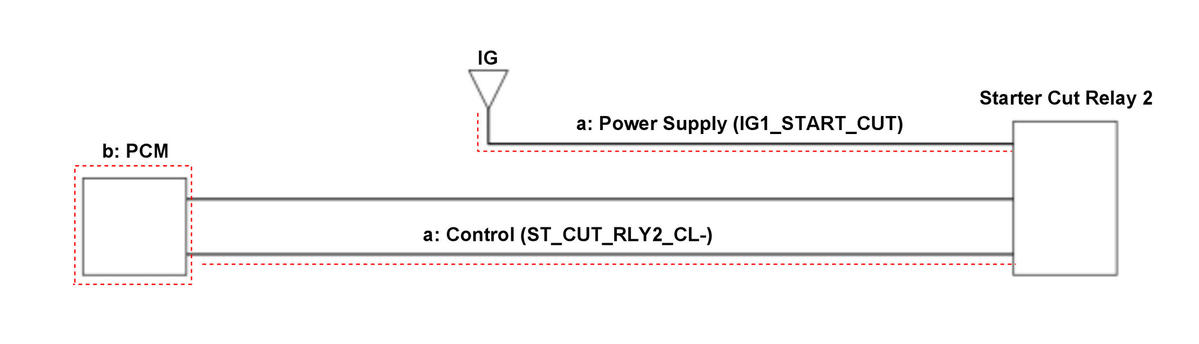

- The components to be tested are indicated by a dotted line.
NOTE:
For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.
- Does the engine start?
-
- YES:
- NO:
- YES:
| Inspection Items | Work Items | |||
|---|---|---|---|---|
| a | External Circuit | IG1_START_CUT, ST_CUT_RLY2_CL- Circuit Inspection | o | o |
| b | PCM | |||
