Engine Control System - DTC Diagnostics (5 Of 6)
>>
Troubleshooting
>>
DTC Troubleshooting: P2123 (2.0L Engine)
>>
Inspection Outline
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Inspection Outline

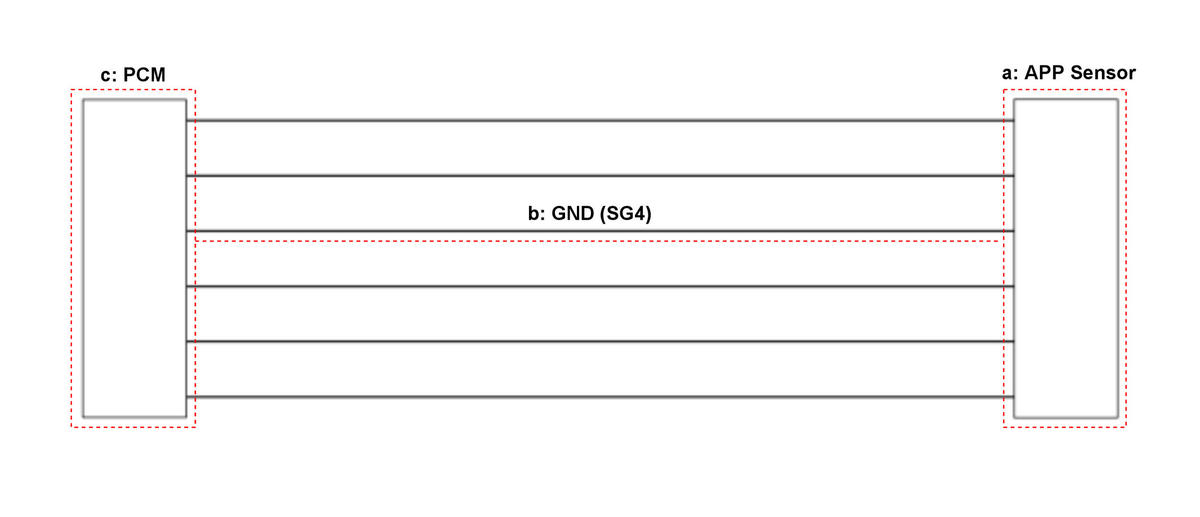

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
APP Sensor
APP Sensor Inspection
b
External Circuit
SG4 Open Wire Inspection
c
PCM
PCM Inspection
Courtesy of HONDA, U.S.A., INC.
