DTC Troubleshooting: P24BD (3.0L Engine): Inspection

Canister Change Over Valve Component Inspection

Test Procedure

• Preparation
• • EVAP leak check module 8P connector: disconnected
• Procedure
• • Perform the inspection according to the following table

    .

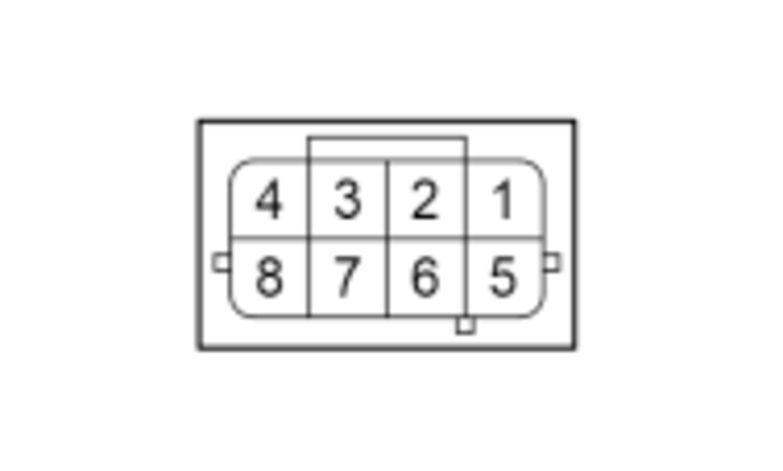

			(Disconnected) EVAP leak check module 8P connector male terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Valve internal circuit inspection	OFF		About 25 - 30 Ohm (at room temperature)

Results

• If it is abnormal, there is a problem with EVAP leak check module.

IGPS_PCS [IGPS (LAF)] Open Wire Inspection

Test Procedure

• Preparation
• • EVAP leak check module 8P connector: disconnected
  • Power distribution module connector A (18P): disconnected
• Procedure
• • Perform the inspection according to the following table.

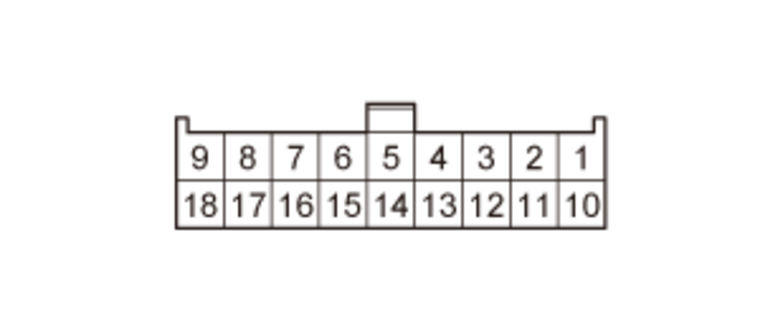

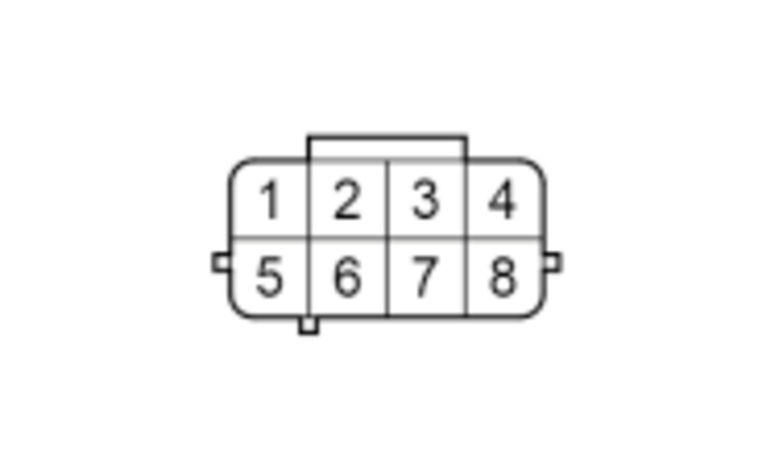

			(Disconnected) EVAP leak check module 8P connector female terminals	(Disconnected) Power distribution module connector A (18P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	IGPS_PCS [IGPS (LAF)] open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

IGPS_PCS [IGPS (LAF)] Shorted Wire Inspection

Test Procedure

• Preparation
• • EVAP leak check module 8P connector: disconnected
  • Rear A/F sensor (Bank 1, Sensor 1) 4P connector: disconnected
  • Front A/F sensor (Bank 2, Sensor 1) 4P connector: disconnected
  • Power distribution module connector A (18P): disconnected
  • EVAP canister purge valve 2P connector: disconnected
  • Turbocharger bypass control solenoid valve 2P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

    Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.

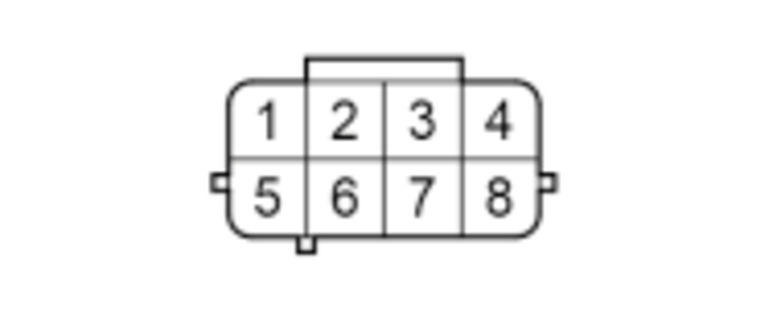

			(Disconnected) EVAP leak check module 8P connector female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	IGPS_PCS [IGPS (LAF)] shorted to ground inspection	OFF		Not shorted

Results

• If abnormal, there is a problem in the circuit.

+B_F/M3 Circuit Inspection

Test Procedure

• Preparation
• • Power distribution module connector E (2P): disconnected
• Procedure
• • Perform the inspection according to the following table.

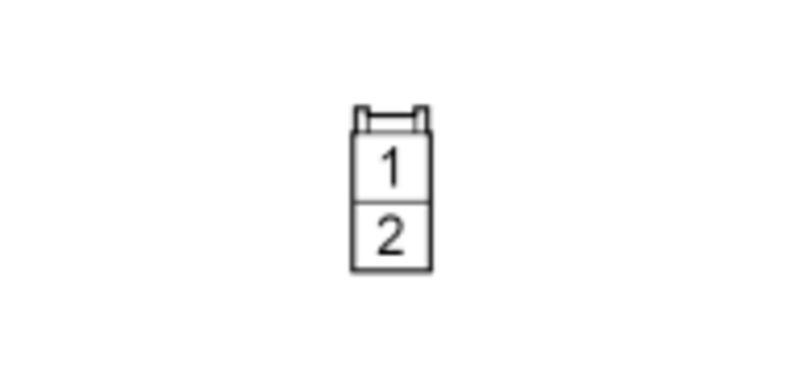

			(Disconnected) Power distribution module connector E (2P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	+B_F/M3 circuit inspection	OFF		12 V battery voltage [circuit type 1]

Results

• If it is abnormal, there is a problem in the circuit.

  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

FI_SUB_RLY_CL- Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • Power distribution module connector A (18P): disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table

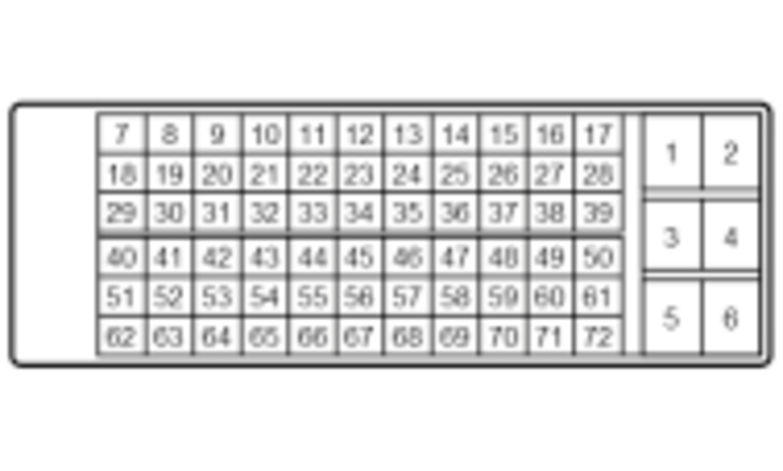

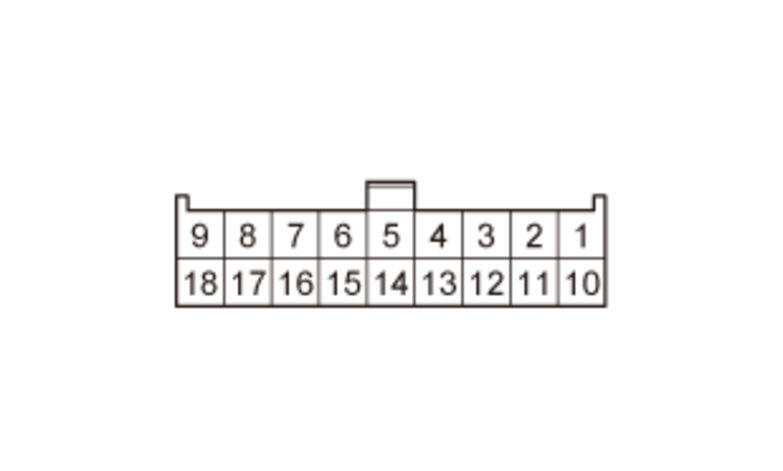

			(Disconnected) Power distribution module connector A (18P) female terminals	(Disconnected)PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs (3.0L Engine) or PCM Connector for Inputs and Outputs (2.0L Engine) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	FI_SUB_RLY_CL- open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	FI_SUB_RLY_CL- shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

CCV_GND Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • -

    EVAP leak check module 8P connector: disconnected

  • -

    PCM connector B (72P): disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

			(Disconnected) EVAP leak check module 8P connector female terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs (3.0L Engine) or PCM Connector for Inputs and Outputs (2.0L Engine) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	CCV_GND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

Power Distribution Module Inspection

Test Procedure

• Install a known-good power distribution module and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the power distribution module must be faulty.

PCM Inspection

Test Procedure

• If the other inspection item (s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
