Exploded View

For replacement of components listed below, see Repair Procedure .

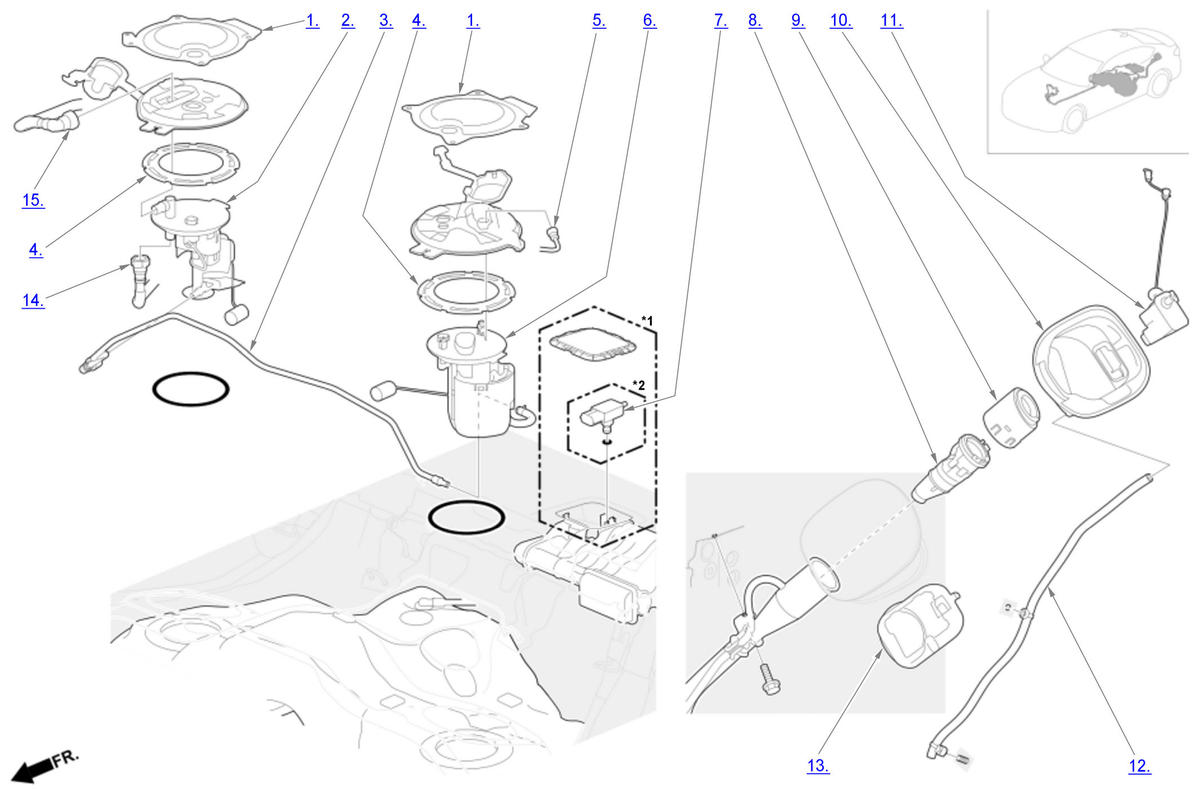

GHH561687Courtesy of HONDA, U.S.A., INC.
*1: With AWD

*2: 2.0 L Engine

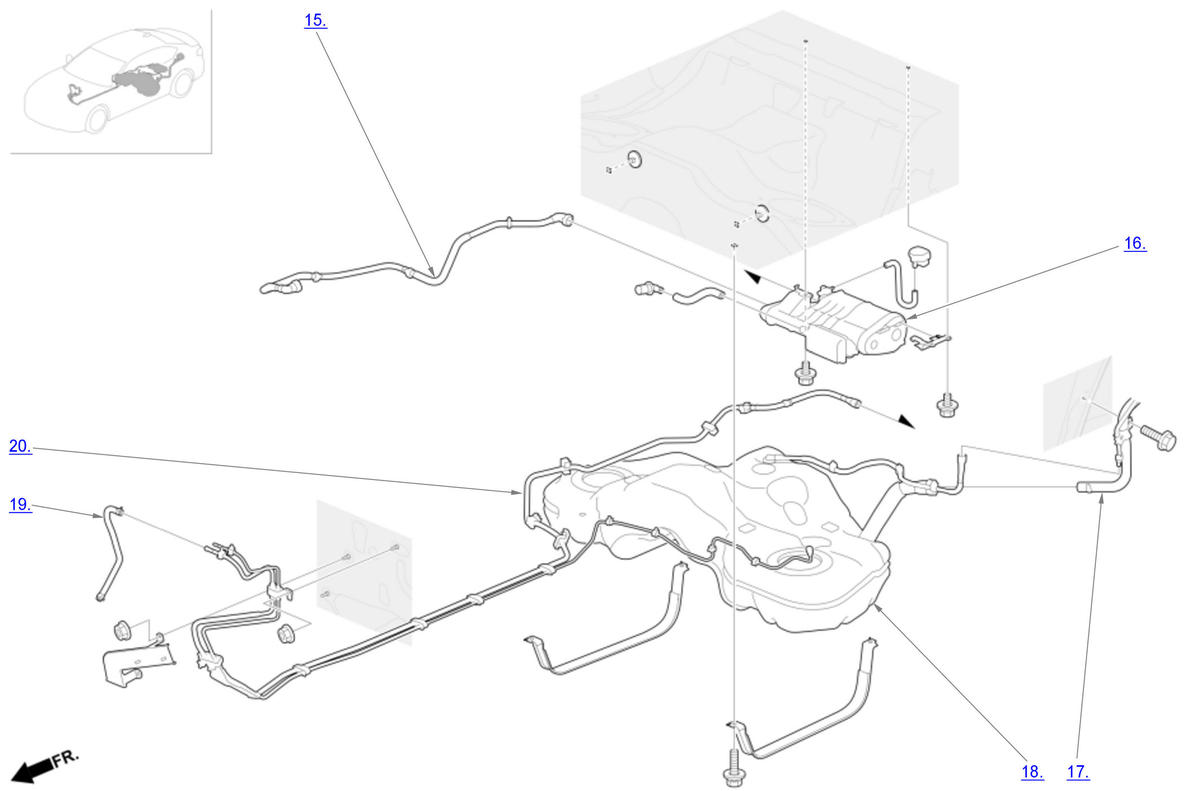

2.0 L Engine

GHH561688Courtesy of HONDA, U.S.A., INC.

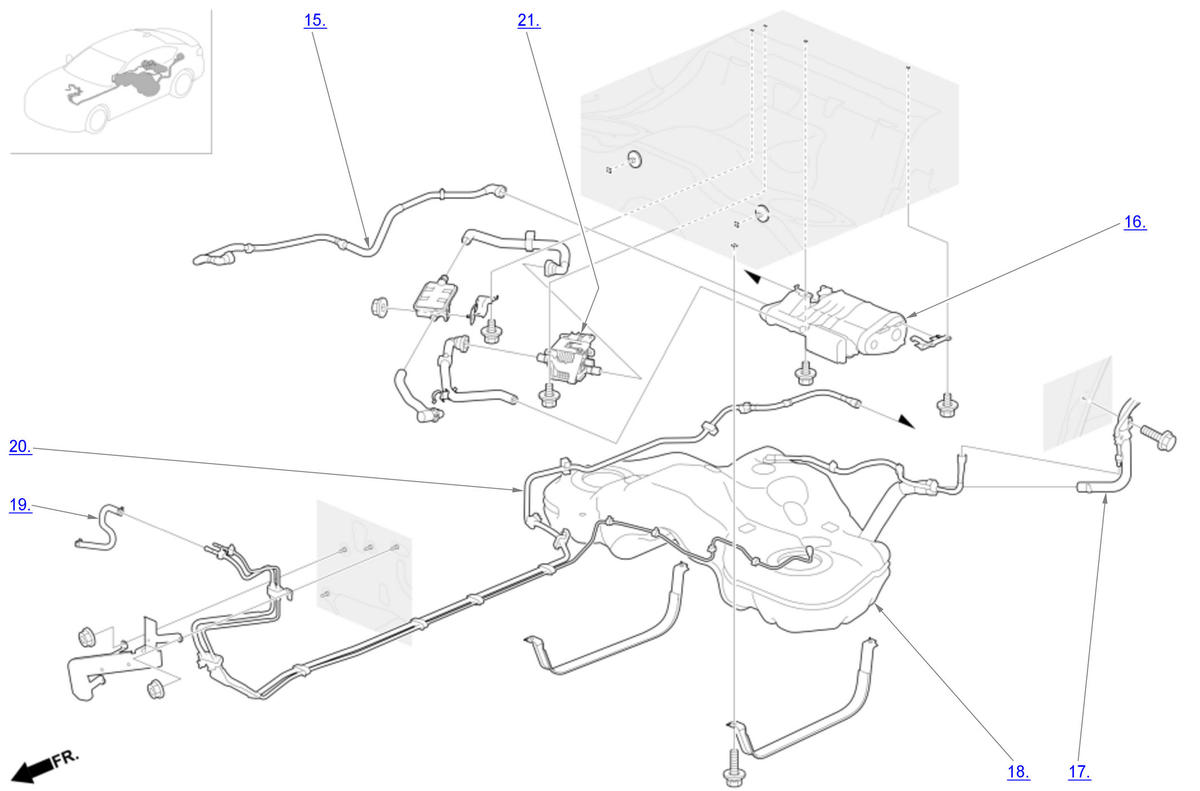

3.0 L Engine

GHH561689Courtesy of HONDA, U.S.A., INC.

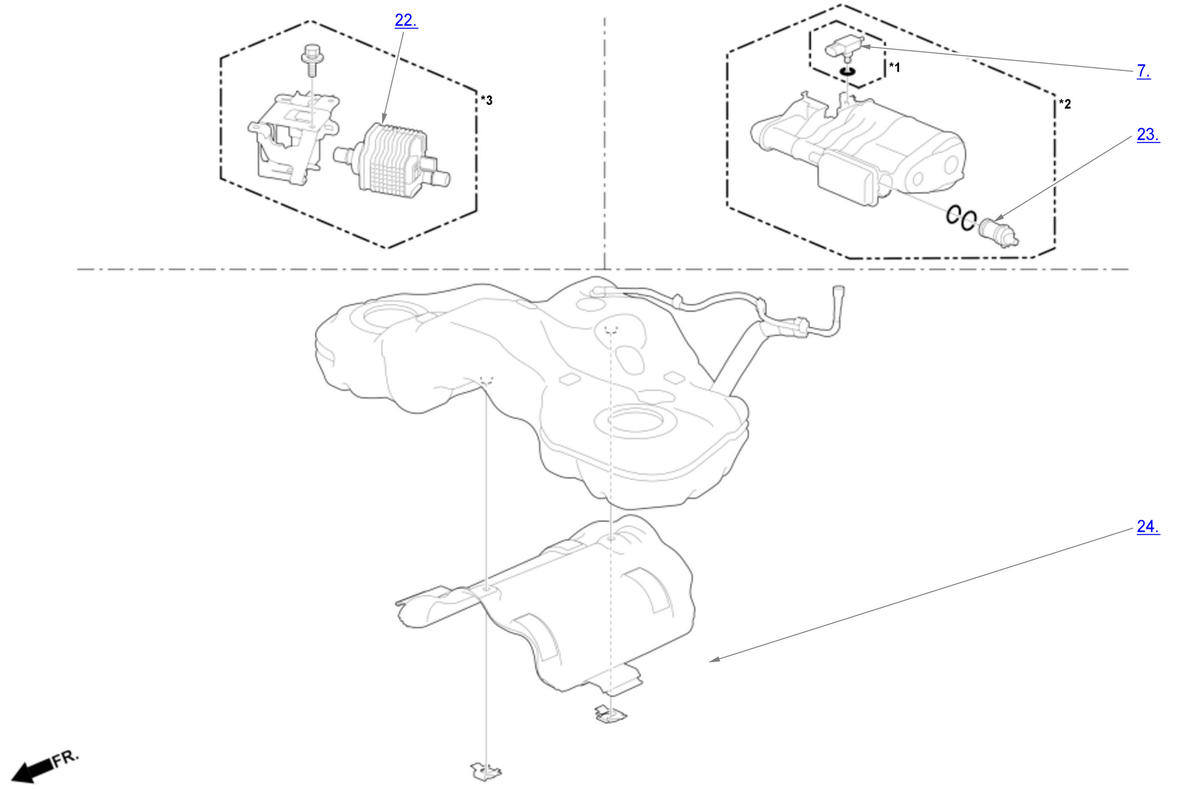

GHH561690Courtesy of HONDA, U.S.A., INC.
*1: Without AWD

*2: 2.0 L Engine

*3: 3.0 L Engine

Fuel Tank Area Components

Component Name Callout
Access Panel 1
Secondary Fuel Gauge Sending Unit 2
Transfer Tube 3
Fuel Tank Unit Cam Lock Ring 4
Fuel Feed Pipe 5
Fuel Tank Unit 6
Fuel Tank Pressure (FTP) Sensor 7
Fuel Main Flap Unit/Fuel Filler Flow Guide Assembly 8
Mis-Fuel Inhibit Device 9
Fuel Fill Door Adapter 10
Fuel Fill Door Lock Actuator 11
Fuel Adapter Drain Tube 12
Fuel Lid Cover 13
Inner Fuel Vent Tube 14
Fuel Vent Tube 15
Evaporative Emission (EVAP) Canister Assembly 16
Fuel Fill Pipe 17
Fuel Tank Assembly 18
Fuel Purge Hose 19
Fuel Purge Pipe 20
EVAP Leak Check Module Assembly 21
EVAP Leak Check Module 22
Evaporative Emission (EVAP) Canister Vent Shut Valve 23
Fuel Tank Protector 24
