Blind Spot Information (BSI) System Component Location Index (Without Integrated Driver Support System (Camera and Five Radars)) (2025)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

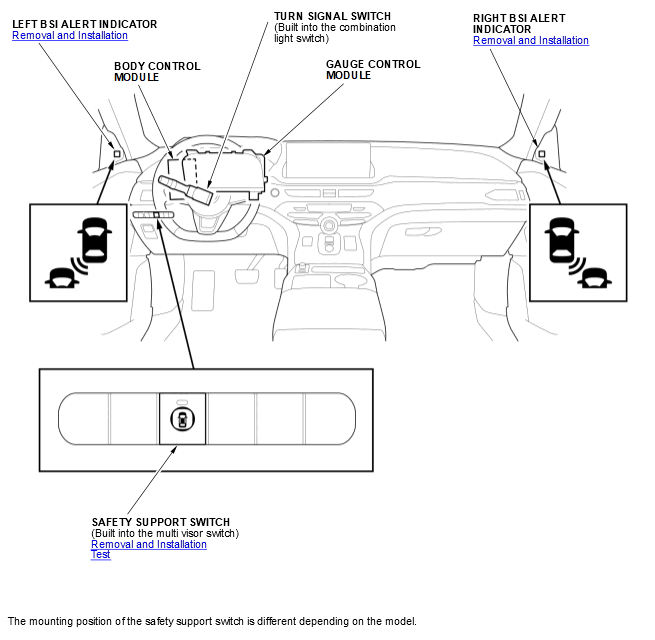

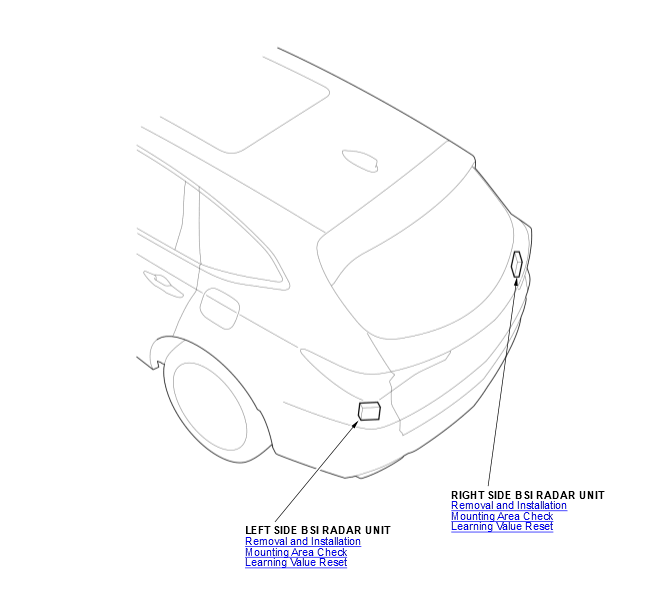

Blind Spot Information (BSI) System Component Location Index (Without Integrated Driver Support System (Camera and Five Radars)) (2025)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
