Multi View Camera Unit Connector for Inputs and Outputs (2025)
| Connector Index |
| Multi View Camera Unit Connector A (24P) |
| Multi View Camera Unit Connector B (3P) |
| Multi View Camera Unit Connector C (5P) |
| Multi View Camera Unit Connector D (5P) |
| Multi View Camera Unit Connector E (5P) |
| Multi View Camera Unit Connector F (5P) |

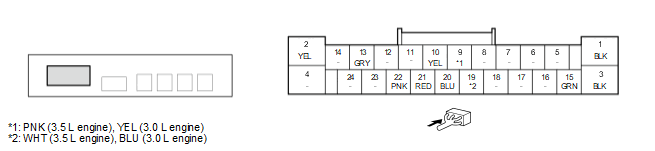

Multi View Camera Unit Connector A (24P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
GND |
Ground circuit for the multi view camera unit |
| 2 |
+B_AUDIO (VST) |
Power supply for the multi view camera unit |
| 3 |
GND |
Ground circuit for the multi view camera unit |
| 4 |
Not used |
--- |
| 5 |
Not used |
--- |
| 6 |
Not used |
--- |
| 7 |
Not used |
--- |
| 8 |
Not used |
--- |
| 9 |
AF-CAN B_L |
F-CAN communication (low) circuit |
| 10 |
BB-CAN_L |
B-CAN communication (low) circuit |
| 11 |
Not used |
--- |
| 12 |
Not used |
--- |
| 13 |
IG1_METER (VST) |
Detects IG1 power signal |
| 14 |
Not used |
--- |
| 15 |
MVS_CHK |
Connection check signal for center display unit |
| 16 |
Not used |
--- |
| 17 |
Not used |
--- |
| 18 |
Not used |
--- |
| 19 |
AF-CAN B_H |
F-CAN communication (high) circuit |
| 20 |
BB-CAN_H |
B-CAN communication (high) circuit |
| 21 |
MVS_SW |
Detects multi view camera switch signal |
| 22 |
MVS_VID_SW |
Multi view camera visual switching signal |
| 23 |
Not used |
--- |
| 24 |
Not used |
--- |

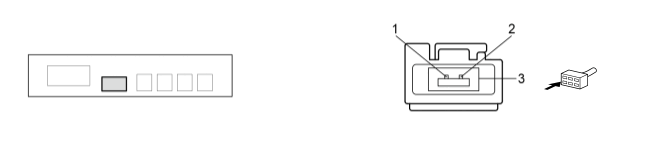

Multi View Camera Unit Connector B (3P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
LVDS+ |
Video signal for the multi view camera |
| 2 |
LVDS- |
Video signal for the multi view camera |
| 3 |
LVDS SH |
Shield for terminal No. 1 and No. 2 |

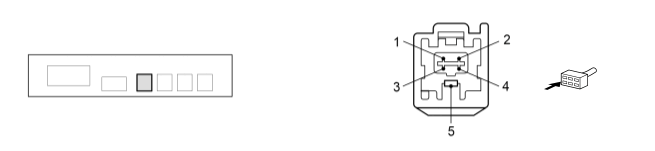

Multi View Camera Unit Connector C (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
FR_POWER_GND |
Ground circuit for multi view front camera |
| 2 |
FR_POWER |
Power source for multi view front camera |
| 3 |
FR_D+ |
Video signal for multi view front camera |
| 4 |
FR_D- |
Video signal for multi view front camera |
| 5 |
FR_SHGND |
Shield for terminal No. 1, No. 2, No. 3, and No. 4 |

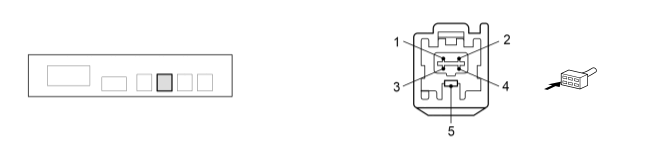

Multi View Camera Unit Connector D (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
SL_POWER_GND |
Ground circuit for multi view left side camera |
| 2 |
SL_POWER |
Power source for multi view left side camera |
| 3 |
SL_D+ |
Video signal for multi view left side camera |
| 4 |
SL_D- |
Video signal for multi view left side camera |
| 5 |
SL_SHGND |
Shield for terminal No. 1, No. 2, No. 3, and No. 4 |

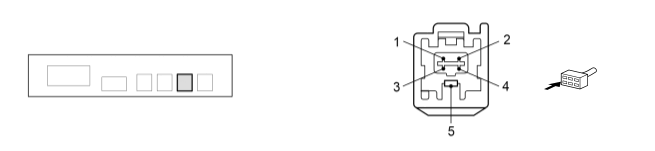

Multi View Camera Unit Connector E (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
SR_POWER_GND |
Ground circuit for multi view right side camera |
| 2 |
SR_POWER |
Power source for multi view right side camera |
| 3 |
SR_D+ |
Video signal for multi view right side camera |
| 4 |
SR_D- |
Video signal for multi view right side camera |
| 5 |
SR_SHGND |
Shield for terminal No. 1, No. 2, No. 3, and No. 4 |

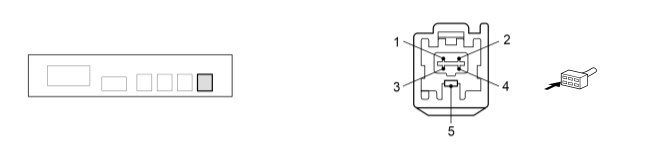

Multi View Camera Unit Connector F (5P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
RR_POWER_GND |
Ground circuit for rear view camera |
| 2 |
RR_POWER |
Power source for rear view camera |
| 3 |
RR_D+ |
Video signal for rear view camera |
| 4 |
RR_D- |
Video signal for rear view camera |
| 5 |
RR_SHGND |
Shield for terminal No. 1, No. 2, No. 3, and No. 4 |
